XXL Concrete Pump & Mixer Truck Washout Pan: 84"x84"x14", 271 Gal
OSHA Lift Compliant, Load Tested 36,500 lbs
XXL Concrete Pump & Mixer Truck Washout Pan: 84"x84"x14", 271 Gal - OSHA Lift Compliant, Load Tested 36,500 lbs
Please click here to download the load test certificates and safety information
DURAPAN Safety Specs 300
Load Test Certificate
County of origin: North America
Warranty: Lifetime
Dimensions: 84 x 84 x 14"
Actual height: 14"
Liquid and solid volume:
271 Gallon capacity
1,084 US Liquid quart
36.2 Cubic foot
1,025 Liter
Approximate tare weight: 930 lbs
ASTM material grades:
Plate A36
Pad eye plate A572 Gr. 50
Pad eye hole size 1 1/8"
Channel: A36
Angle: A36
Weld: AWS E70XX
Lifting links: OSHA compliant Crosby and Pewag overhead rated lifting links

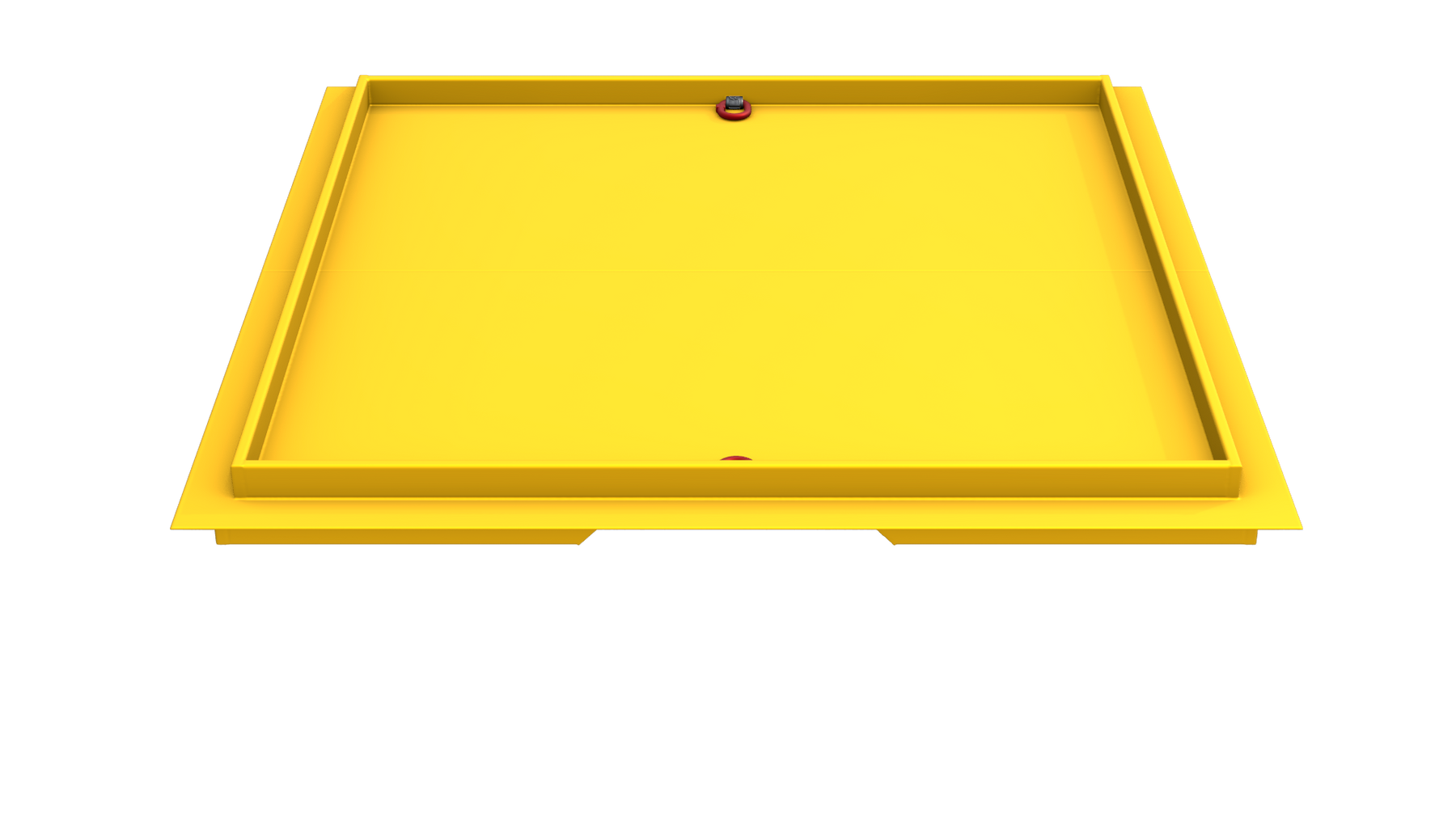

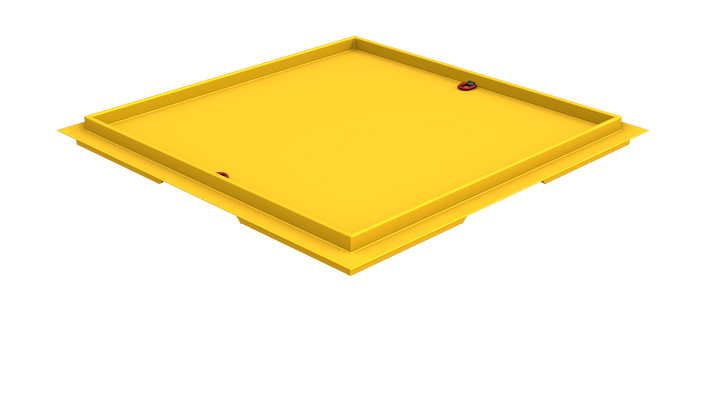

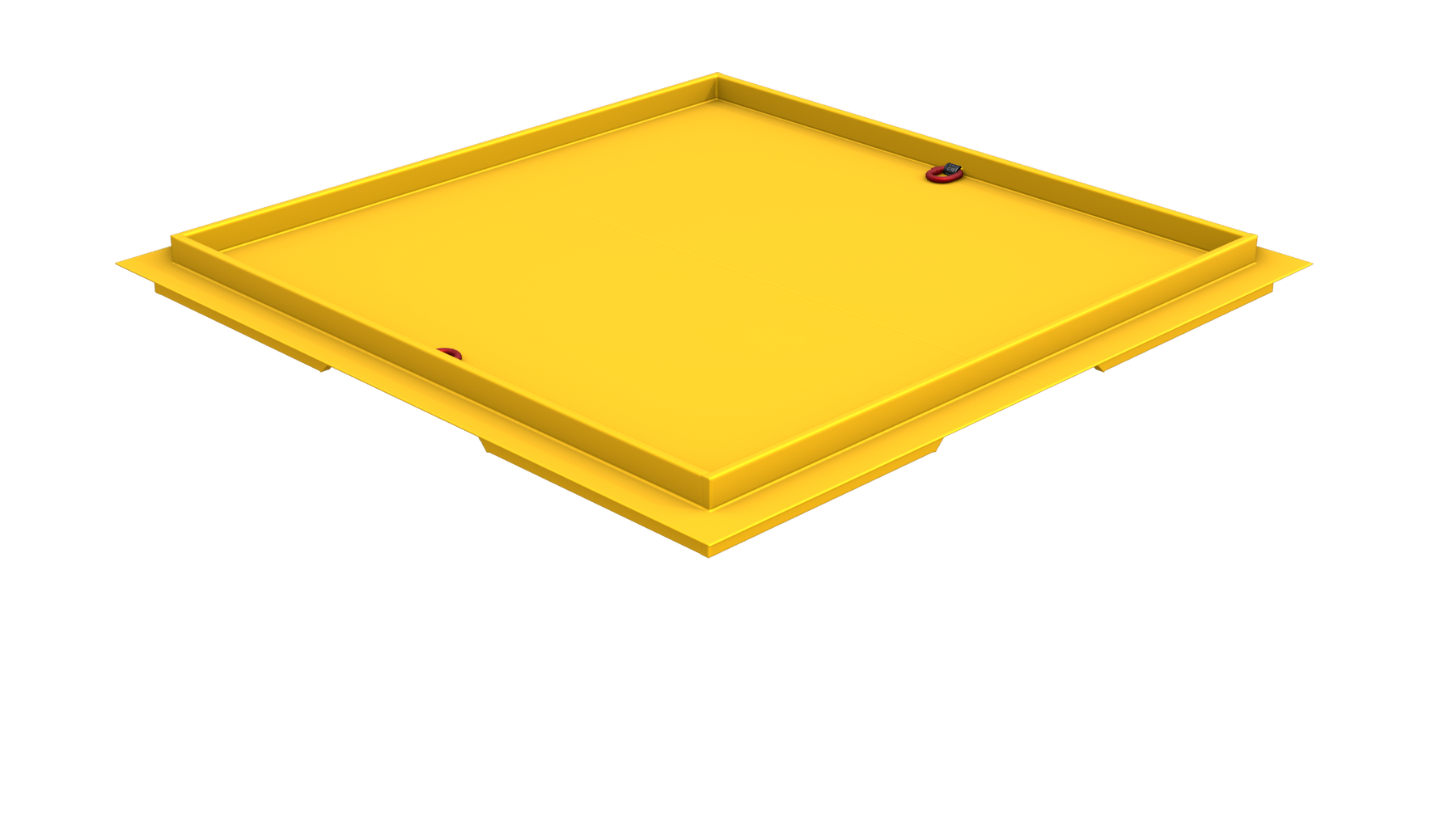

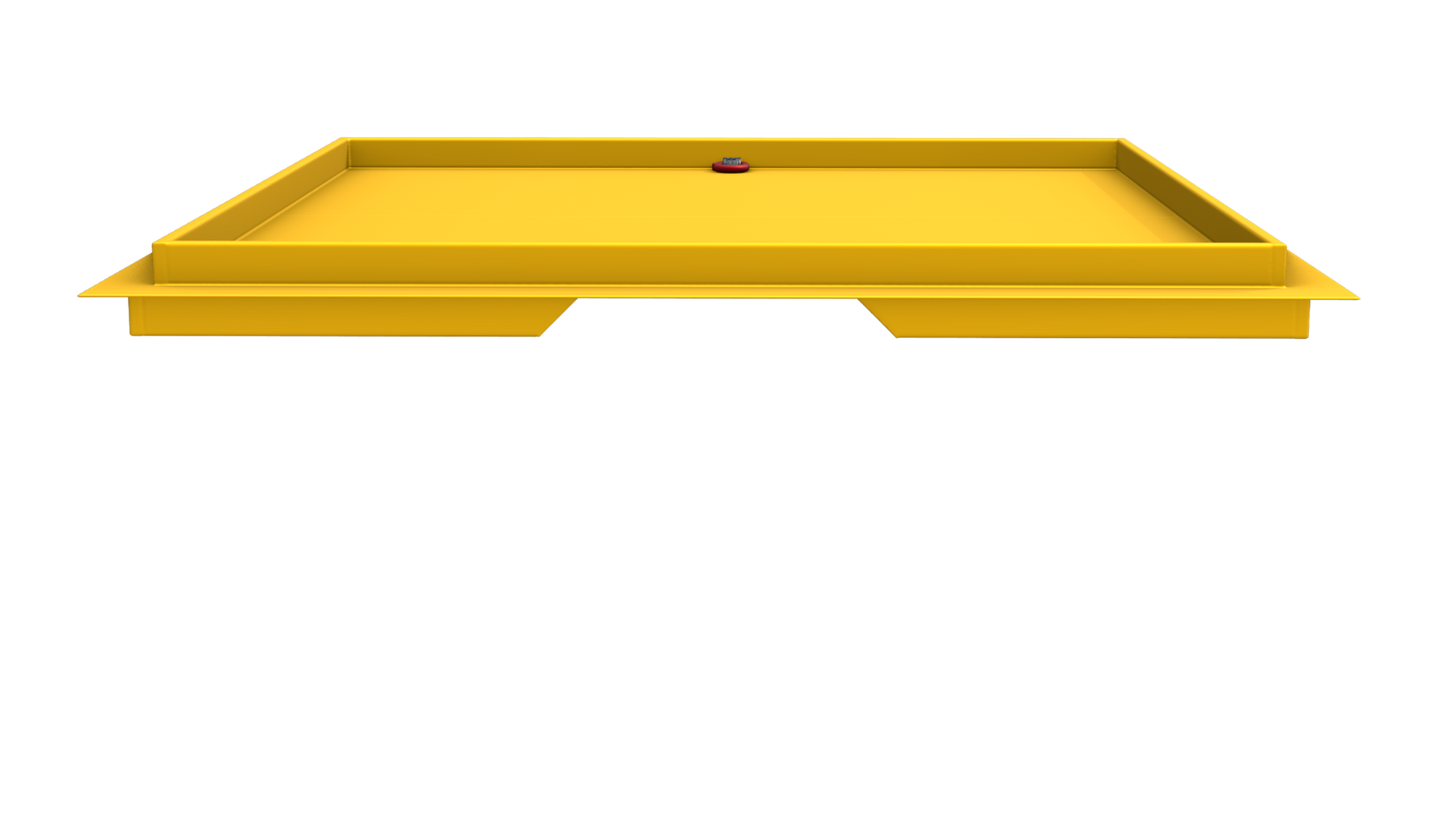

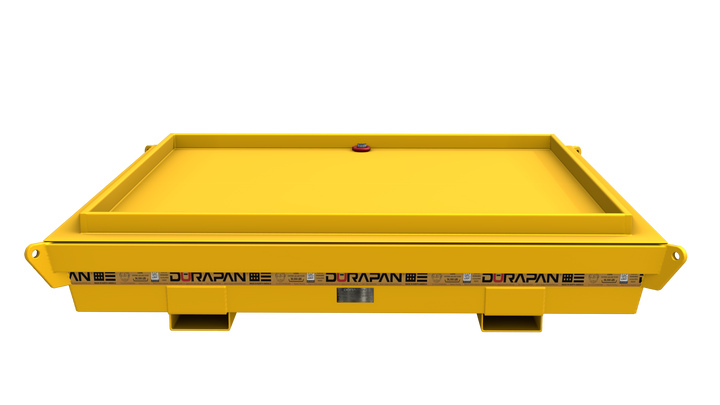

Optional watertight rain lid

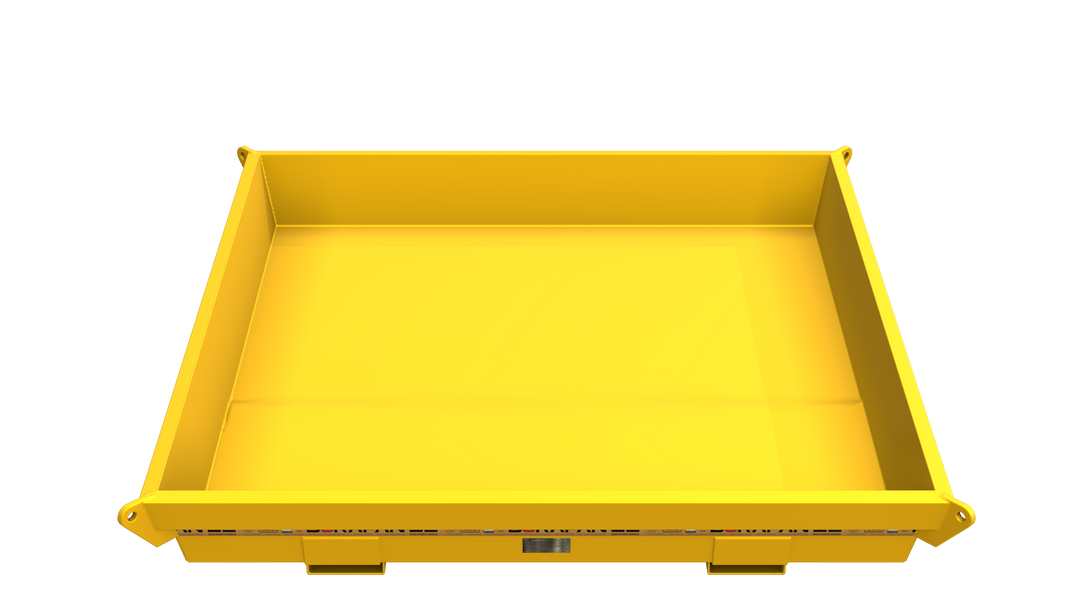

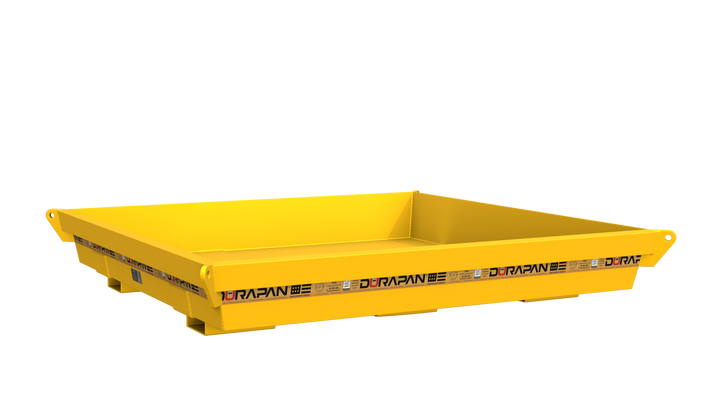

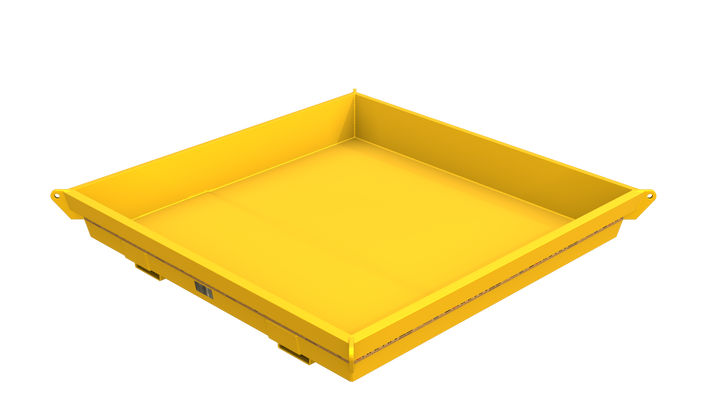

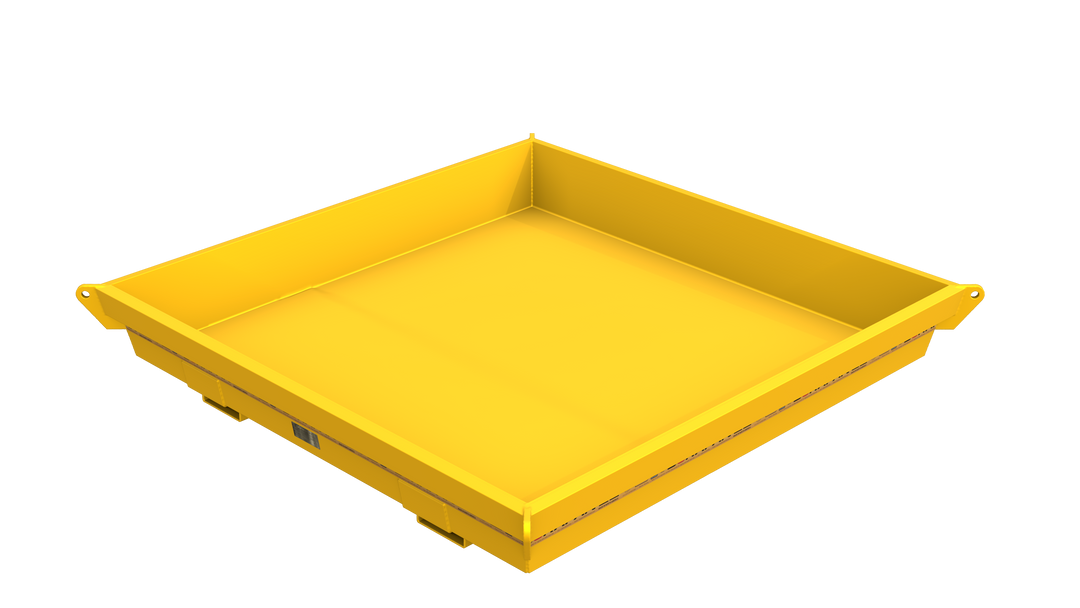

The DURAPAN® 300 is designed to meet the demanding needs of construction professionals with the same exceptional strength and durability you've come to expect from our products. Its low-profile 14" tall design allows it to fit seamlessly under concrete pump trucks, making it the perfect containment solution for your projects.
Inter-stackable Design
Our innovative inter-stackable feature allows for easy and efficient storage, transport, and handling of multiple pans, maximizing space and convenience on the job site.
Watertight Construction
The DURAPAN® SUPER HEAVY LIFT CRANE SERIES OSHA 300 is watertight, ensuring containment and prevention of leaks or spills, protecting your job site and the environment.

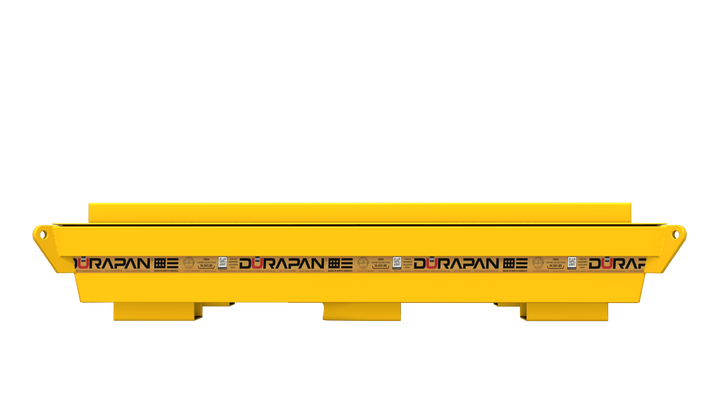

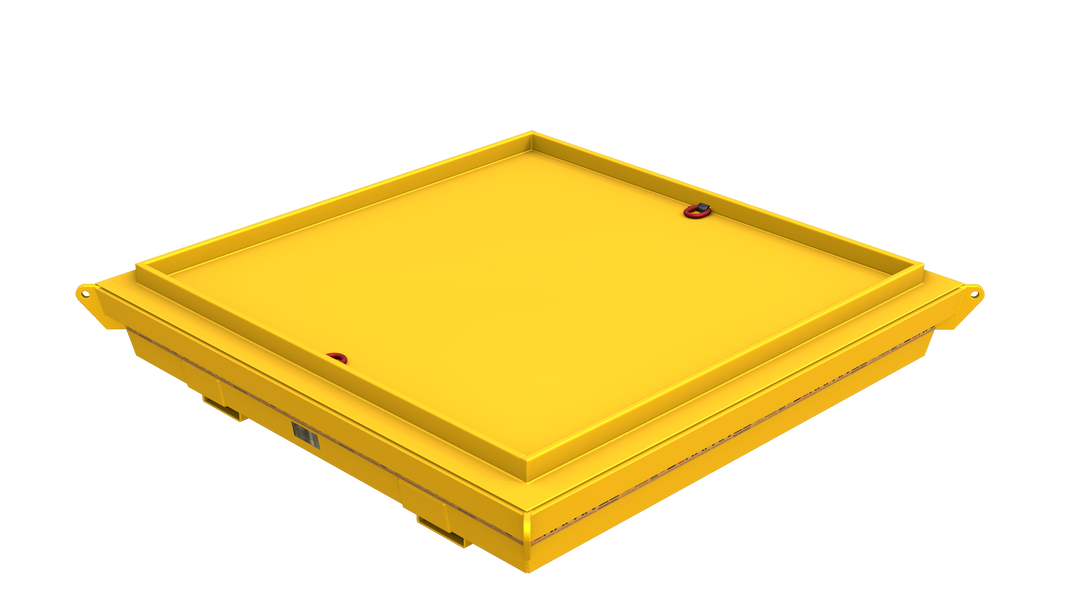

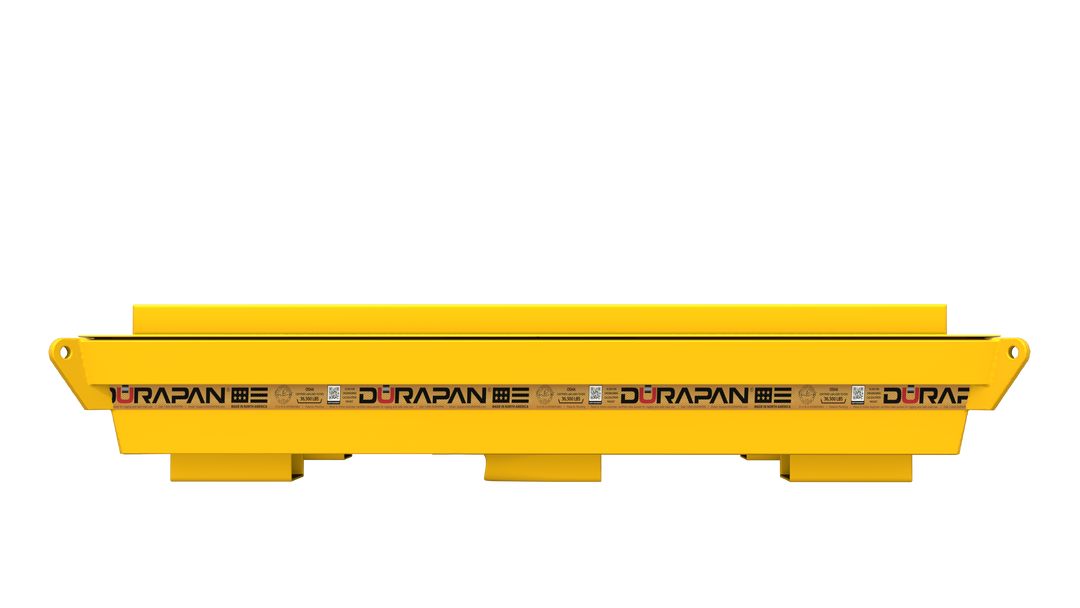

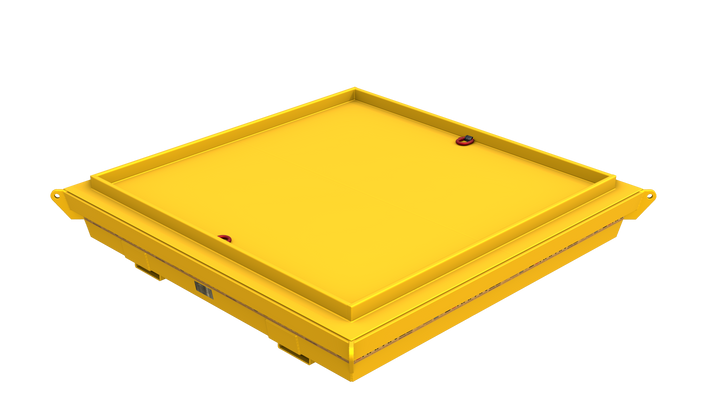

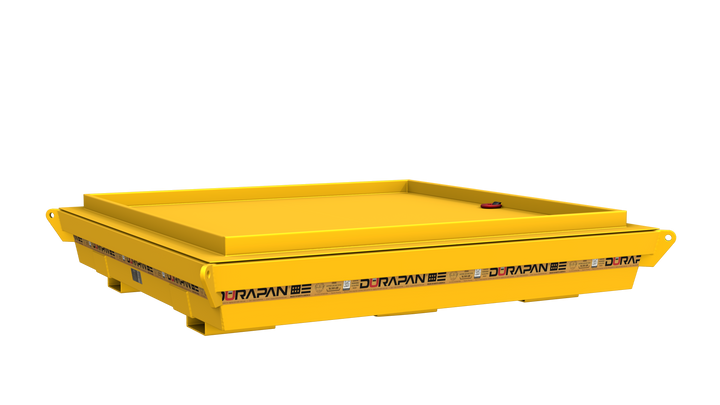

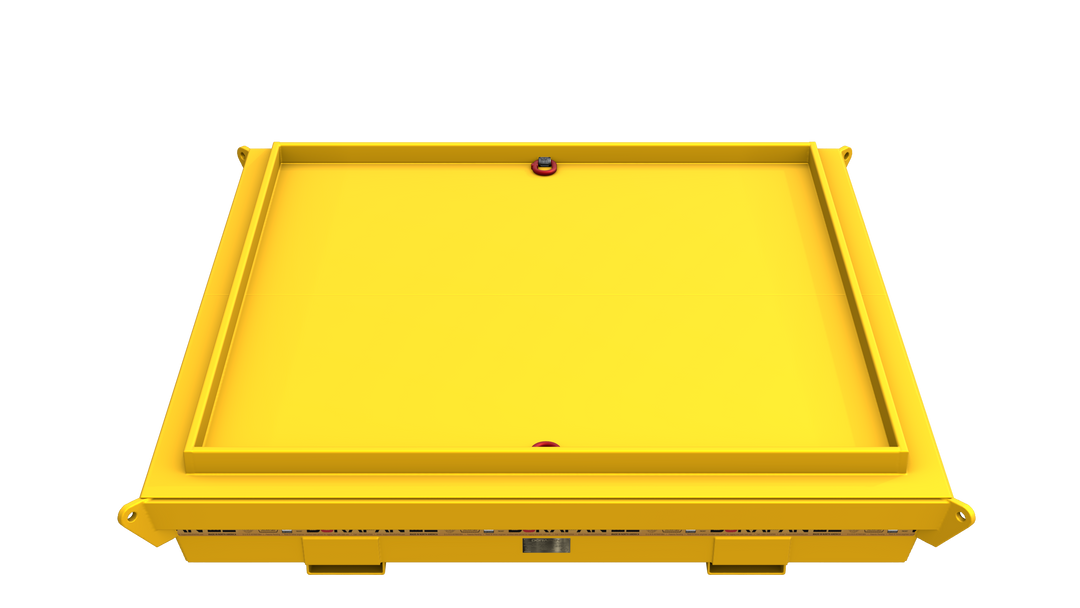

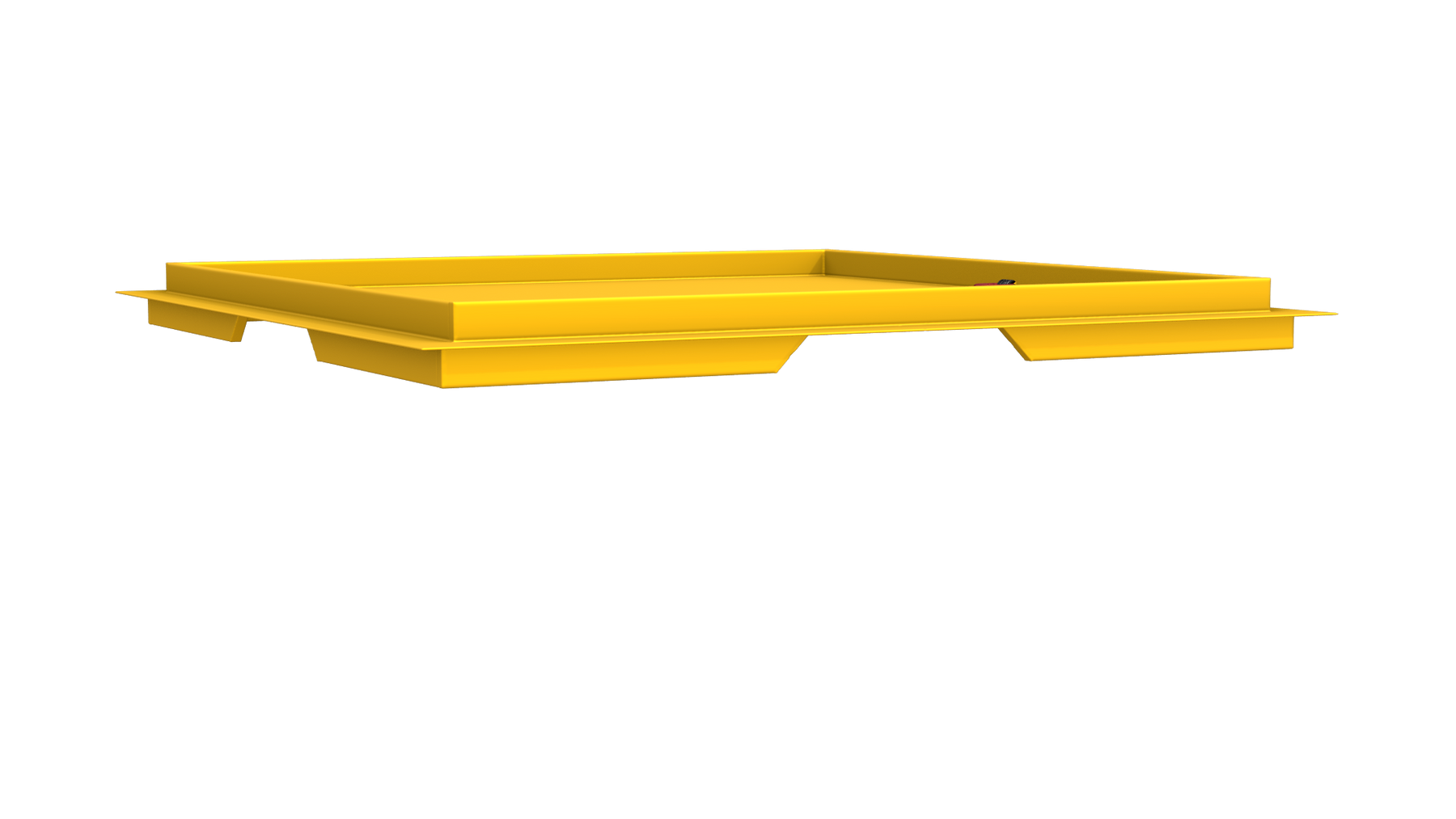

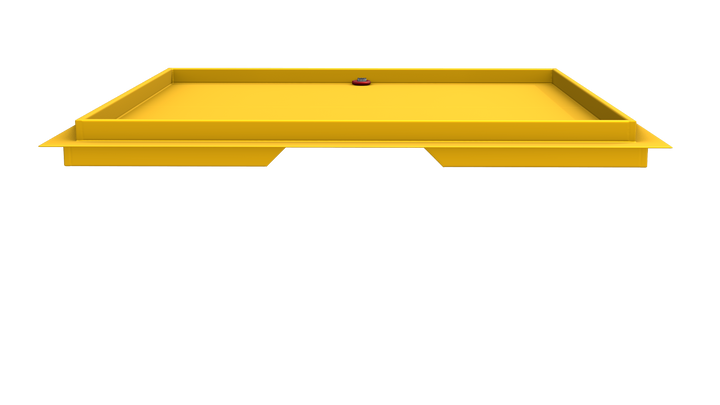

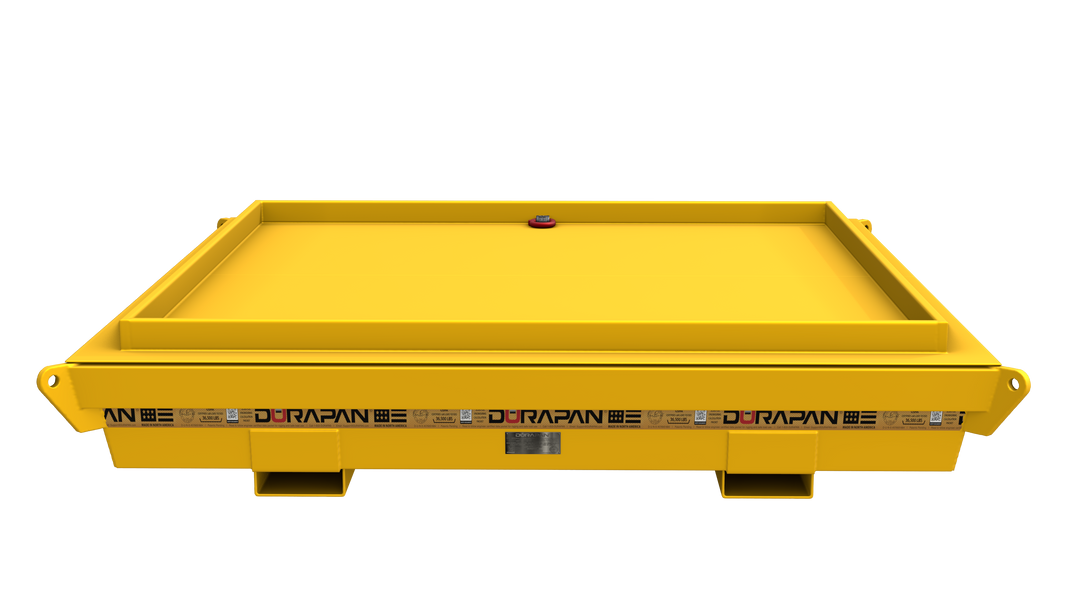

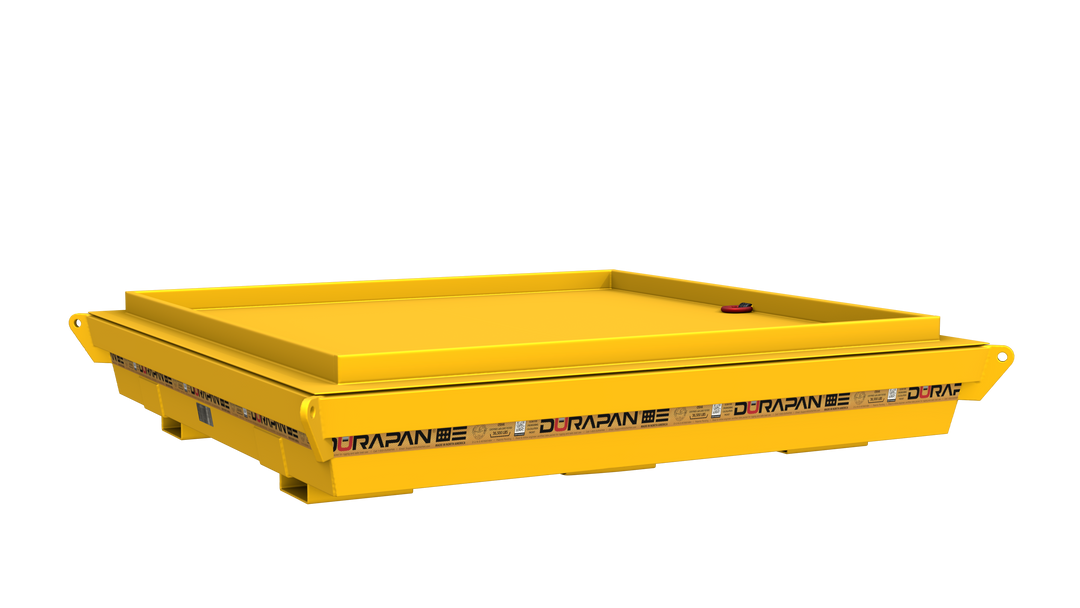

Optional Lid Available

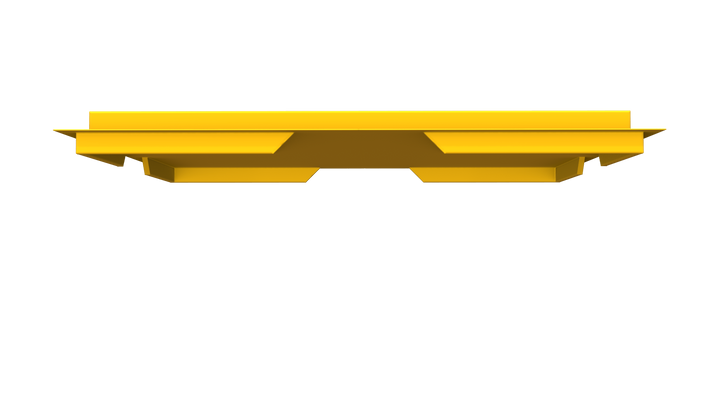

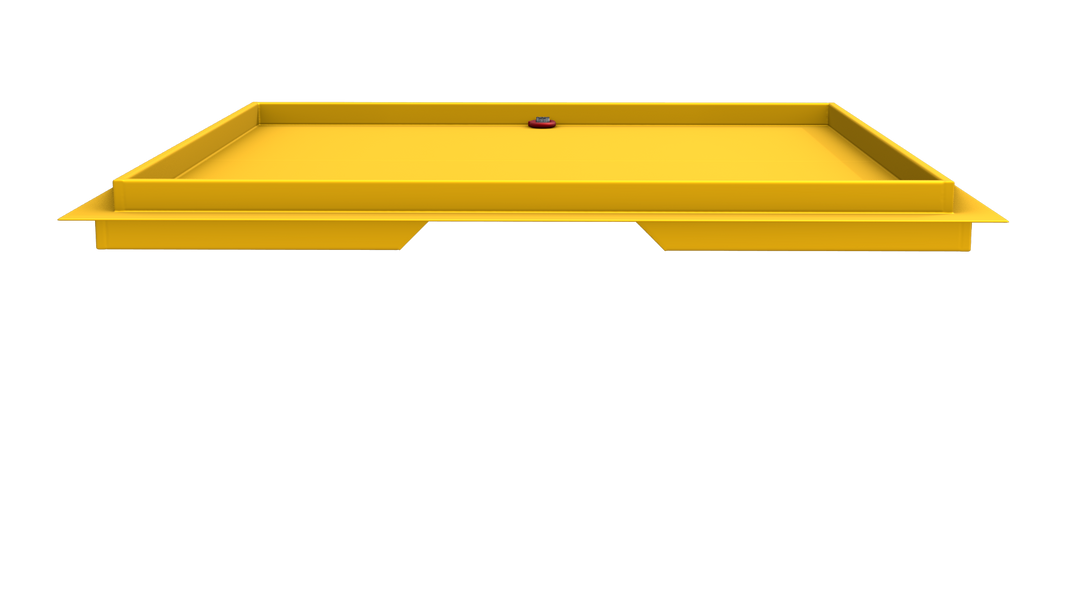

We offer an optional watertight lid with a nitrile seal to provide additional protection against overflow and to keep your project in regulatory compliance.

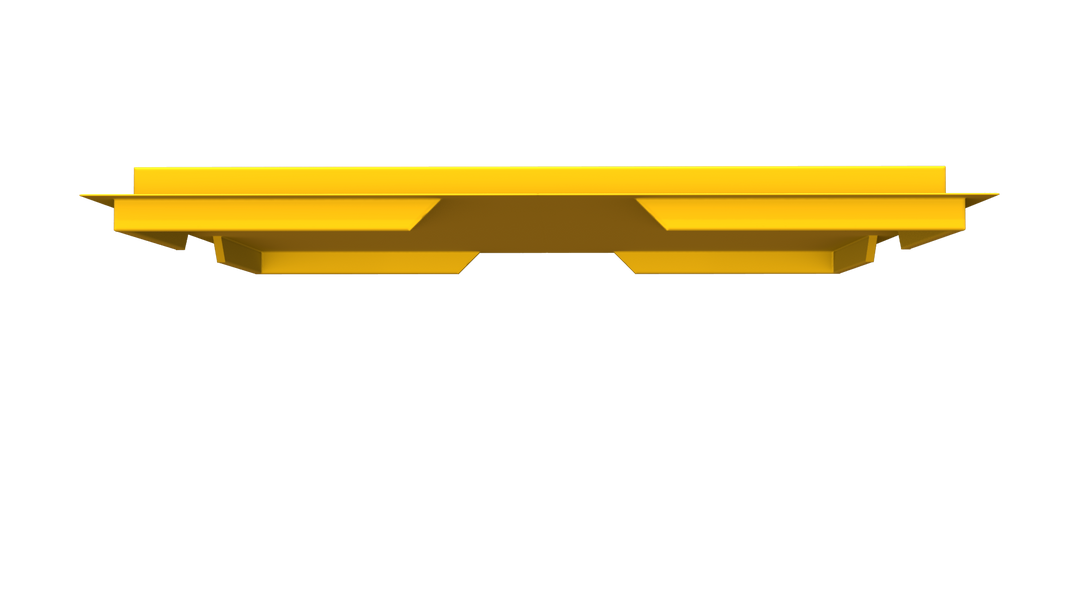

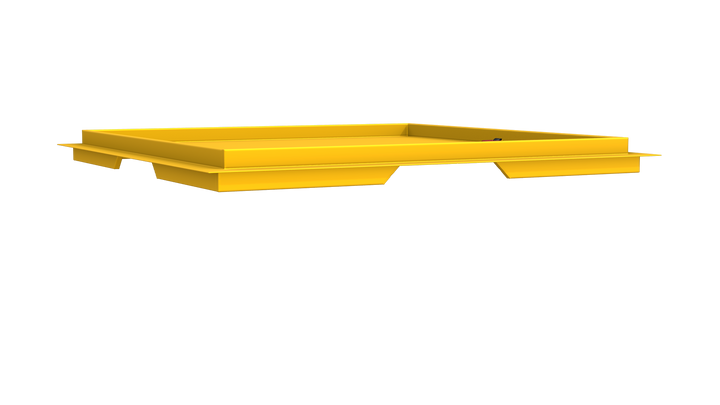

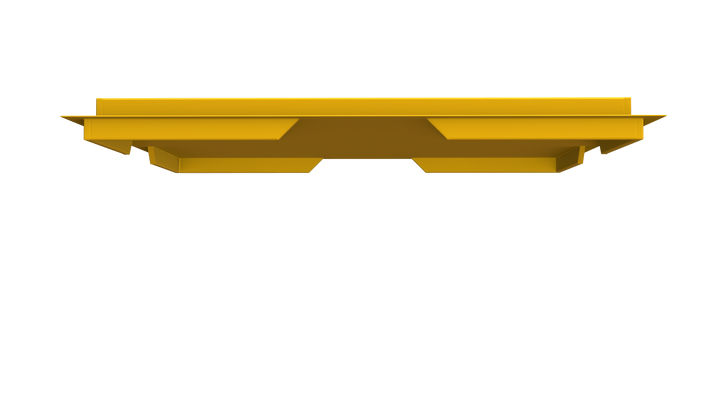

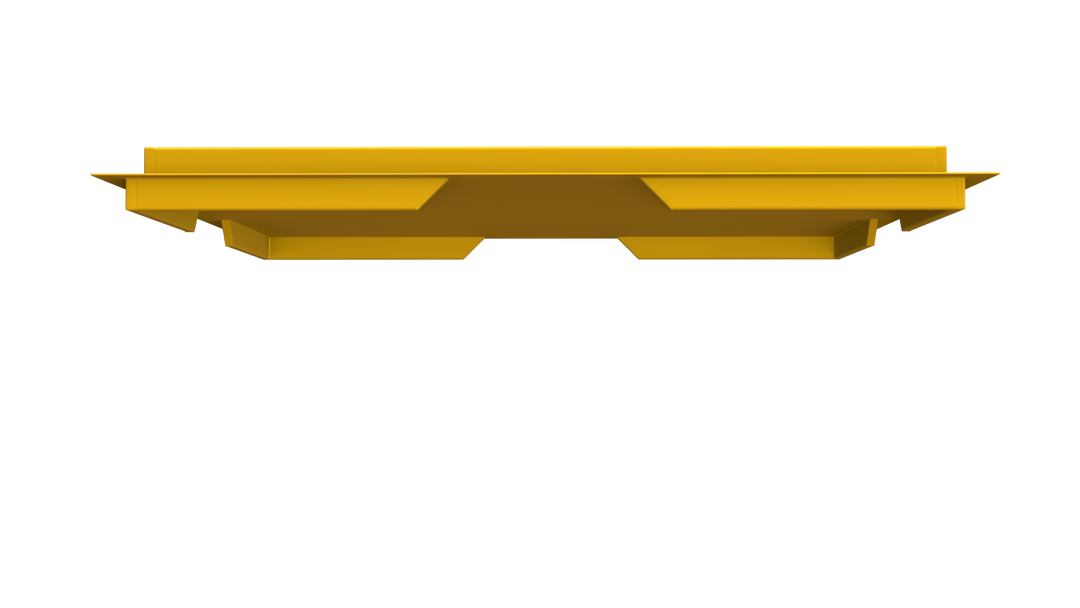

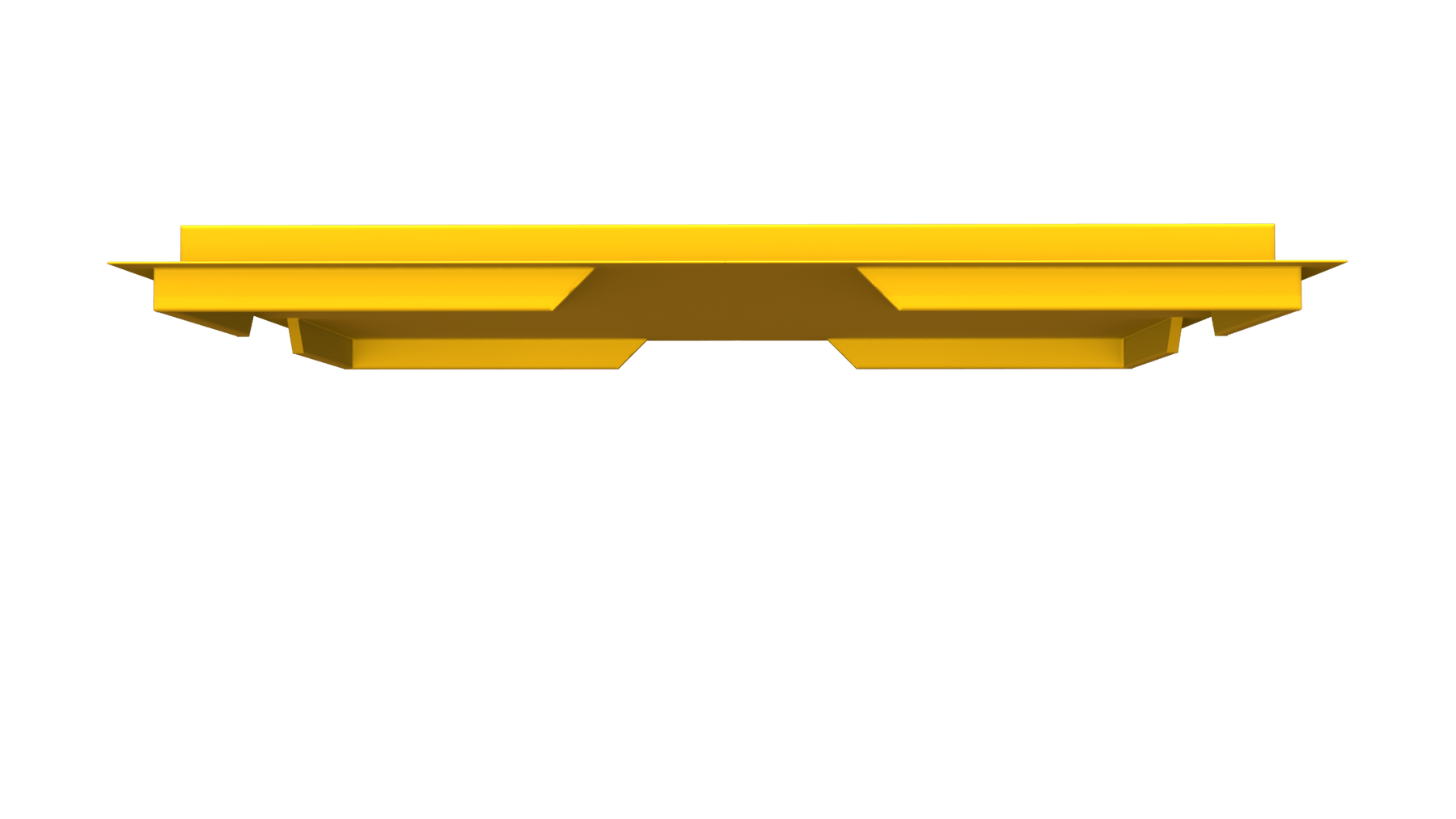

Low-Profile Design

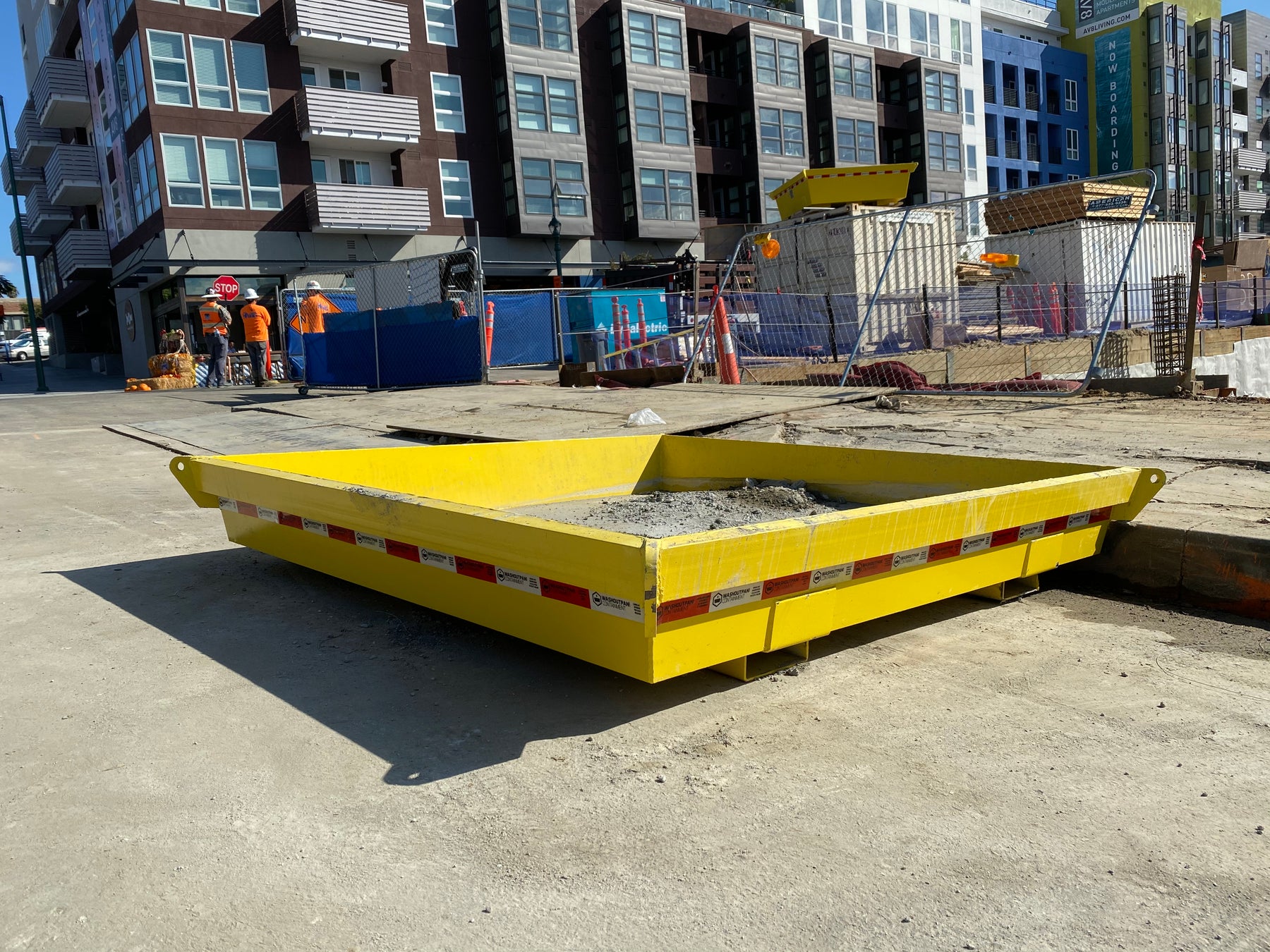

With a height of just 14", this pan is specifically designed to fit under concrete pump trucks, making it an ideal solution for concrete washout containment in various construction applications.
Rely on the DURAPAN® SUPER HEAVY LIFT CRANE SERIES OSHA 300 for exceptional performance, designed to withstand even the most challenging construction environments. Trust in our product to keep your projects running smoothly and efficiently.
PROOF TESTED TO OVER 300%

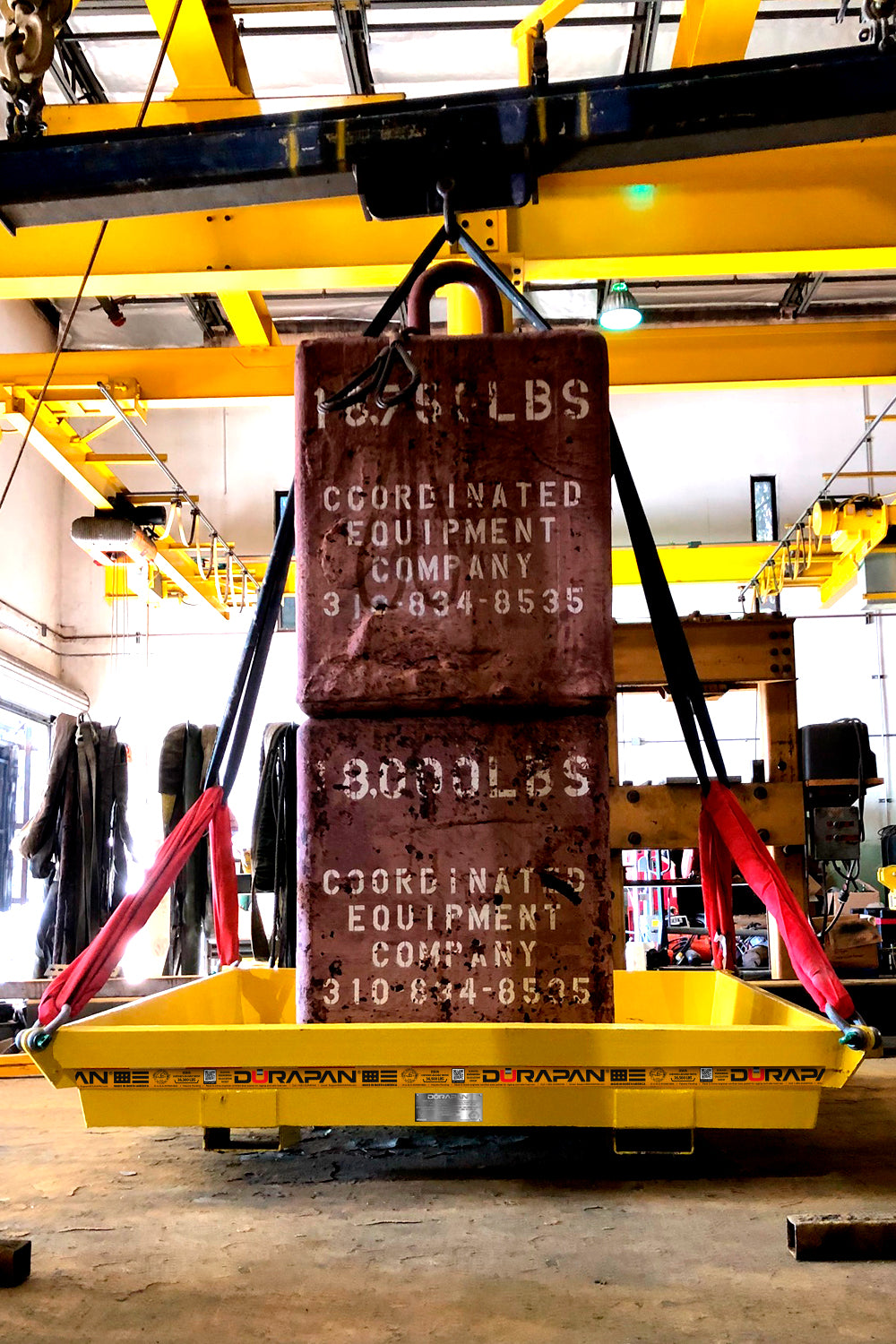

OSHA certified load test lab load Tested with 36,500 lbs by Trademark Hoist, Inc. Cal/OSHA # CA-296
ULTRA-HARD 1/4” .250-GAUGE COLD-ROLLED STEEL
A pan made from 1/4” steel is 13.12 times stronger than one made from 12-gauge.
HIGH-STRENGTH 4” X 5.4# STEEL CHANNEL PERIMETER REINFORCEMENTS
A pan made from 5.4 channel is extremely durable and very reliable. It is 79.81 times stronger than an open channel/headrail.

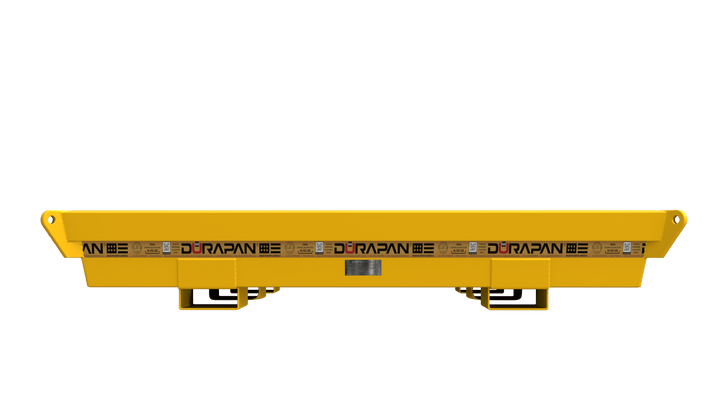

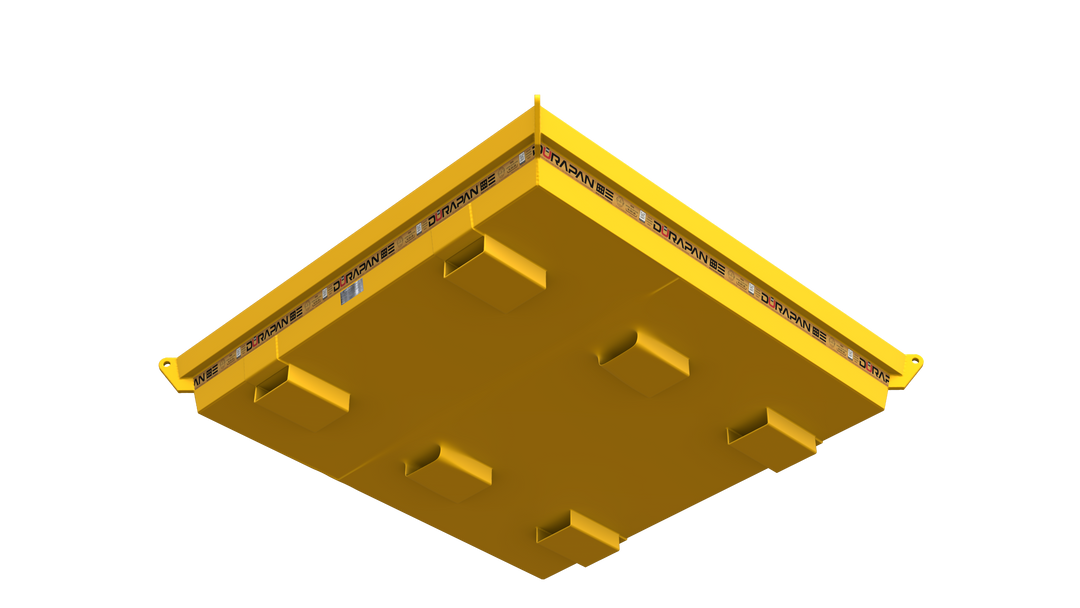

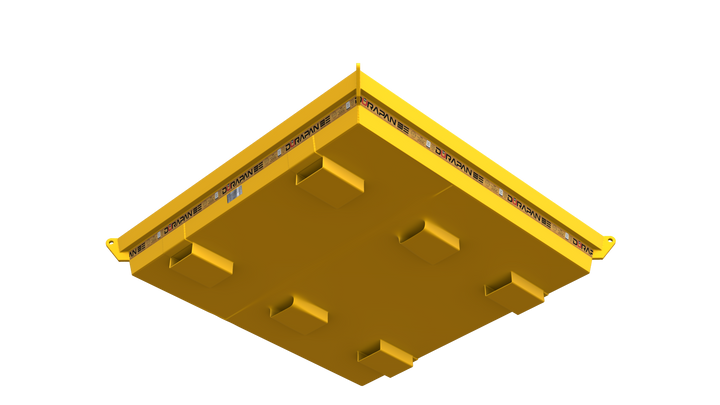

TWO-WAY XL UNIVERSAL FORKLIFT POCKETS
Our engineered two-way XL fork pockets outperform other options. Generously sized at 8” W x 3” H X ¼” 52” OD
ARMORED ENERGY-ABSORBING STEEL BUMPERS
Prevents punctures caused by inserting misaligned forks. MAX pan’s are equipped with four (4) 8” x ¼” welded steel bumper pads that absorb and redirect impact force preventing punctures.

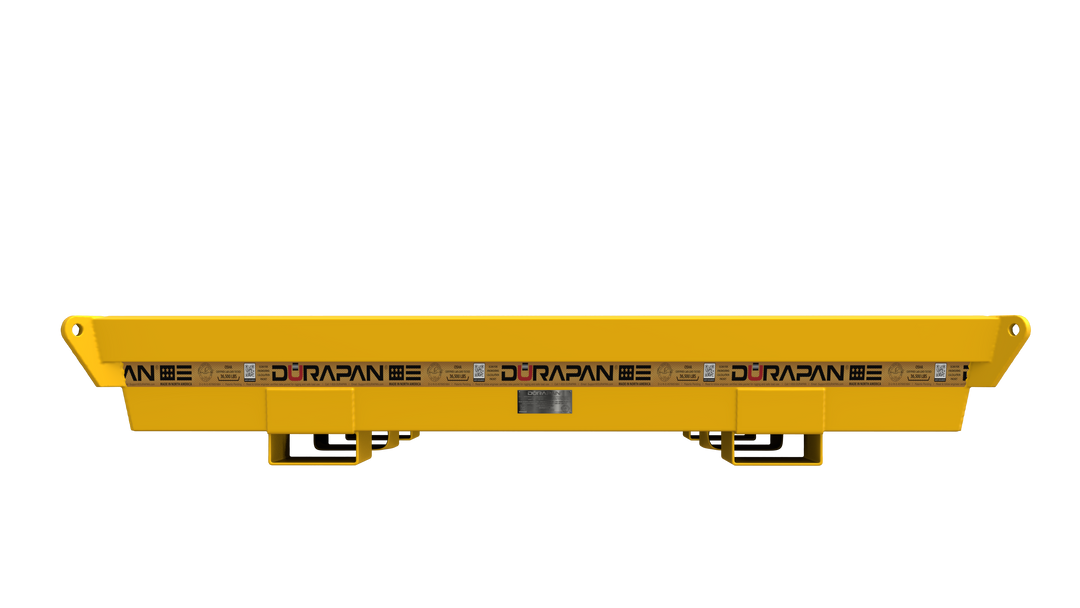

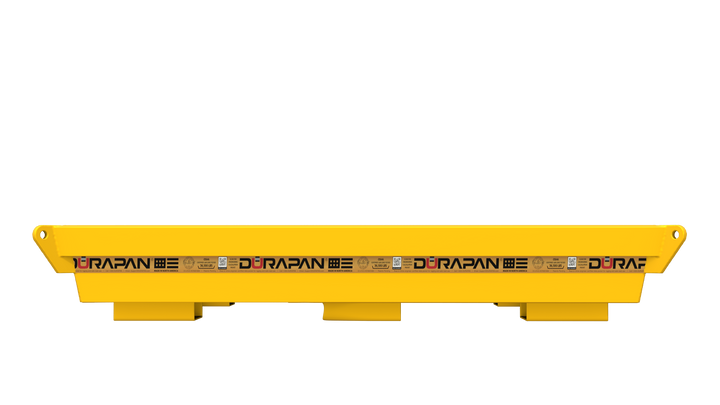

FOUR (4) ASTM ENGINEERED LIFTING EYES
Engineered from safety, our four (4) heavy duty 4’ 3/4” A-572 GRADE 50 lifting eyes have exceeded OSHA certified load test lab’s proof testing by successfully ‘flying’ 36,500 LBS.
REGULATORY COMPLIANT 3” DOT REFLECTIVE SAFETY TAPE
Microprismatic light reflective values averaging LRV 70.75. Retroreflective performance of 5 years +. Focused retroreflective values with micro-engineered 3 point prisms on the surface.

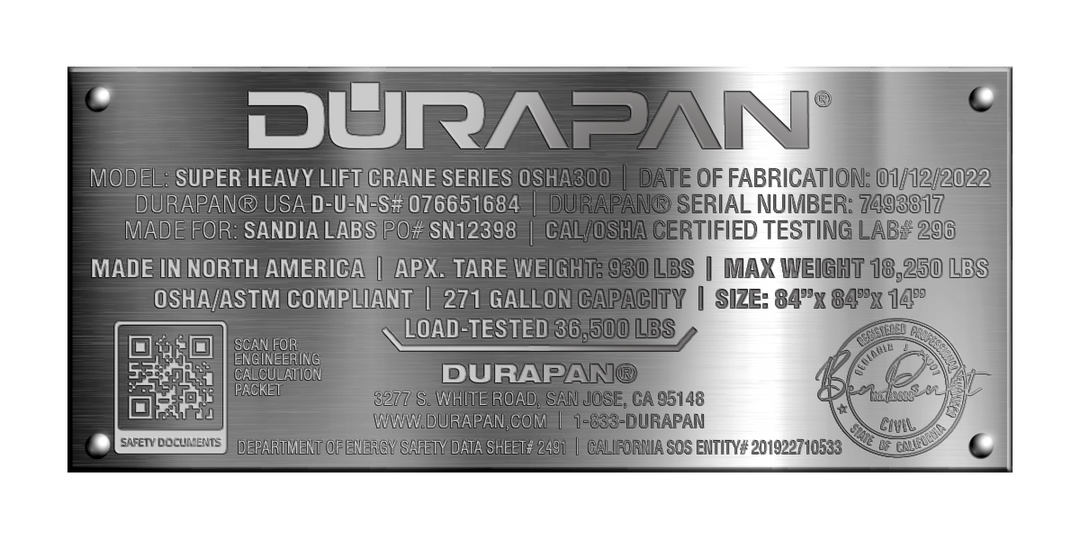

REGULATORY COMPLIANT STAINLESS STEEL DATA EQUIPMENT PLATES
Lifesaving data that protects people. China fakes of our authentic products are a real problem. We communicate 24/7 with job sites and inspectors authenticating equipment and providing required safety data.
O.S.H.A Certified Lab Load Tested With 36,500 Lbs. Link to load test certificate
Engineering Calculation Packet Available upon Request Link to enter email and request
High Strength 1/4” Gauge Steel Floors
High Strength 1/4” Gauge Steel Walls
Hand Welded Continuous Seams
11” Wide Angled Inclosed Forklift Pockets Spaced 40” to OD
Engineered Stealth design floor & tapered interior walls prevent materials from sticking
Serialized metal Equipment Identification plated riveted to front panel of each pan.
Serialized metal Equipment safety use plate attached to each pan
Painted Safety Yellow
Easy Release Nesting Spacers allow inter-stacking of multiple pans and prevent sticking.
Steel Watertight Lids with Nitrile seal available.
