Name: 587 Gallon Washout Pan
Brand: DURAPAN
SKU: Durapan-concrete-pump-truck-washoutpan-848427MAX
Price: 3000.0 USD
Availability: InStock

$3,000.00

Shipping calculated at checkout.

84" x 84" x 27"

Truck Comptability: Mixer Truck

Weight: 1300 lb

OSHA Load Tested to 36,500 lbs

Lifetime Warranty

587 Gallon Capacity
2,348 US Liquid Quarts
78.5 Cubic Feet
2,222 Liters

Plate: ASTM A36
Pad Eye Plate: ASTM A572 Gr. 50
Channel: ASTM A36
Angle: ASTM A36
Weld: AWS E70XX

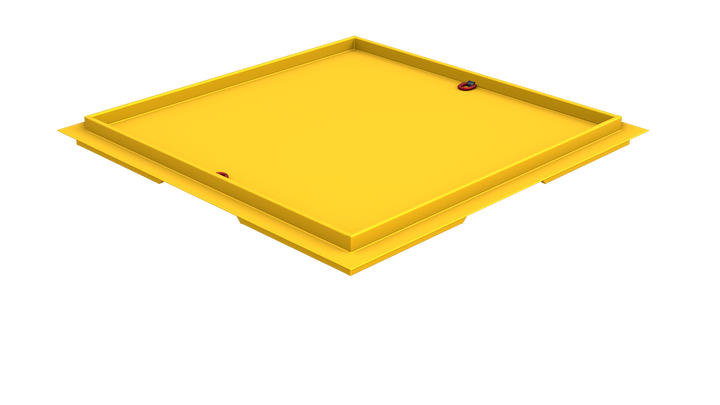

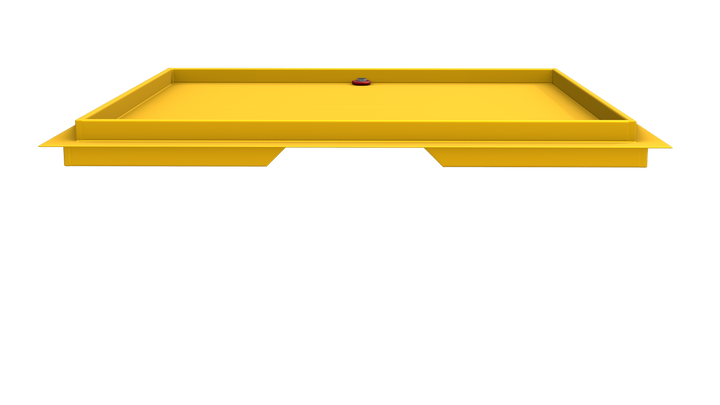

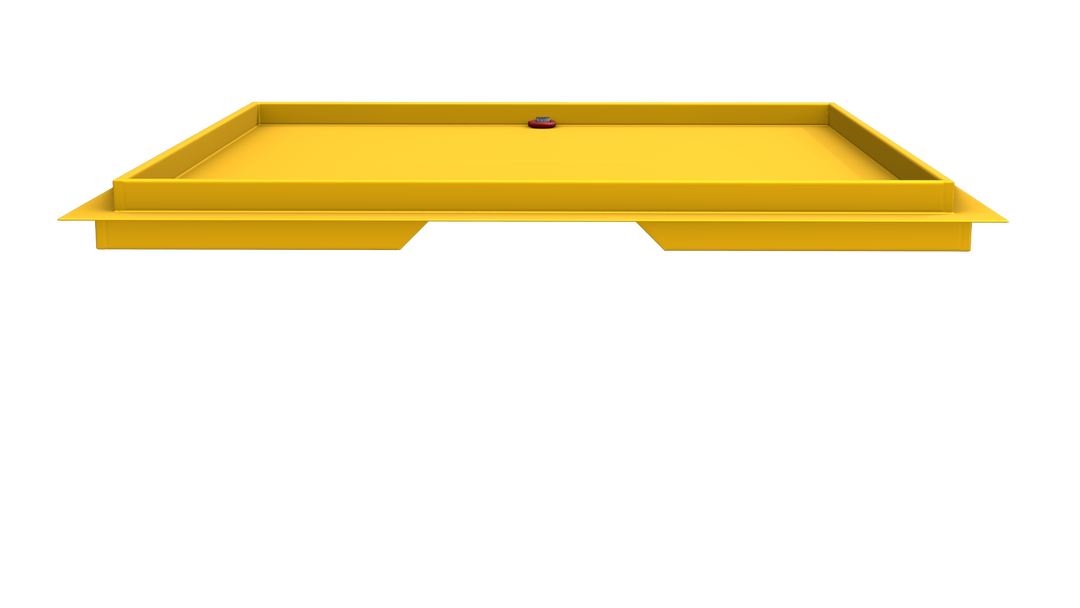

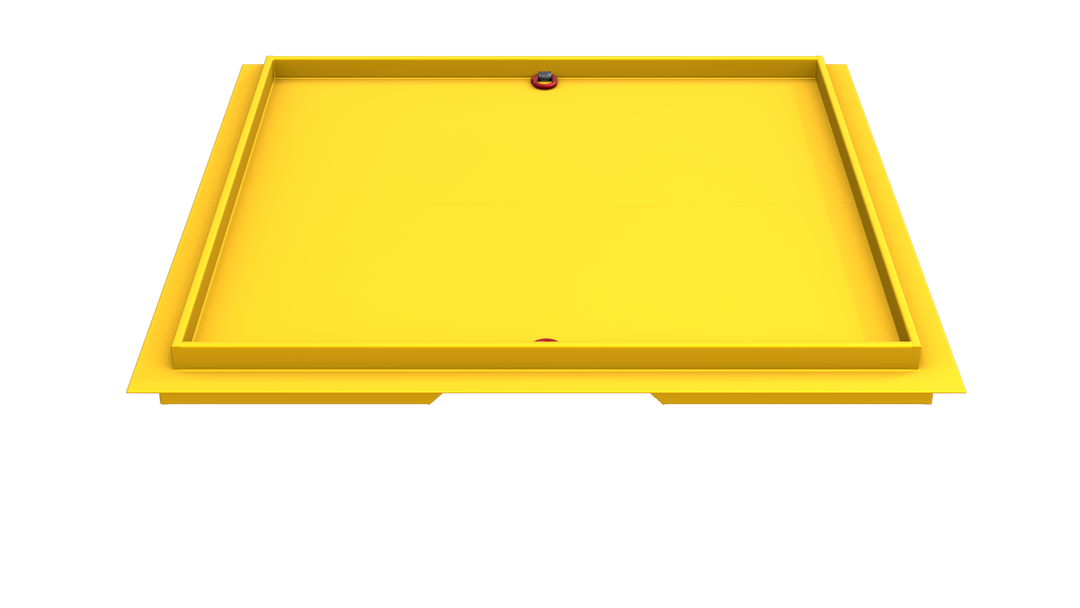

Lifting Links: OSHA compliant Crosby and Pewag overhead rated lifting links

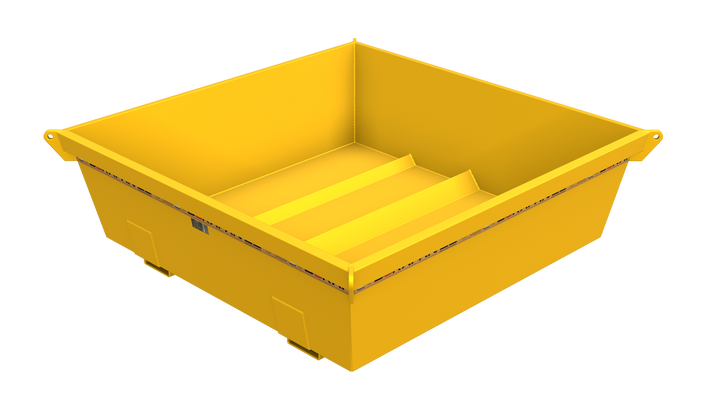

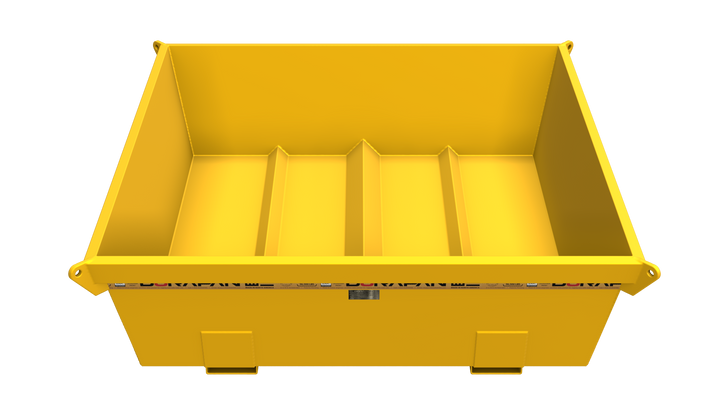

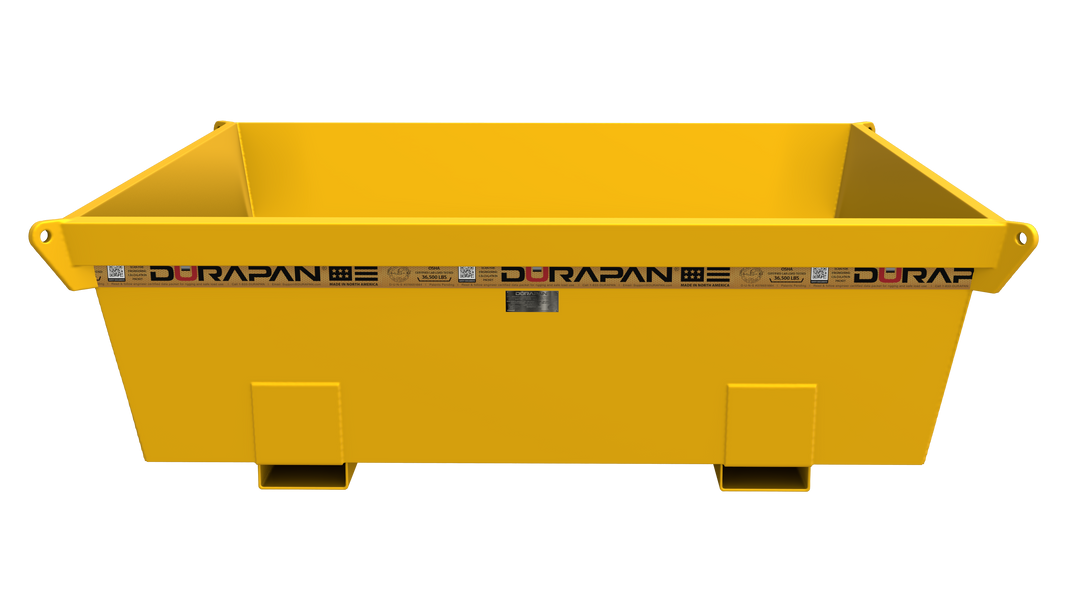

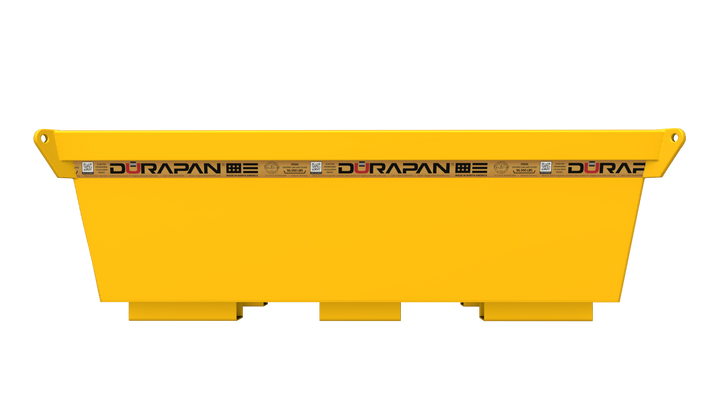

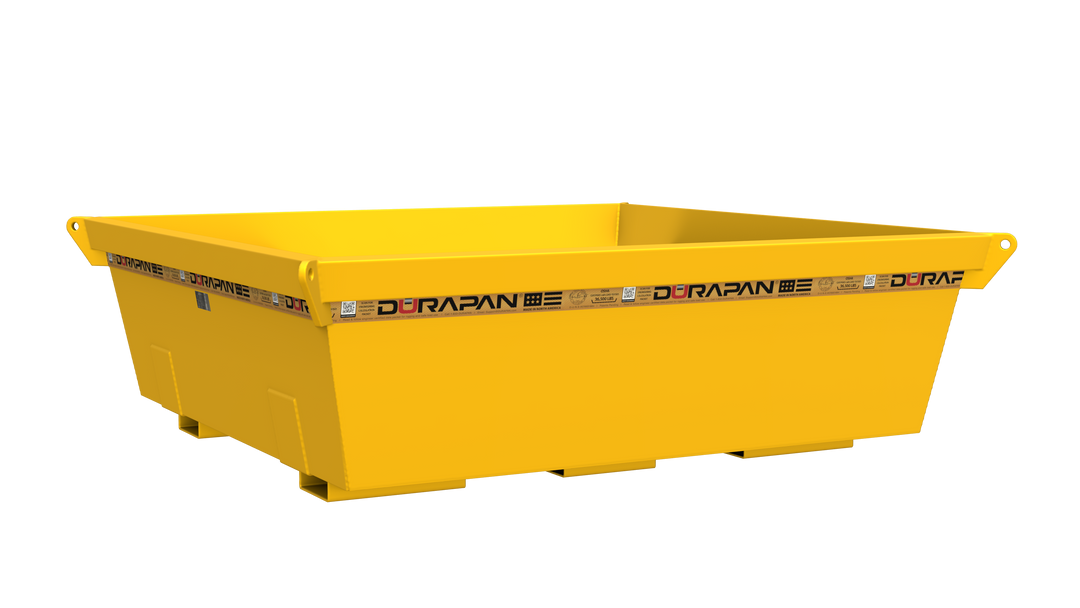

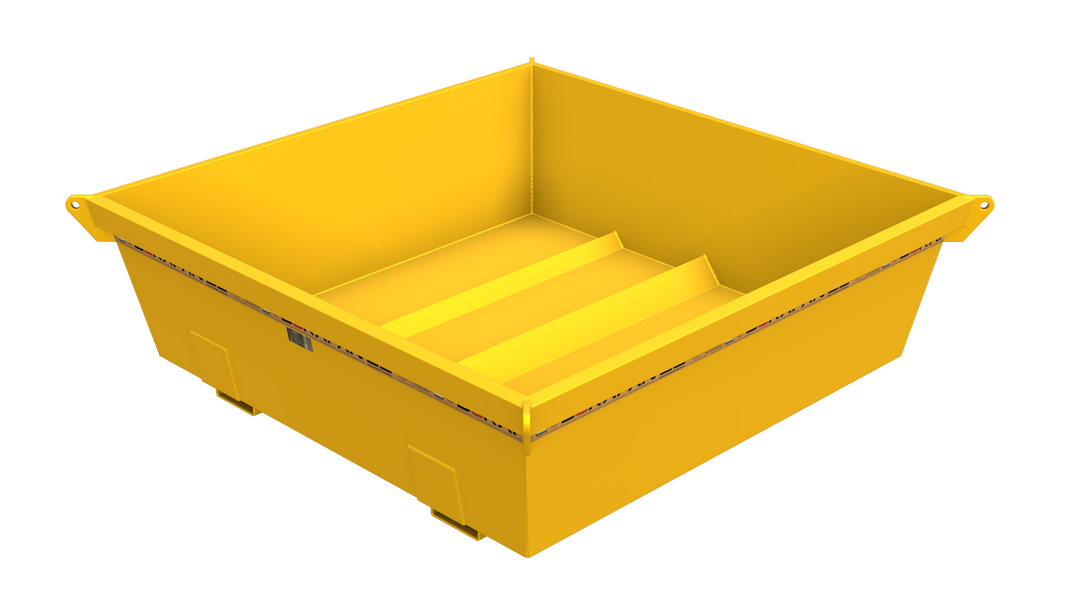

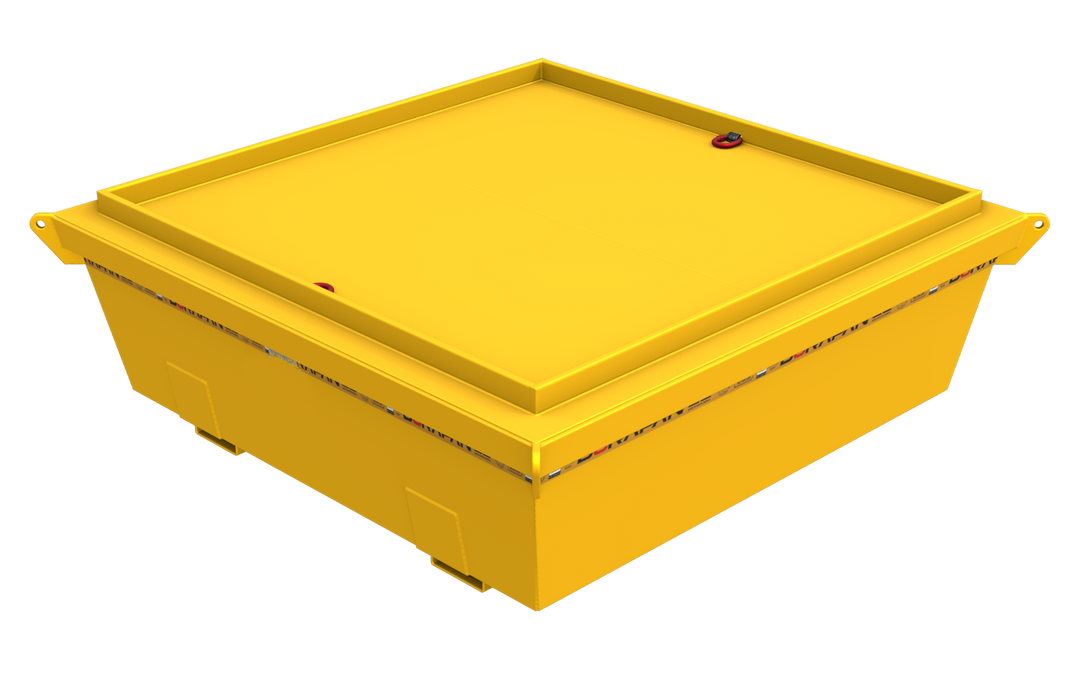

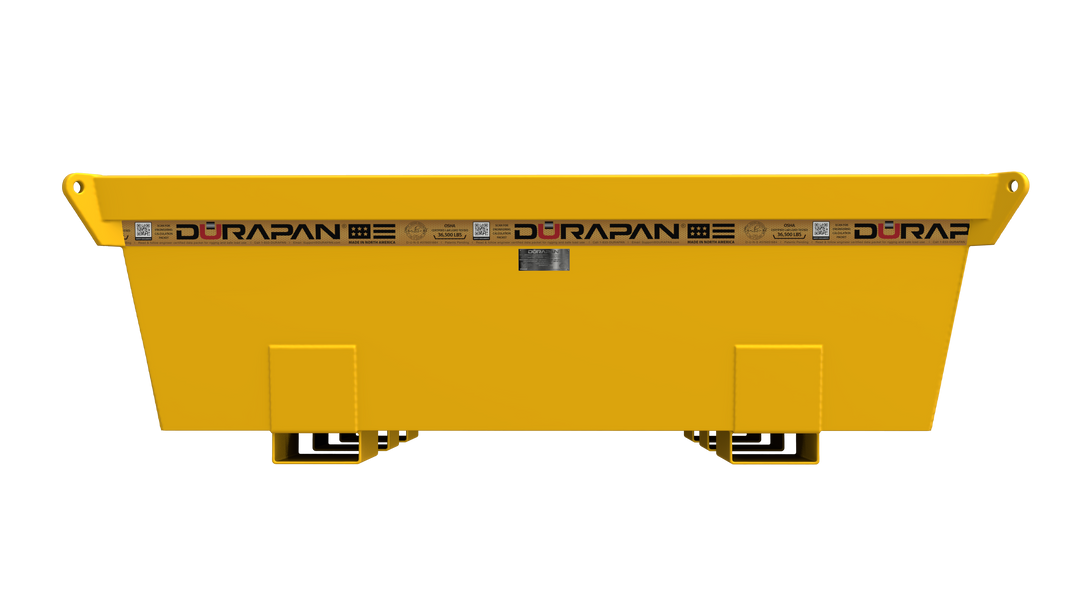

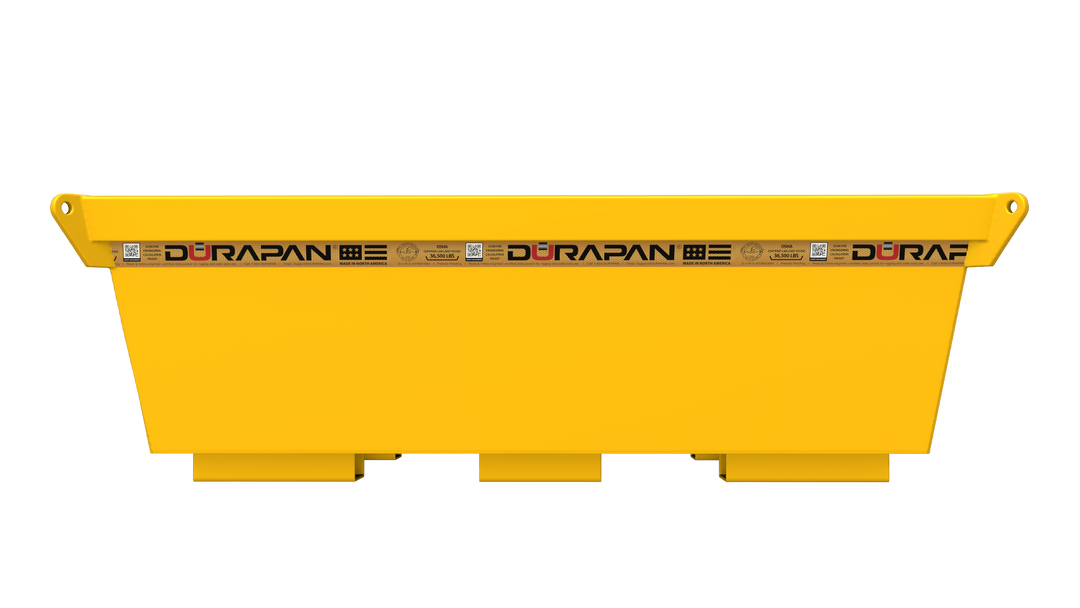

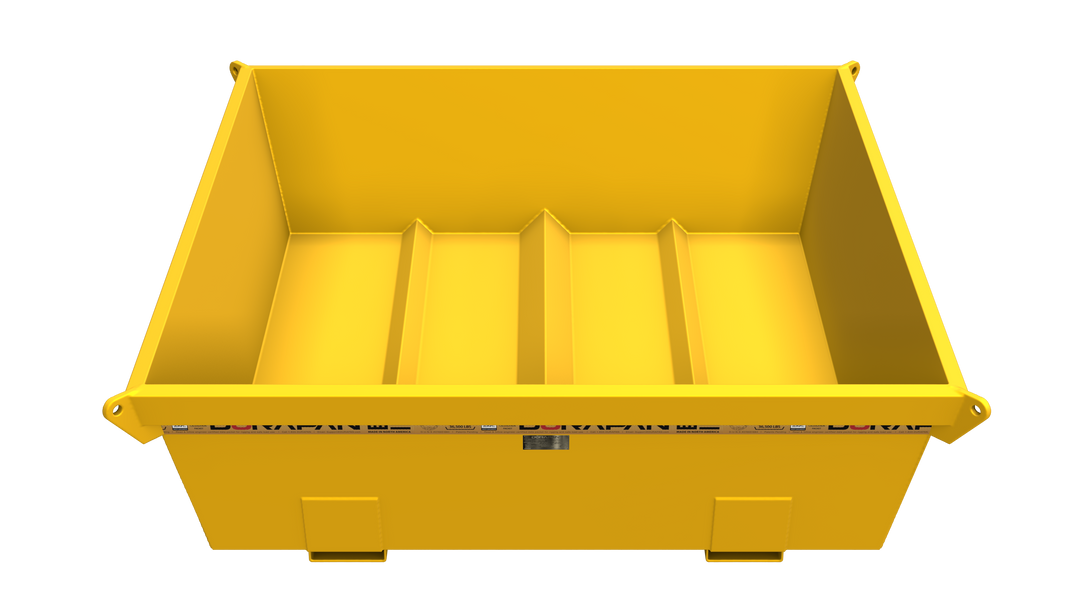

The DURAPAN® 587-Gallon Concrete Washout Pan is designed for maximum capacity and durability. Featuring 27" height and 1/4" ultra-hard steel walls, this pan is 13.12x stronger than traditional 12-gauge steel. Its inter-stackable design and watertight construction make it the perfect choice for large-scale concrete mixer truck washout and pump priming operations.

Safety Specs

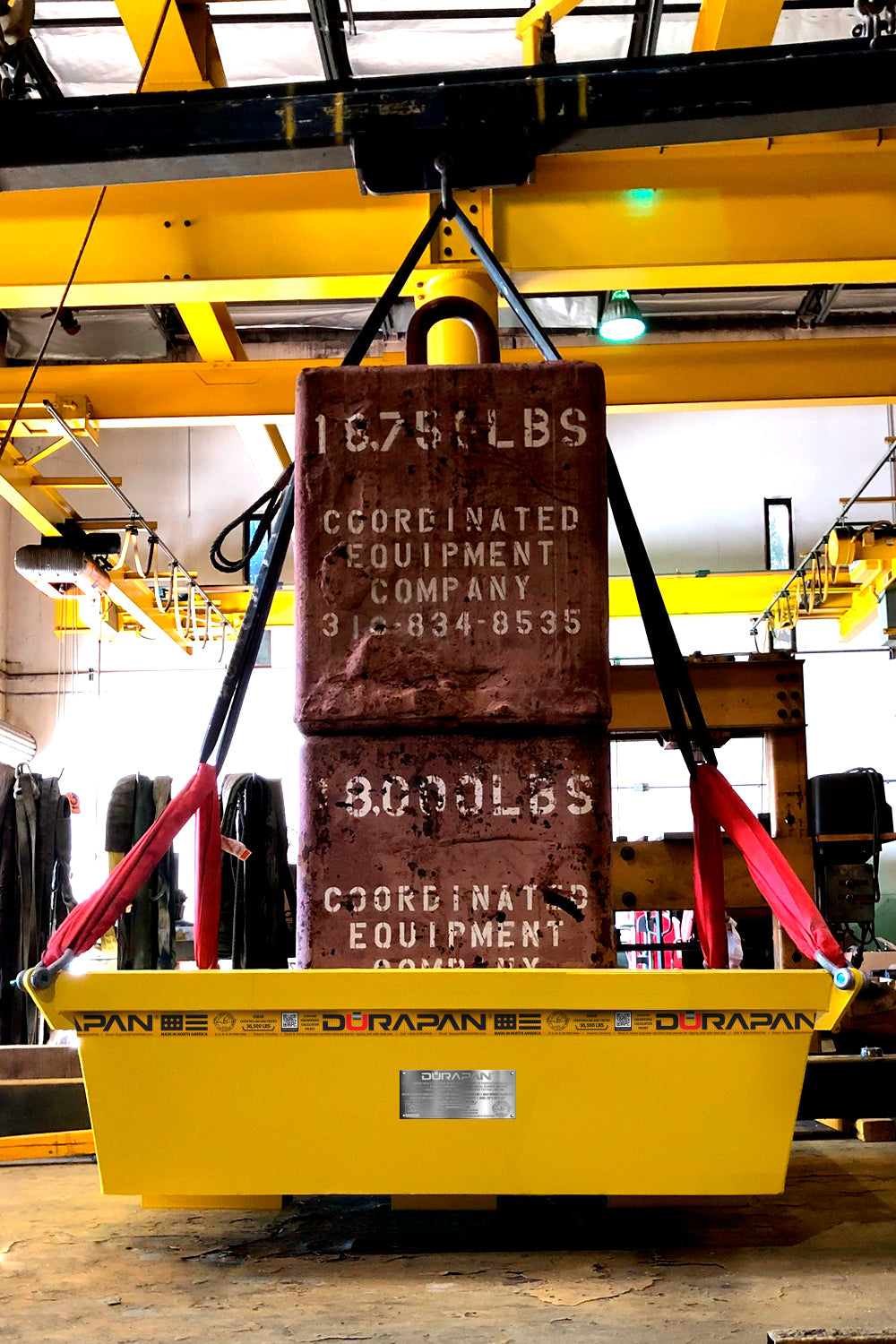

Load Test Certificate

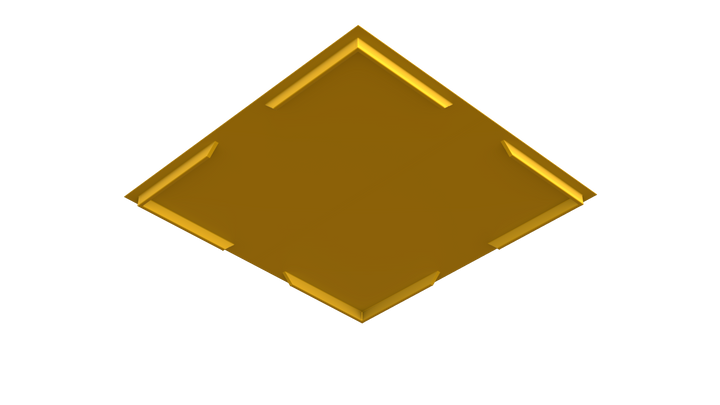

Impact-Resistant Bumpers

Armored steel bumpers absorb and redirect impact force, preventing punctures caused by misaligned forks.

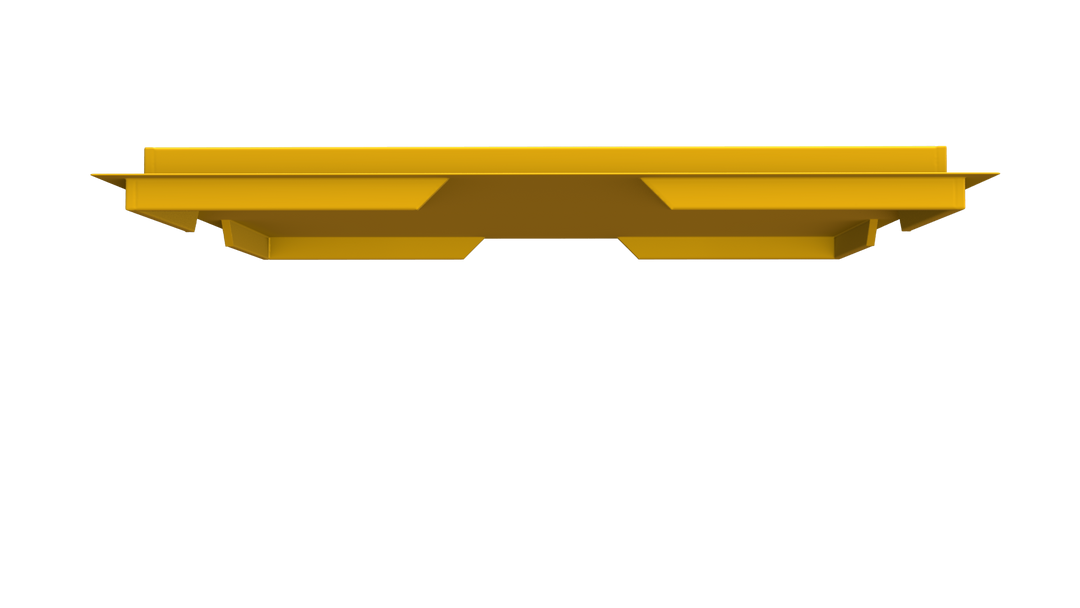

Inter-stackable Design

Allows for efficient storage, transport, and handling of multiple pans, maximizing space on-site.

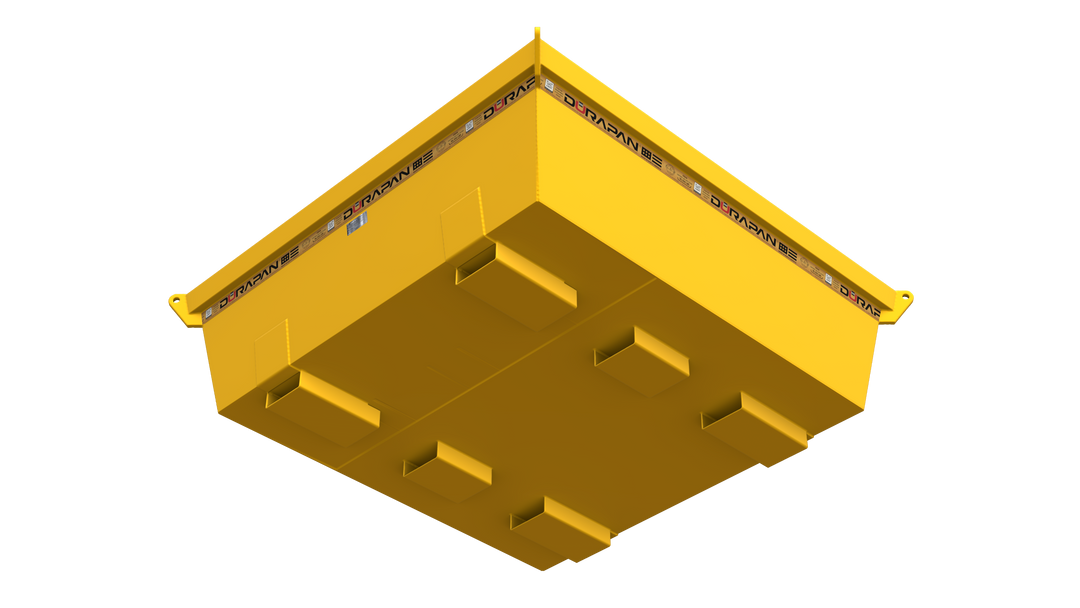

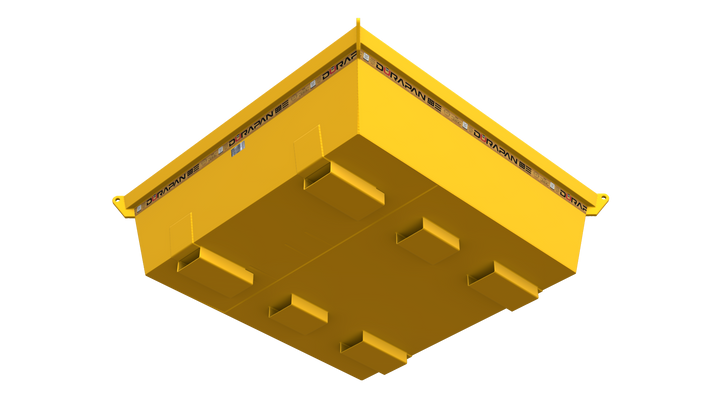

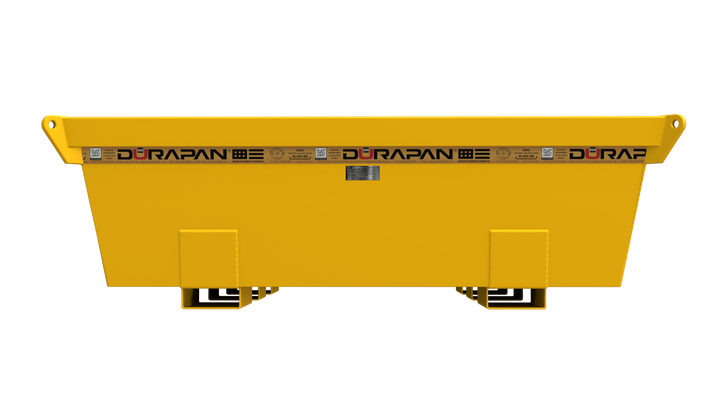

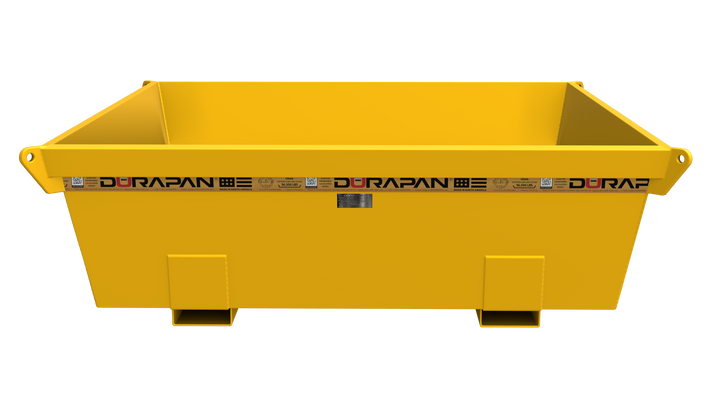

Two-Way XL Universal Forklift Pockets

Our two-way XL universal forklift pockets (8”W x 3”H x ¼”) allow for seamless lifting and maneuvering. These pockets ensure reliable handling even under heavy loads, making on-site transport safer and more convenient.

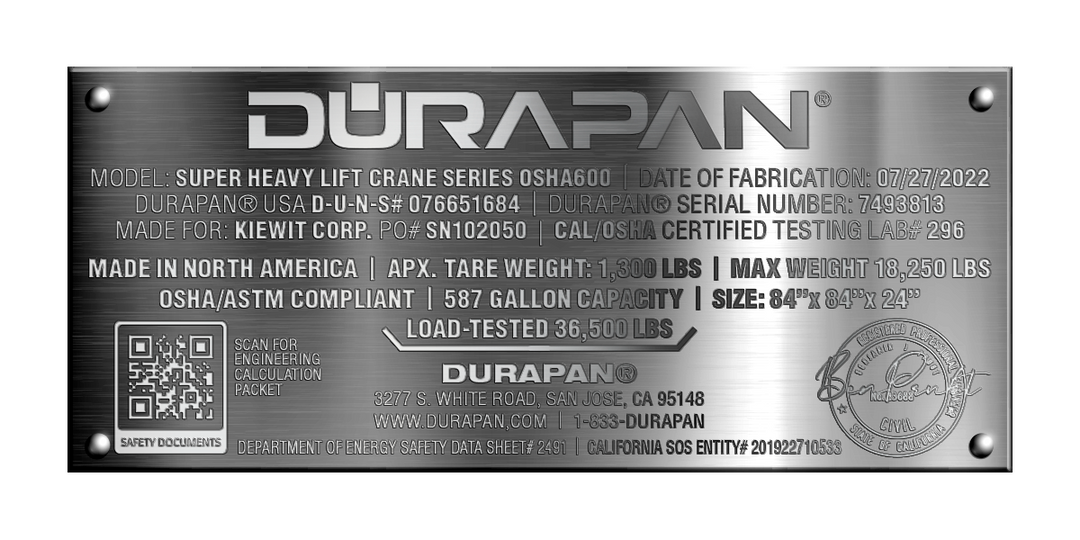

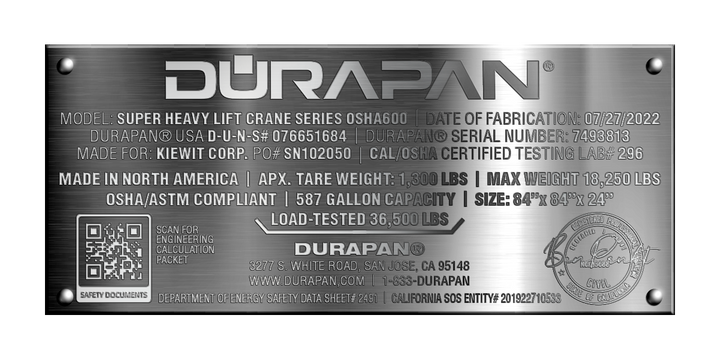

Serialized Equipment Plates

Equipped with a Serialized Equipment Identification Plate, ensuring easy tracking and authenticity and a Serialized Safety Use Plate, providing essential safety information for job site compliance.

Durapan

Efficient & Eco-Friendly Washout Solutions for Heavy-Duty Trucks

Our durable and versatile Concrete Pump & Mixer Truck Washout Pans are designed to provide an effective, environmentally friendly washout solution for both pump trucks and mixer trucks. Built with high-quality materials to withstand the demands of daily job sites, these washout pans help keep your work area clean, compliant, and organized.

Why Choose Durapan?

With over 20 years of experience and more than 200,000 pans sold, Durapan is the industry leader in engineered washout solutions for heavy-duty jobs. Trusted by some of the biggest builders, Durapan’s washout pans are built to last—with a zero-complaint record since 2004. Our pans are OSHA lift compliant, load-tested to 36,500 lbs, and designed to deliver proven, cost-effective containment solutions. Whether you need a low-profile, large-capacity, or pro-grade washout pan, Durapan sets the bar in durability, safety, and job-site reliability.
