DURAPAN

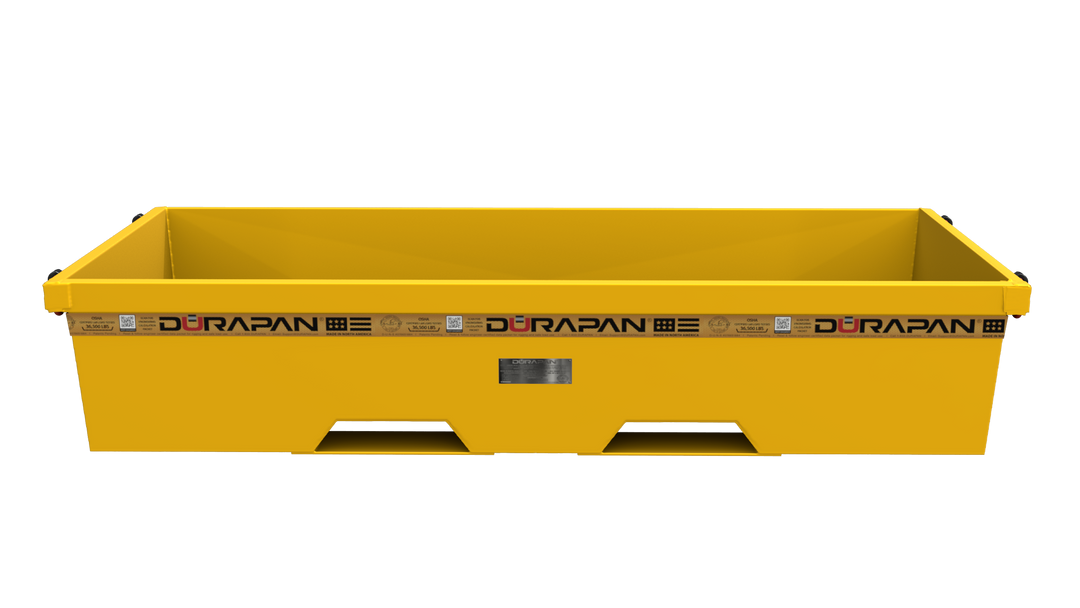

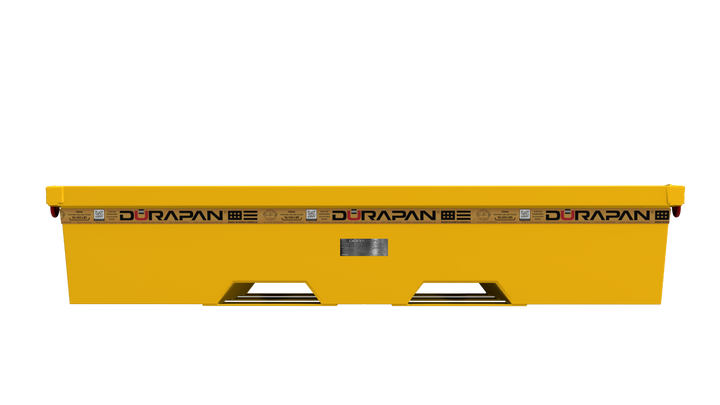

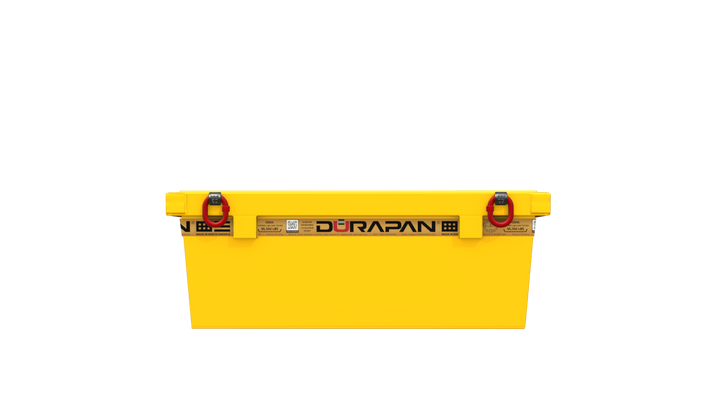

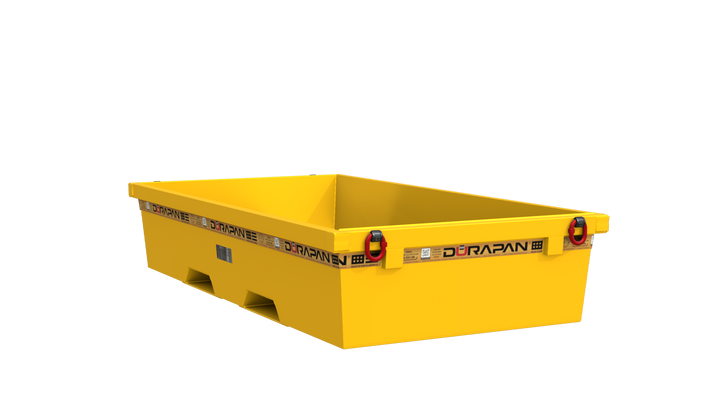

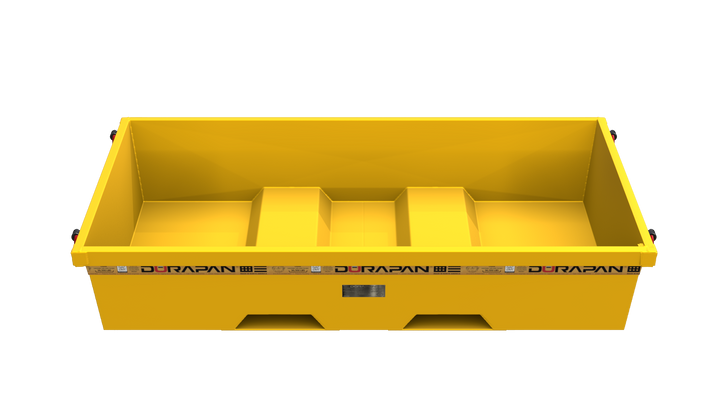

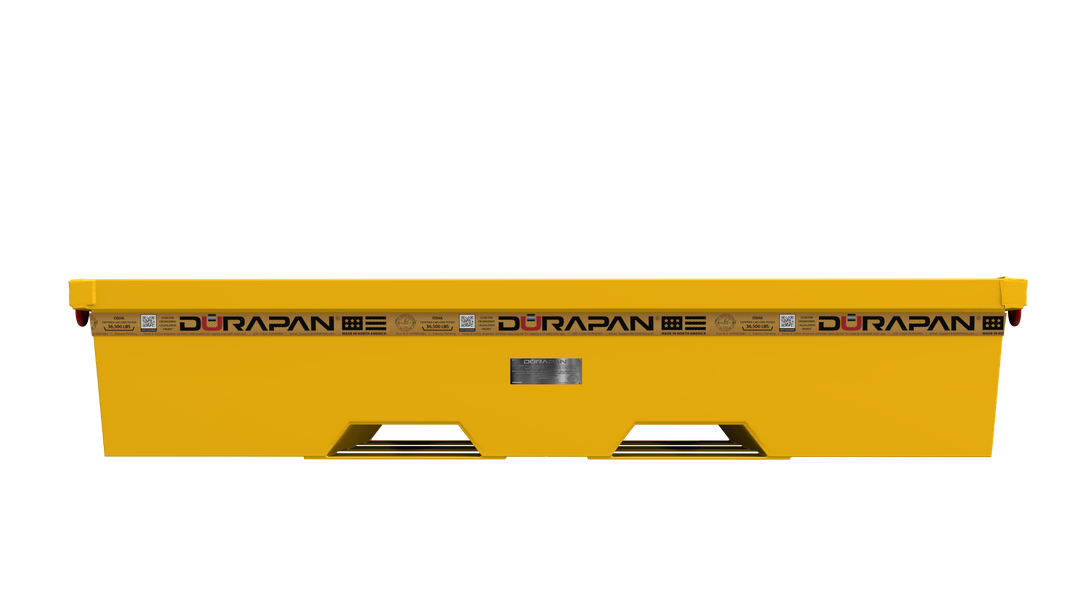

Concrete Washout Pan 50x96x18.25” 400 gal. [4 ASTM Crosby/Pewag overhead lifting links] California Engineer Certified | Made in North America | For concrete pump & mixer truck washout | Steel reusable leakproof | Optional rain lid

Concrete Washout Pan 50x96x18.25” 400 gal. [4 ASTM Crosby/Pewag overhead lifting links] California Engineer Certified | Made in North America | For concrete pump & mixer truck washout | Steel reusable leakproof | Optional rain lid

Regular price $1,899.00 USD
Regular price $2,700.00 USD Sale price $1,899.00 USD
Sale Sold out
Shipping calculated at checkout.

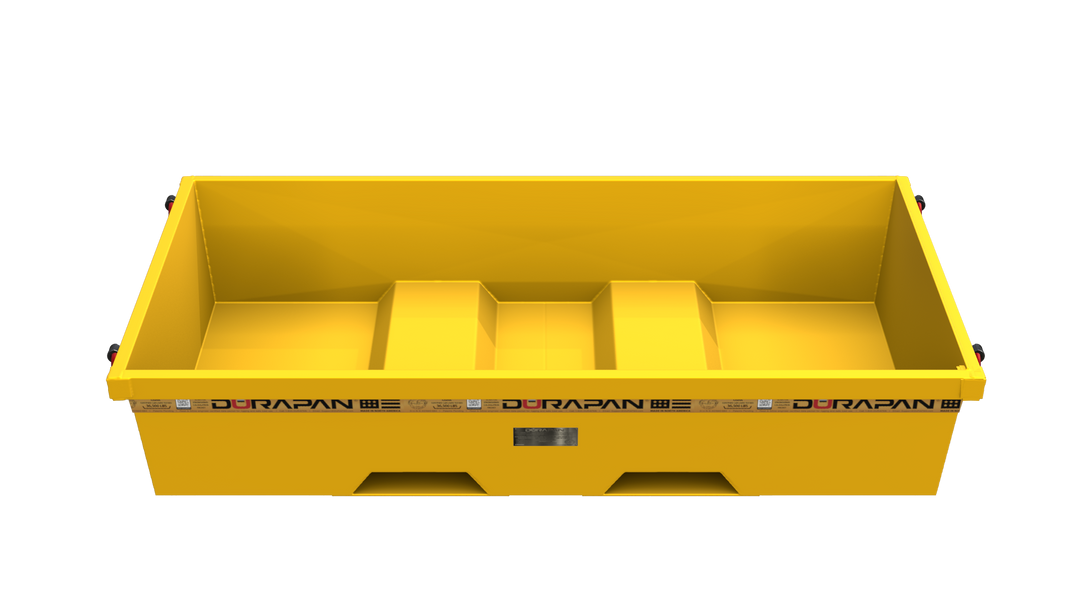

Introducing the DURAPAN® 400 – a robust and versatile containment solution designed specifically for concrete mixer washout and pump-priming.

UPC: 860010600009

Do you need a rain cover for SWPPP? Select HERE

Please click here to download the load test certificates and safety information

DURAPAN Safety Specs 400

Load Test Certificate



County of origin: North America

Warranty: Lifetime

Dimensions: 50 x 96 x 18.25"

Actual height: 18.25"

Designed for concrete mixer truck washout and concrete pump truck priming

Liquid and solid volume:

400 Gallon capacity
1,600 US Liquid quart
53.5 Cubic foot
1,514 Liter

Approximate tare weight: 690 lbs

ASTM material grades:

Plate A36

Channel: A36

Angle: A36

Weld: AWS E70XX

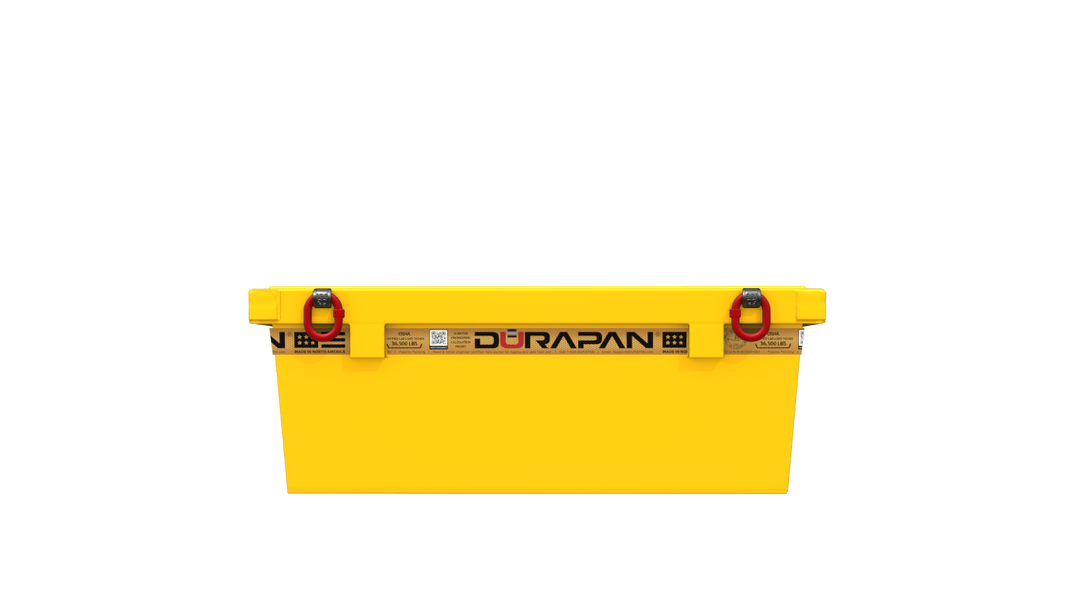

Lifting links: OSHA compliant Crosby and Pewag overhead rated lifting links

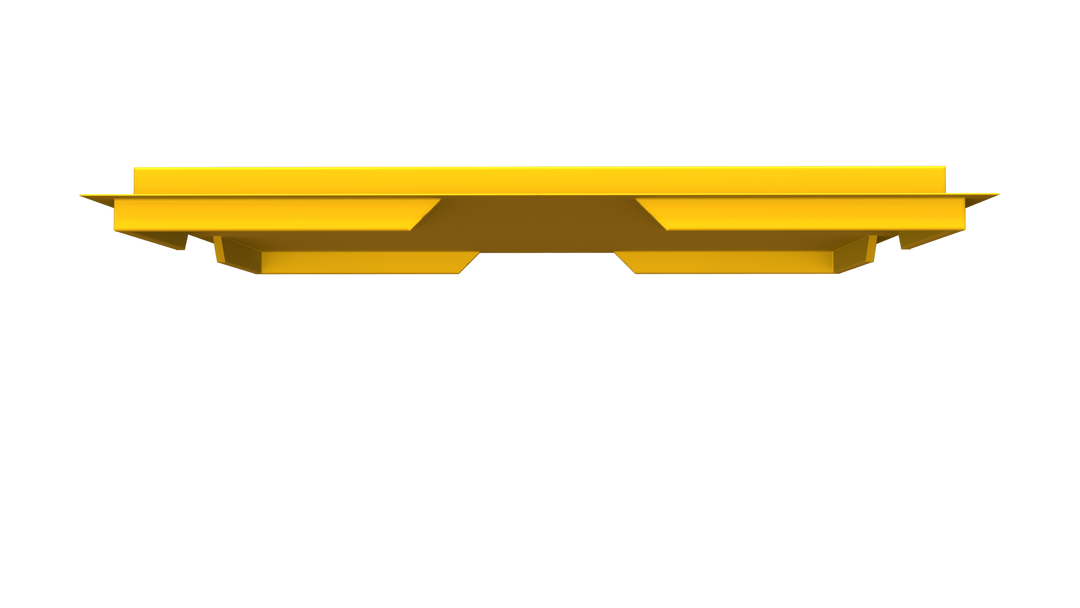

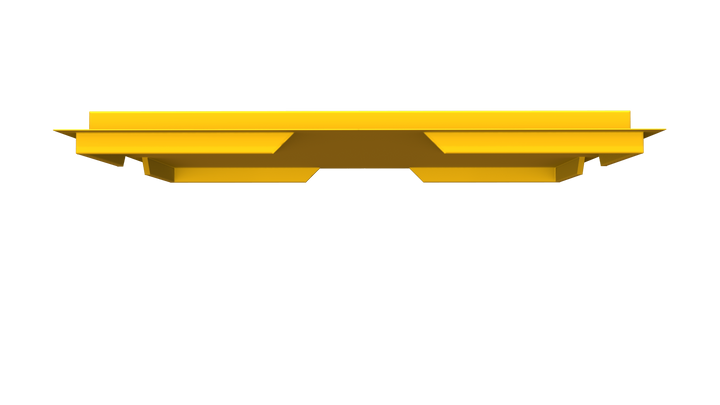

Optional watertight rain lid

The DURAPAN® 400 is designed to meet the rigorous demands of the construction industry, providing exceptional strength, durability, and reliability. Choose the DURAPAN® CROSBY HEAVY LIFT CRANE SERIES OSHA 400 for your next project and experience the difference in quality and performance.

 ULTRA-HARD 1/4” .250-GAUGE COLD-ROLLED STAINLESS STEEL

A pan made from 1/4” steel is 13.12 times stronger than one made from 12-gauge.

 HIGH-STRENGTH 4” X 5.4# STEEL CHANNEL PERIMETER REINFORCEMENTS

A pan made from 5.4 channel is extremely durable and very reliable. It is 79.81 times stronger than an open channel/headrail.

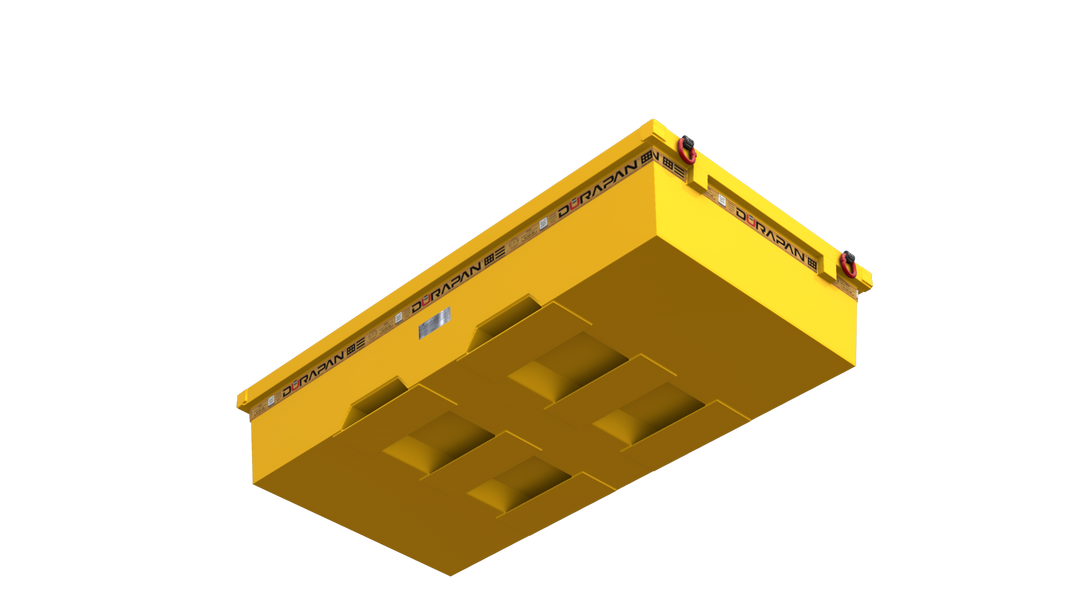

 TWO-WAY XL UNIVERSAL FORKLIFT POCKETS

Our engineered two-way XL fork pockets outperform other options.  Generously sized at 8”W. x 3”H. X ¼”@ 52” OD.

 ARMORED ENERGY-ABSORBING STEEL BUMPERS

Prevents punctures caused by inserting misaligned forks.  MAX pan’s are equipped with four (4) 8” x ¼” welded steel bumper pads that absorb and redirect impact force preventing punctures.

 Inter-stackable Design:

Our innovative inter-stackable feature allows for easy and efficient storage, transport, and handling of multiple pans, maximizing space and convenience on the job site.

 Watertight Construction:

The DURAPAN® SUPER HEAVY LIFT CRANE SERIES OSHA 400 is watertight, ensuring containment and prevention of leaks or spills, protecting your job site and the environment.

 ENGINEER CERTIFIED LEAKPROOF STEEL CONTAINMENT

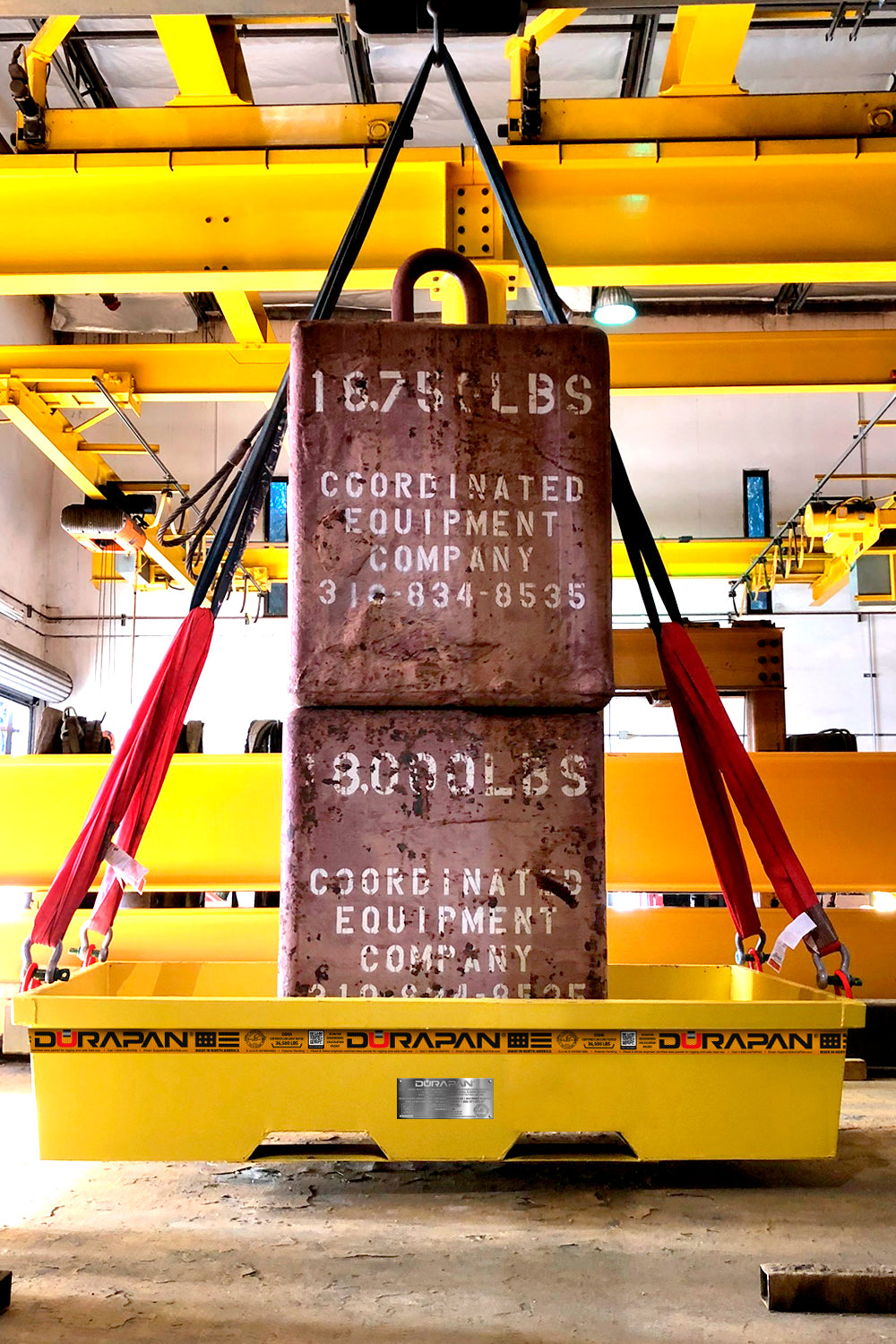

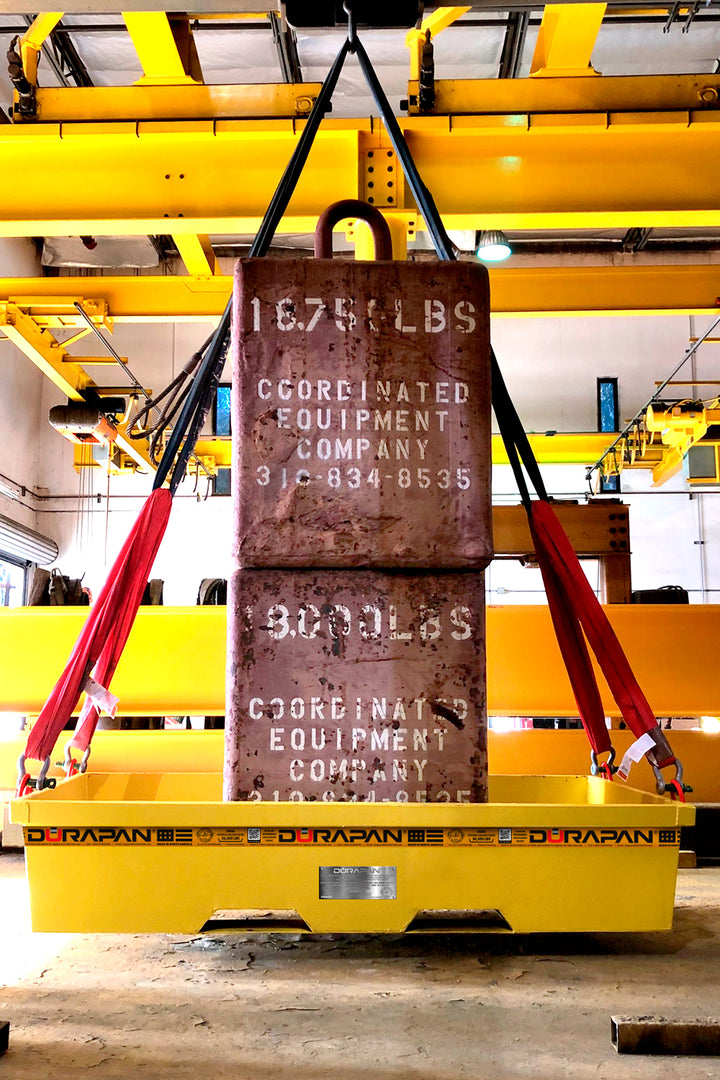

 O.S.H.A Certified Lab Load Tested With 36,500 Lbs. Link to load test certificate

 Engineering Calculation Packet Available upon Request Link to enter email and request

 High Strength 1/4” Steel Floors

 High Strength 7 Gauge Steel Walls

 Hand Welded Continuous Seams

 11” Wide Angled Inclosed Forklift Pockets Spaced 40” to OD

 Engineered Stealth design floor & tapered interior walls prevent materials from sticking

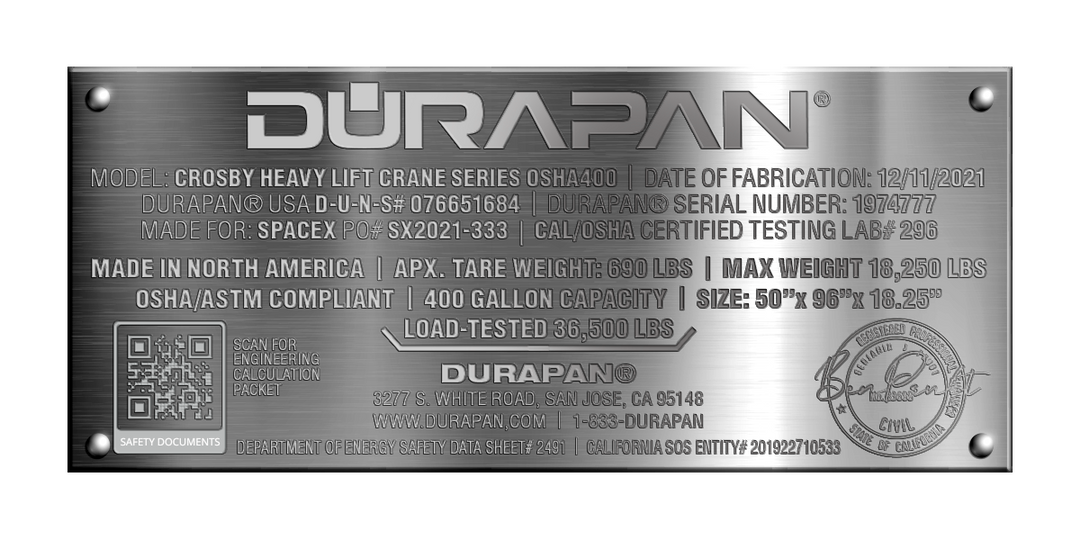

 Serialized metal Equipment Identification plated riveted to front panel of each pan.

 Serialized metal Equipment safety use plate attached to each pan

 Painted Safety Yellow

 Easy Release Nesting Spacers allow inter-stacking of multiple pans and prevent sticking.

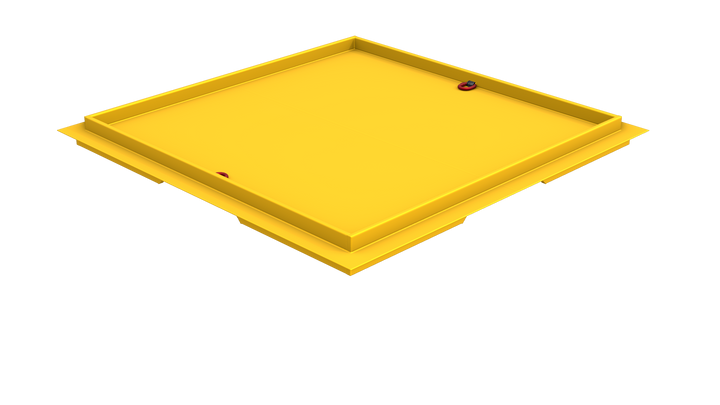

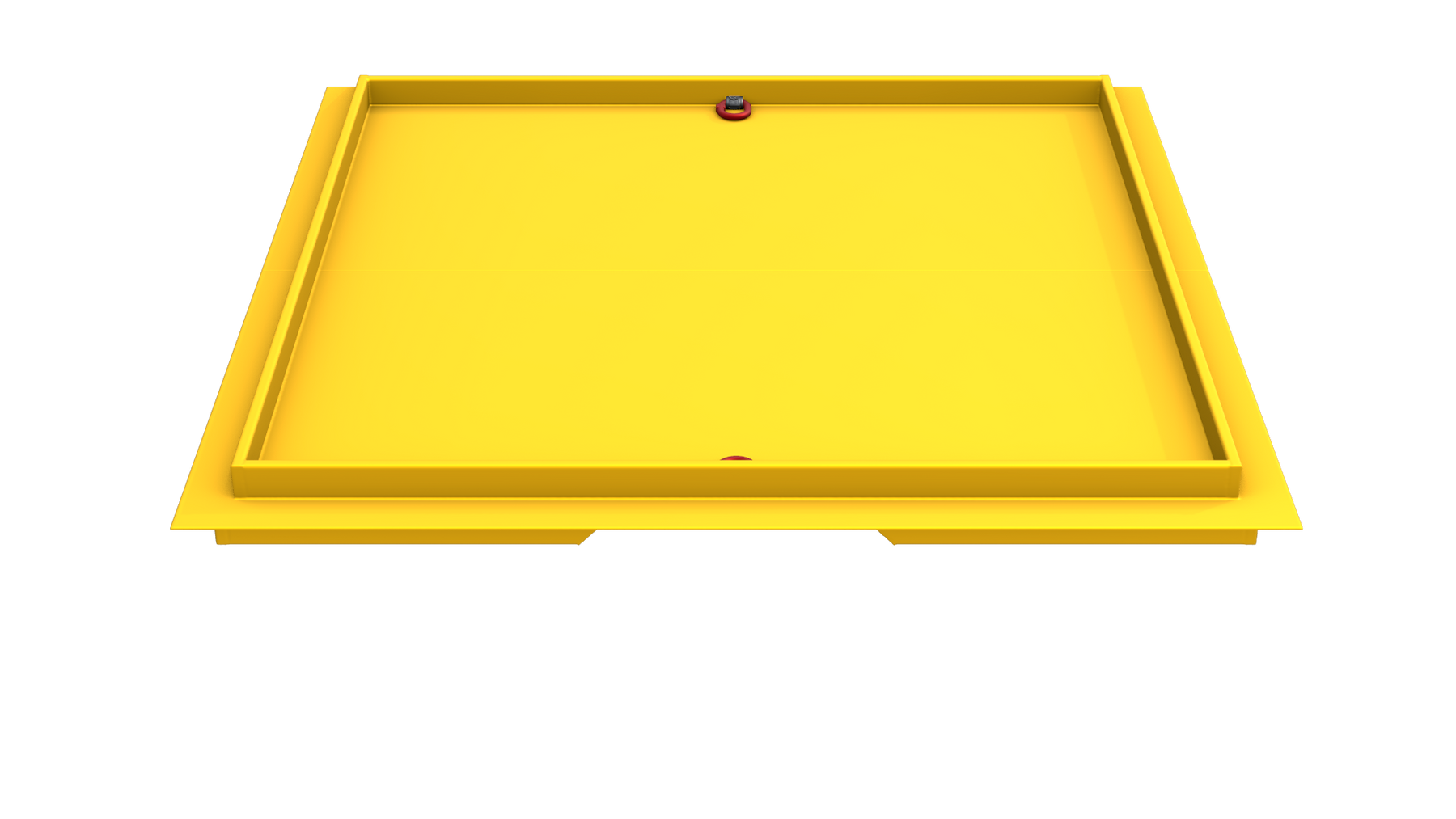

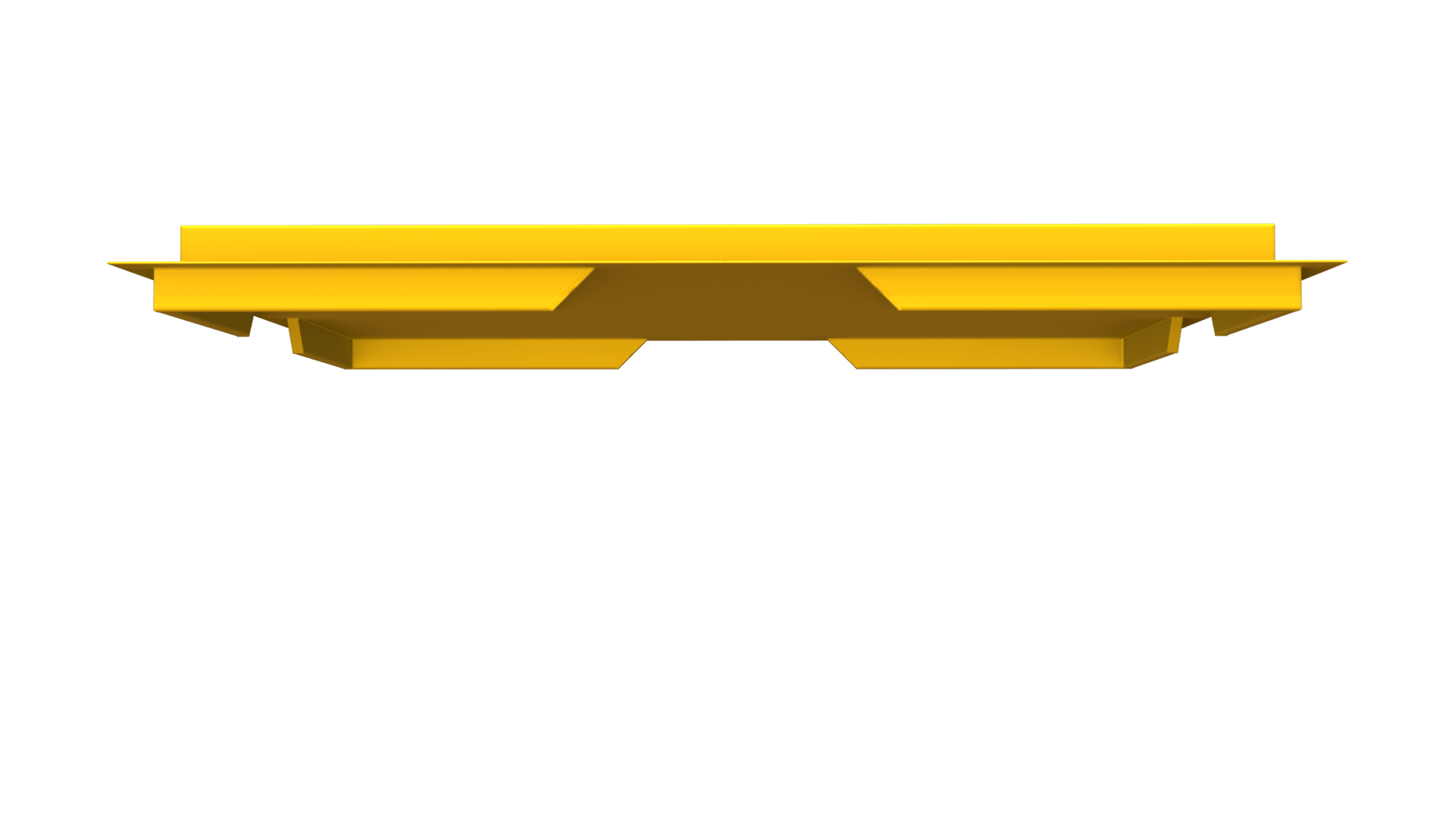

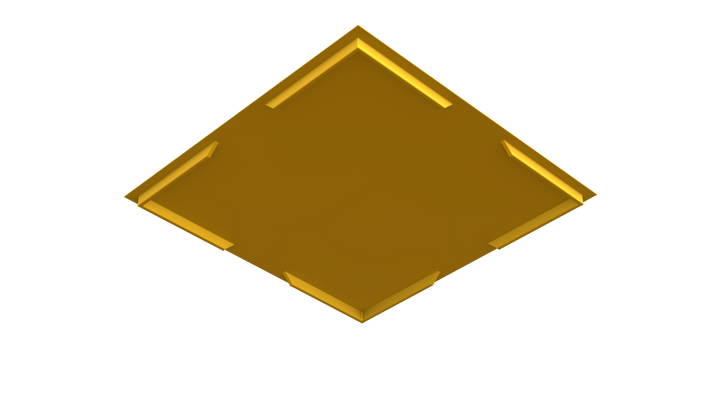

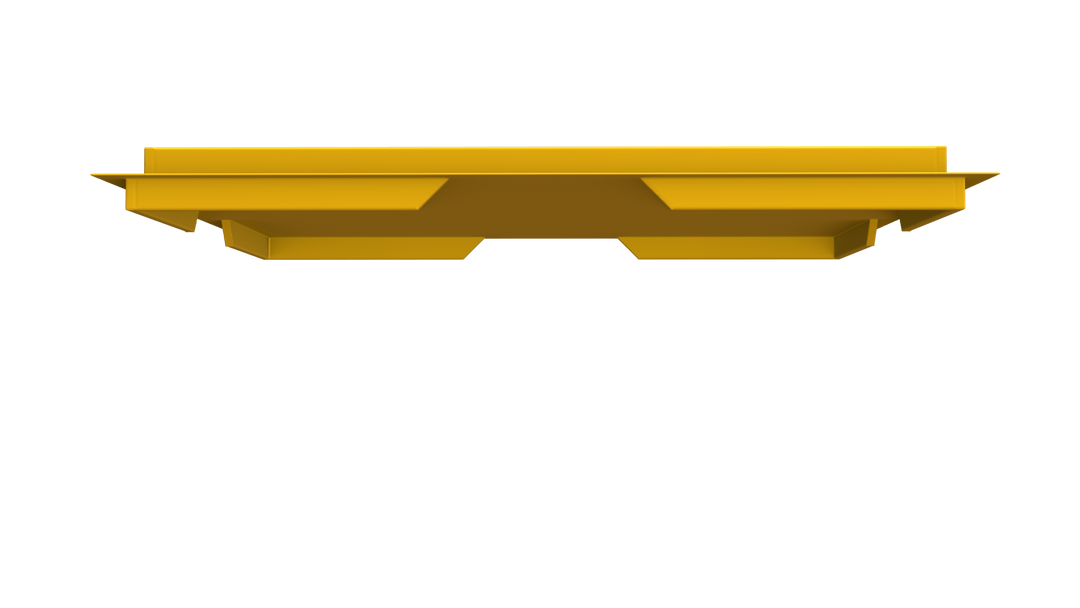

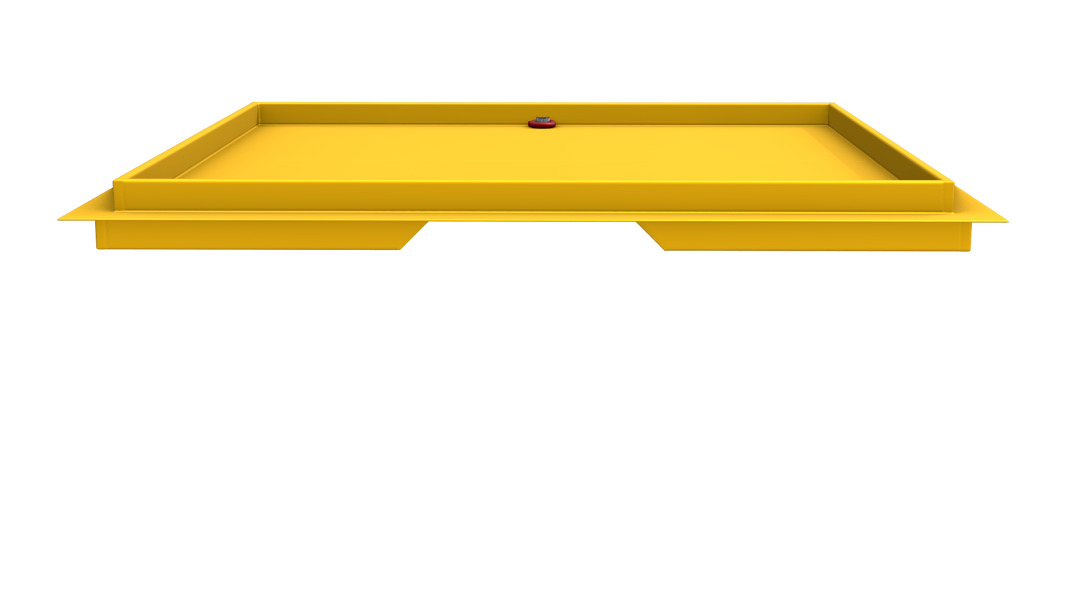

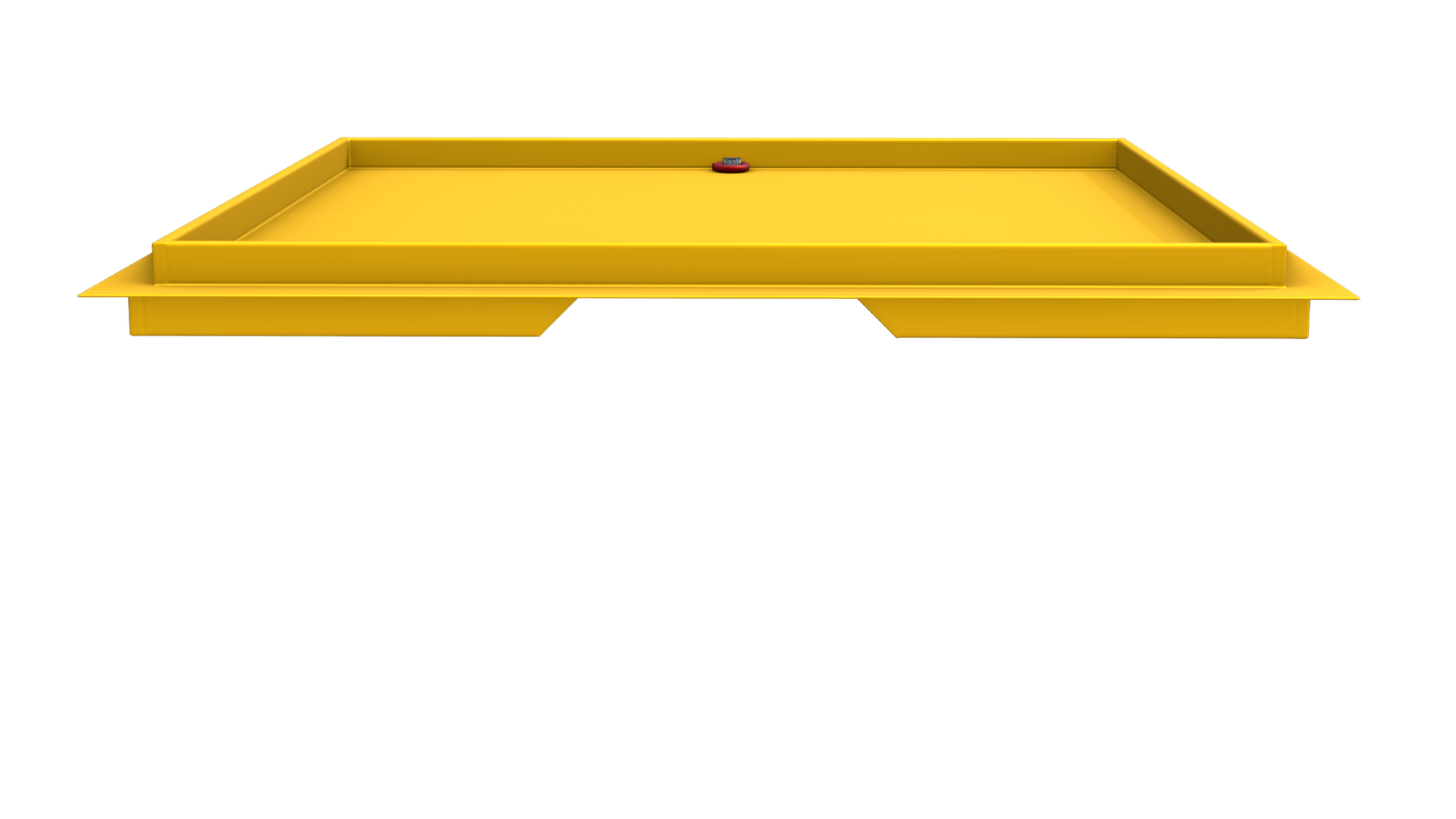

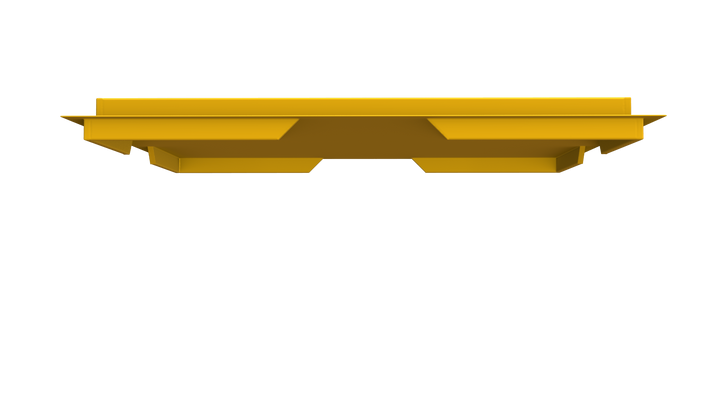

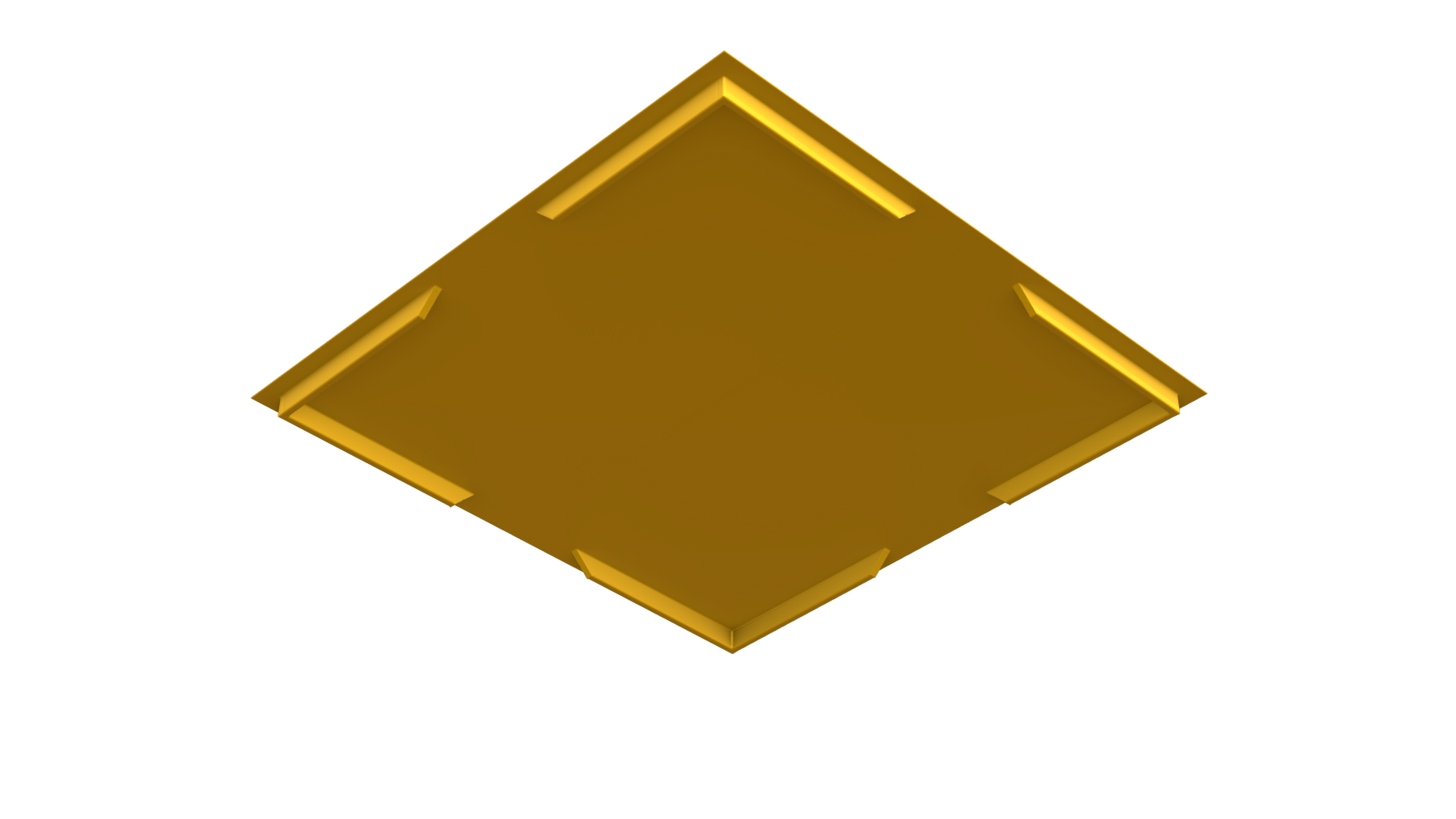

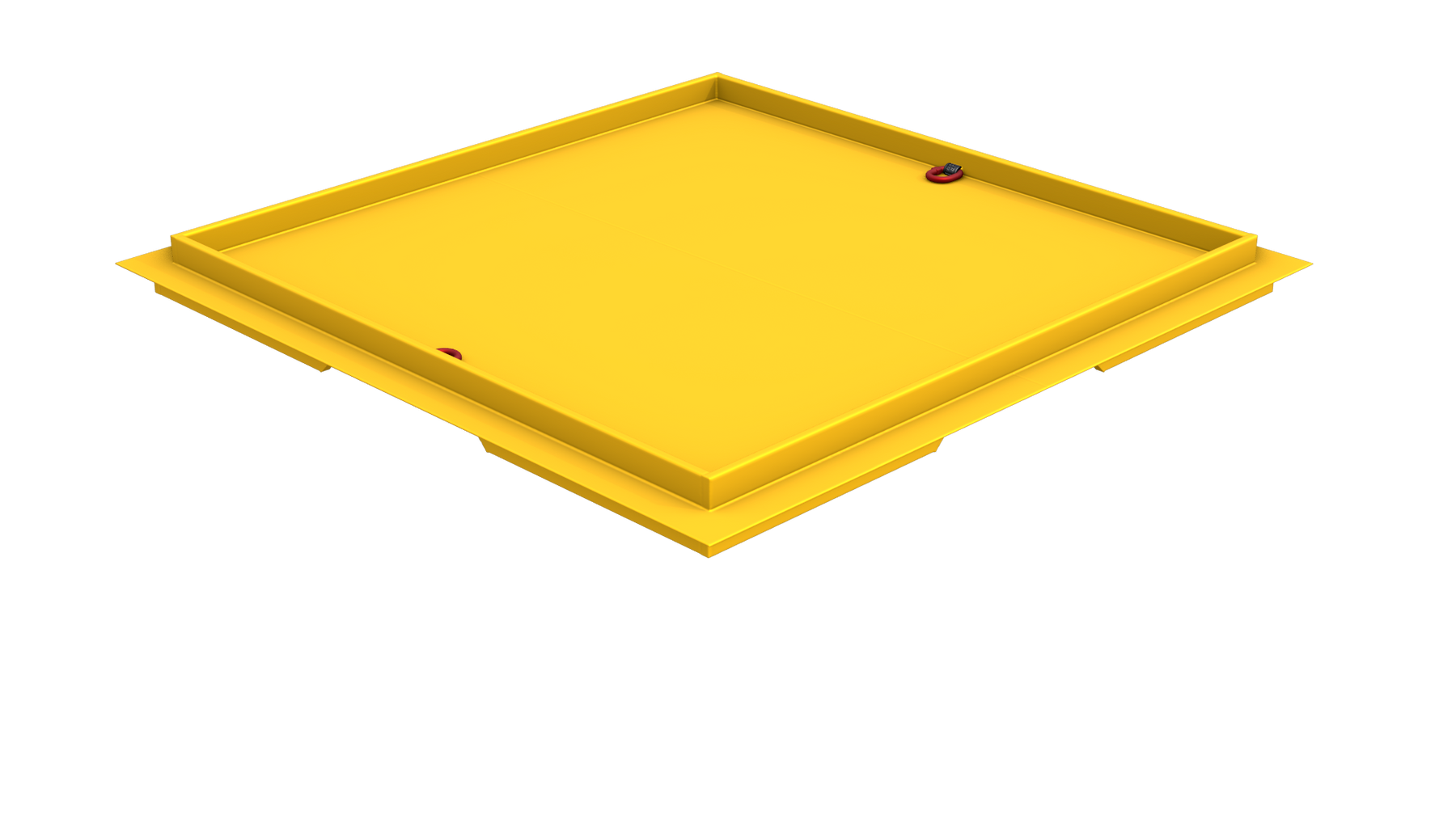

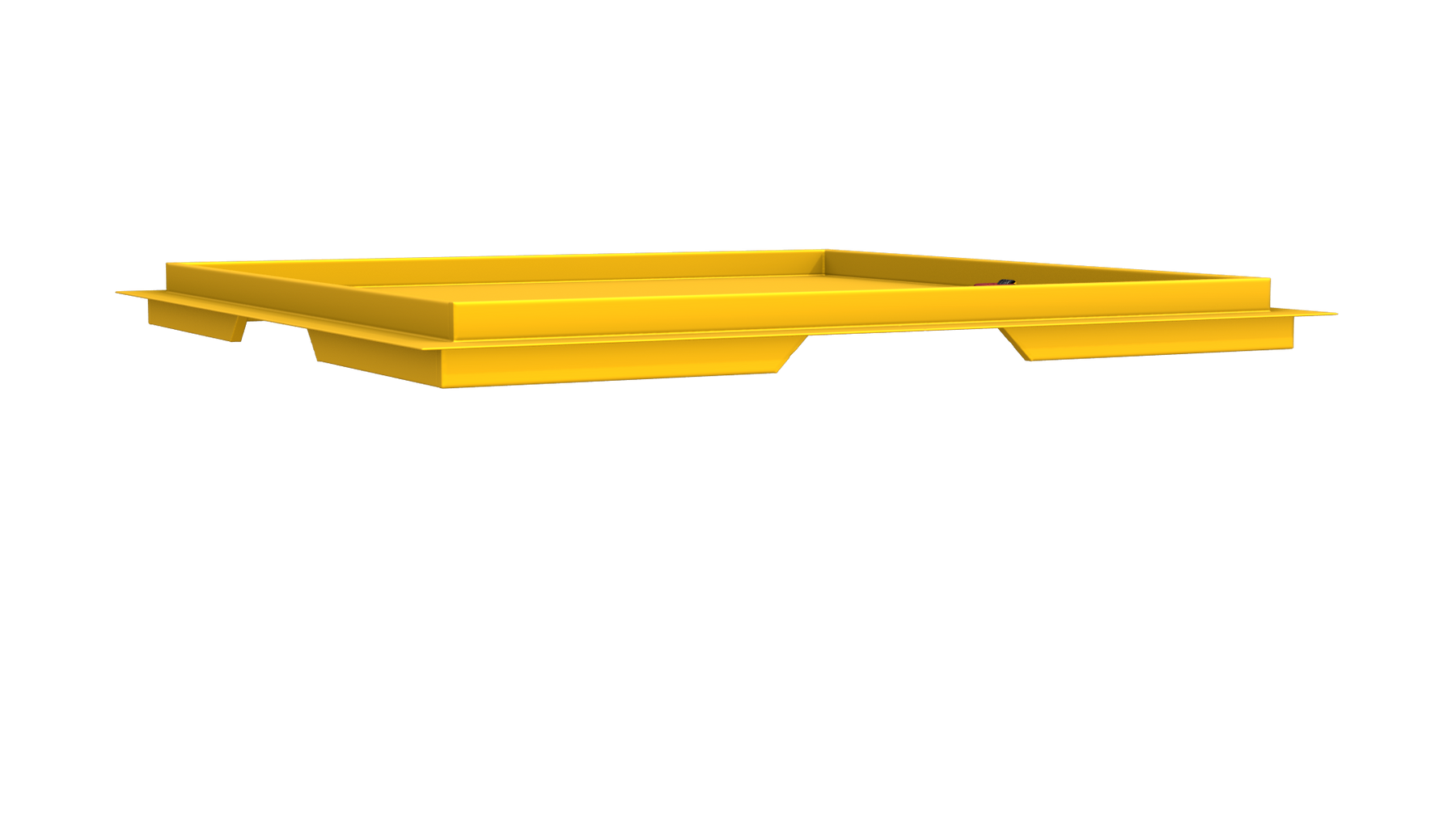

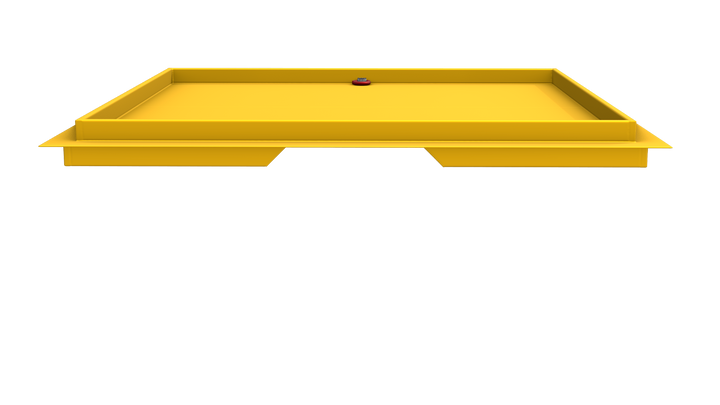

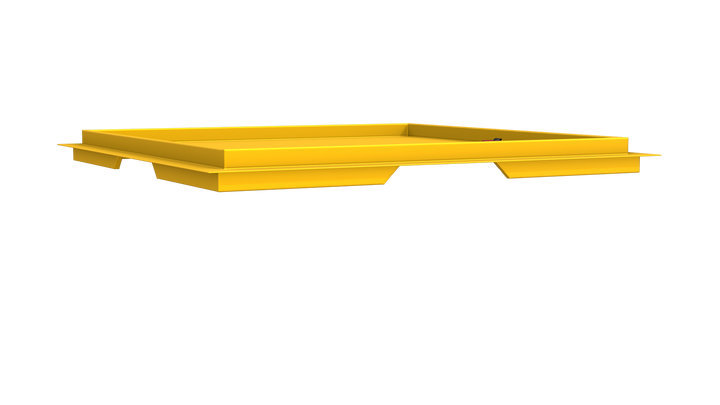

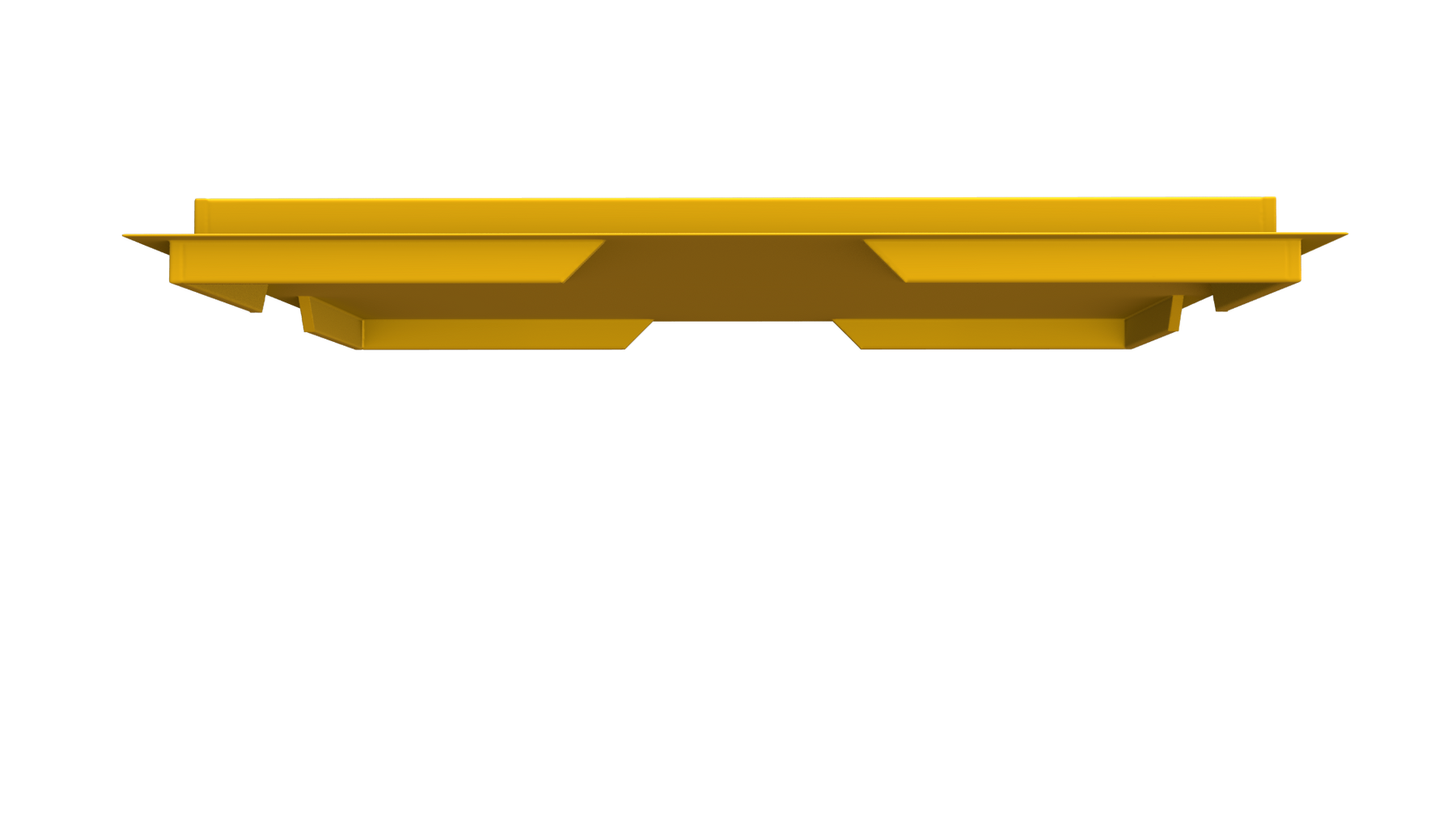

Steel Watertight Lids with Nitrile seal available.
