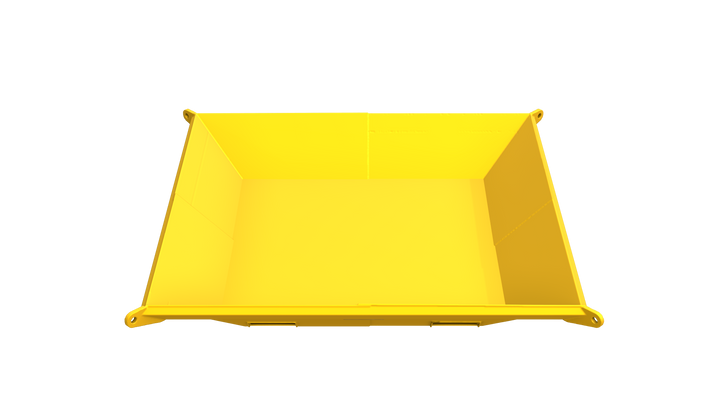

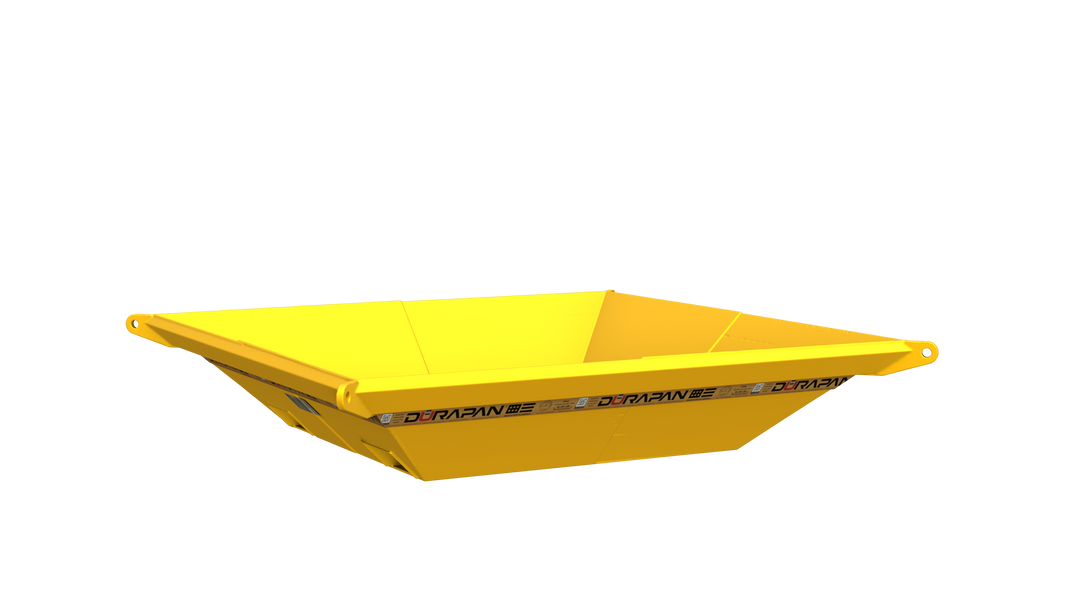

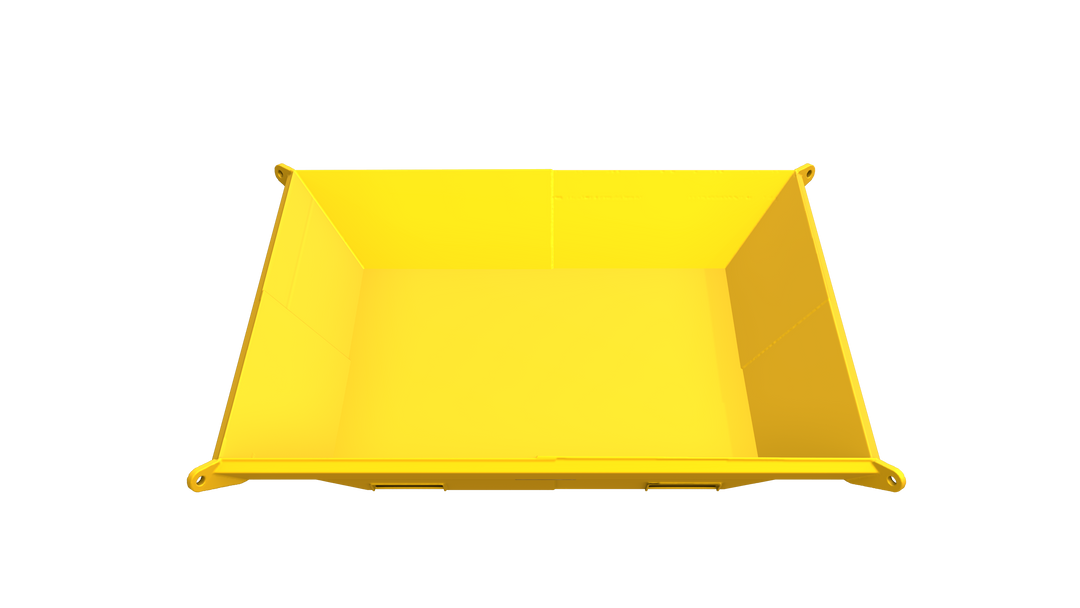

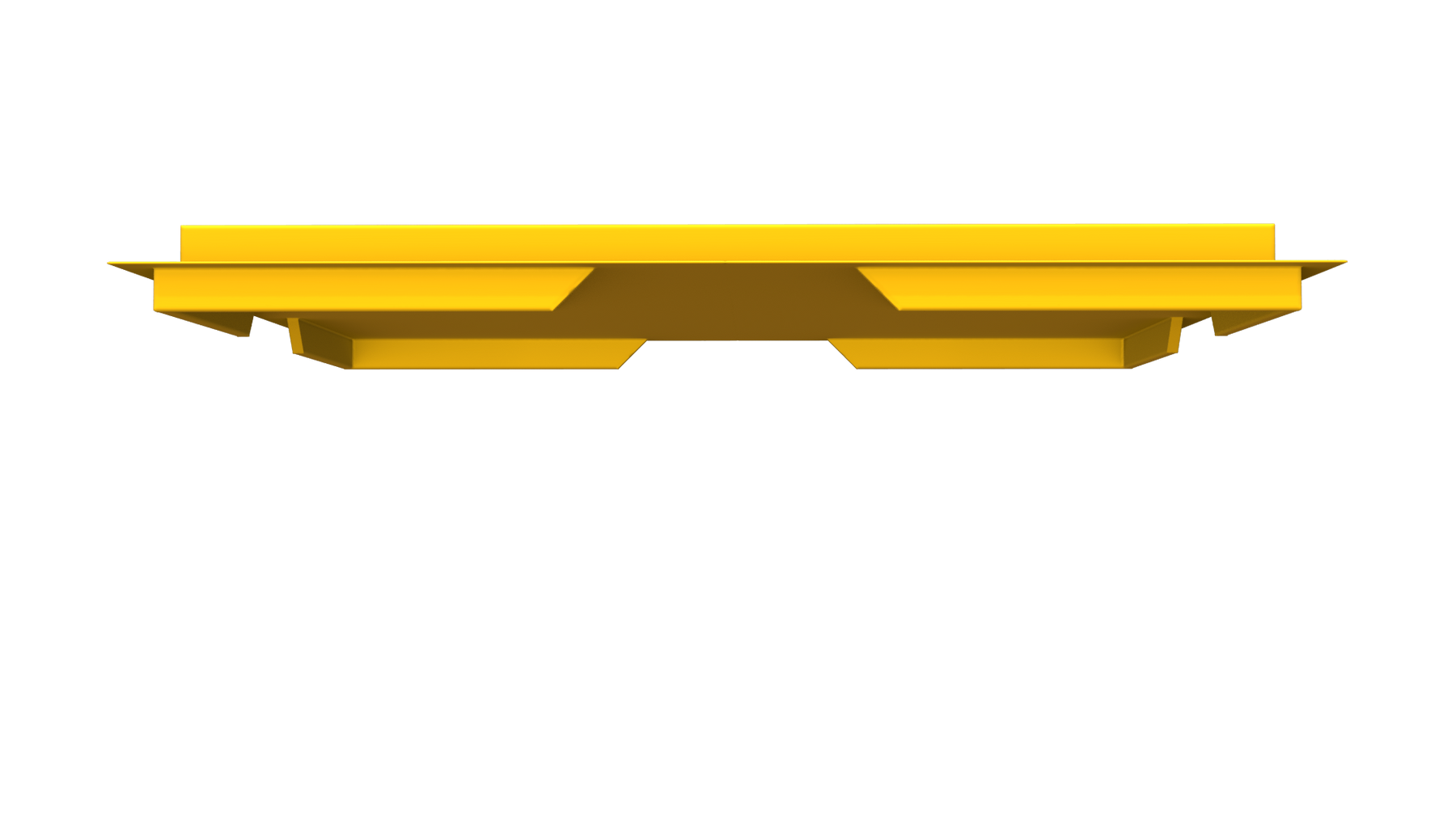

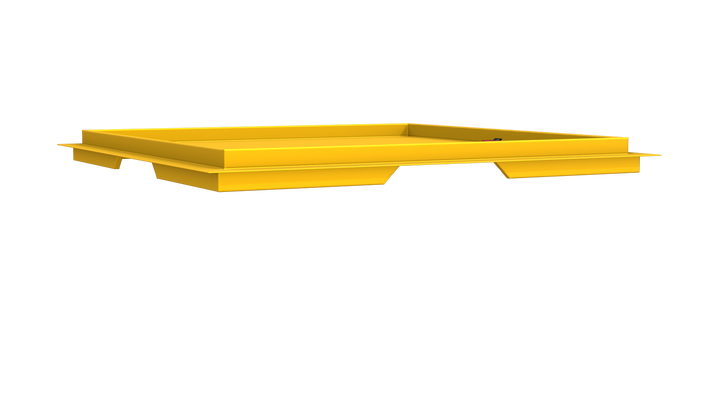

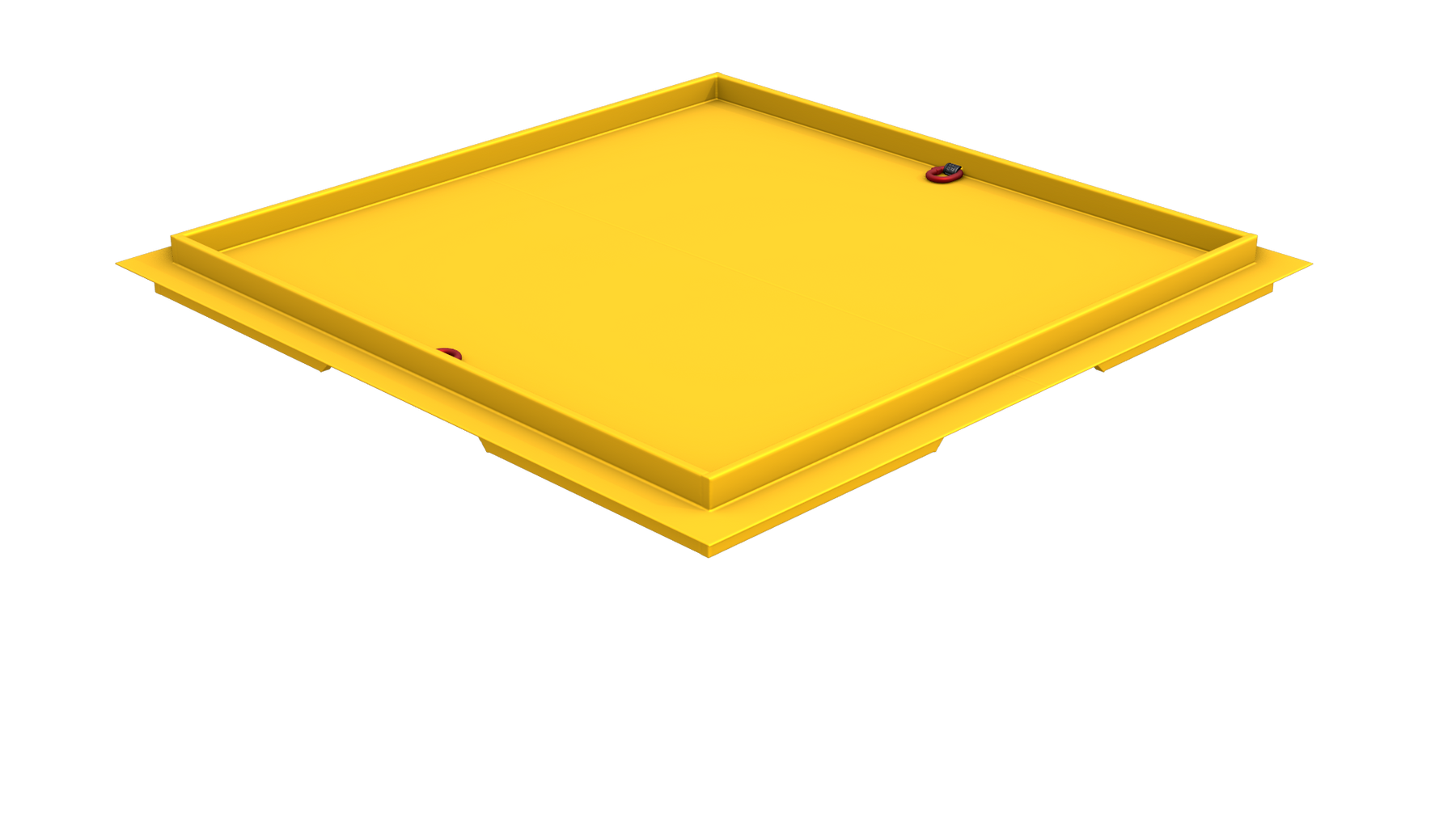

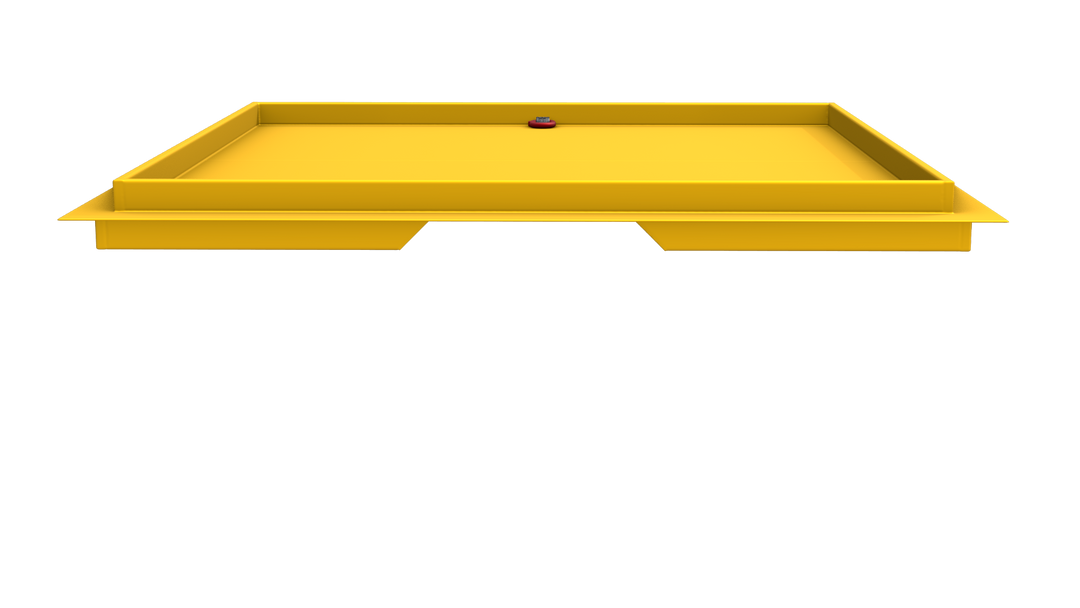

Super Duty Concrete Washout Pan 72"x72"x14" 154 gal. 4 ASTM 1 1/8" pad eye style + flat floor

Super Duty Concrete Washout Pan 72"x72"x14" 154 gal. 4 ASTM 1 1/8" pad eye style + flat floor

Regular price $1,999.00 USD
Regular price $2,700.00 USD Sale price $1,999.00 USD
Sale Sold out
Shipping calculated at checkout.

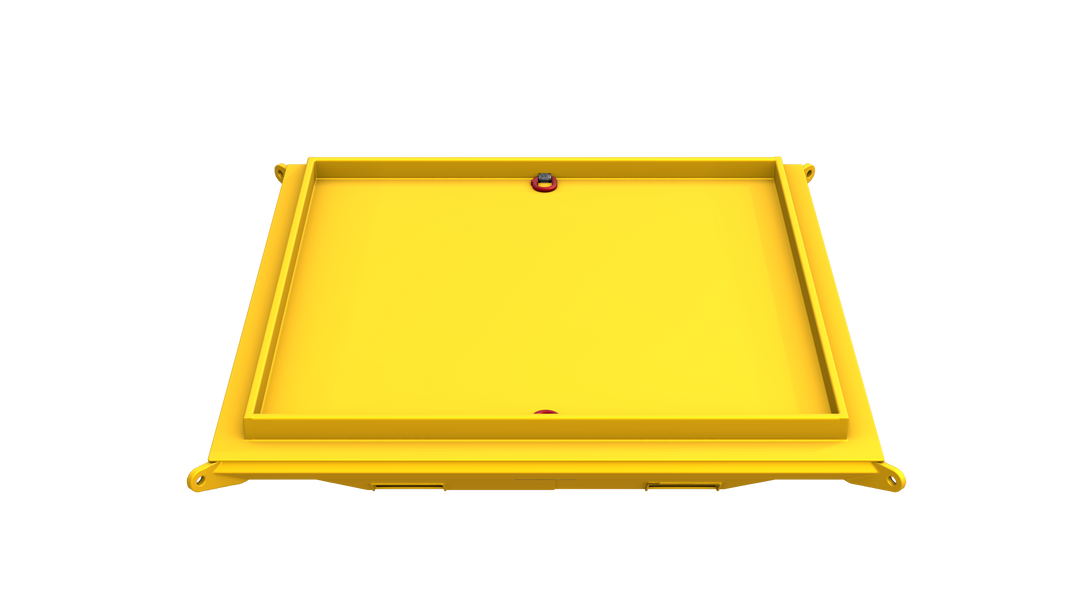

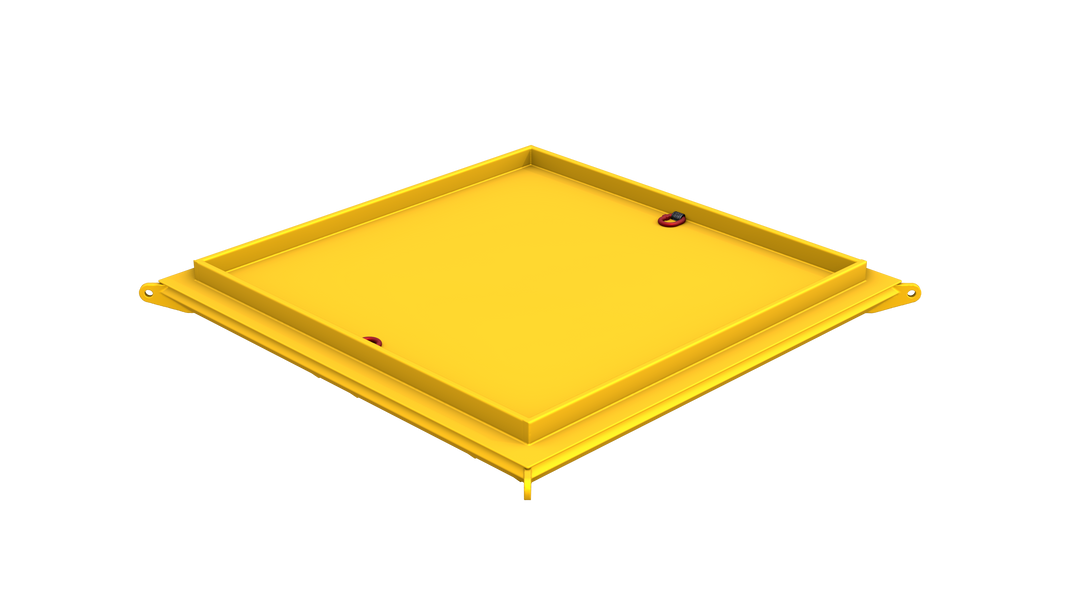

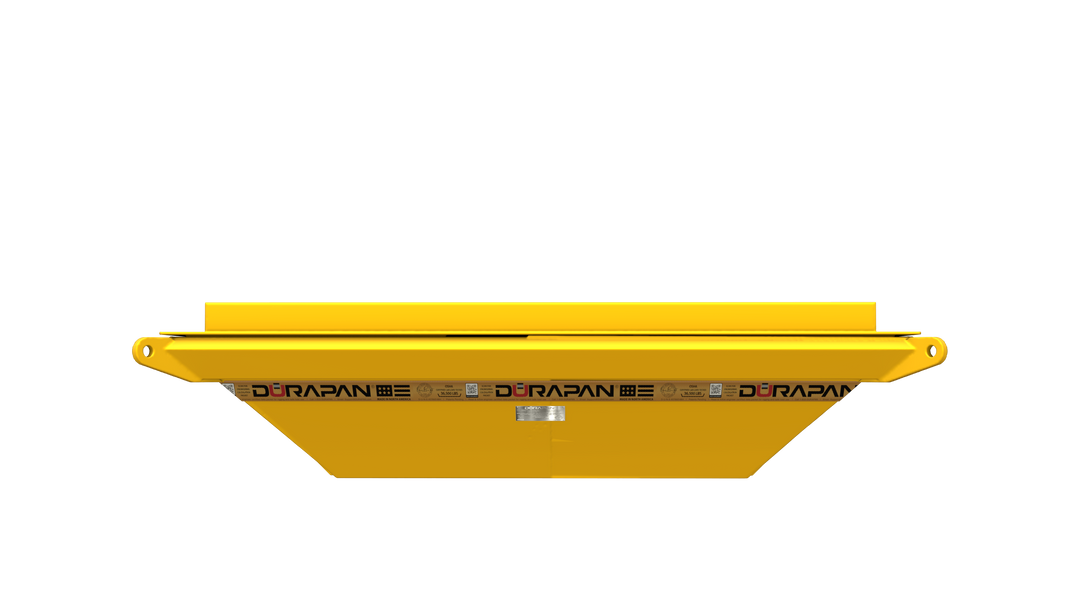

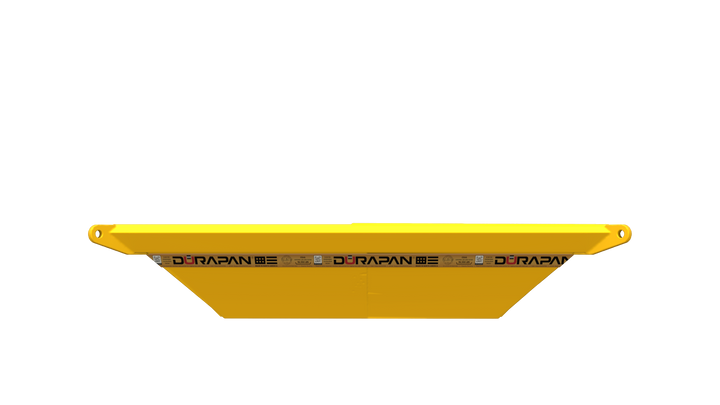

Introducing the DURAPAN® 727214 154 – a robust and versatile containment solution designed specifically for concrete mixer washout and pump-priming. Flat floor design.

UPC: 860010600030

Do you need a rain cover for SWPPP? Select HERE

Please click here to download the load test certificates and safety information

DURAPAN Safety Specs 160

Load Test Certificate



County of origin: North America

Warranty: Lifetime

Dimensions: 72 x 72 x 14"

Actual height: 14"

Designed for concrete pump truck hopper washout and concrete pump truck priming

Liquid and solid volume:

154 Gallon capacity
616 US Liquid quart
20.5 Cubic foot
583 Liter

Approximate tare weight: 942 lbs

ASTM material grades:

Plate A36

Pad eye plate A572 Gr. 50

Channel: A36

Angle: A36

Weld: AWS E70XX

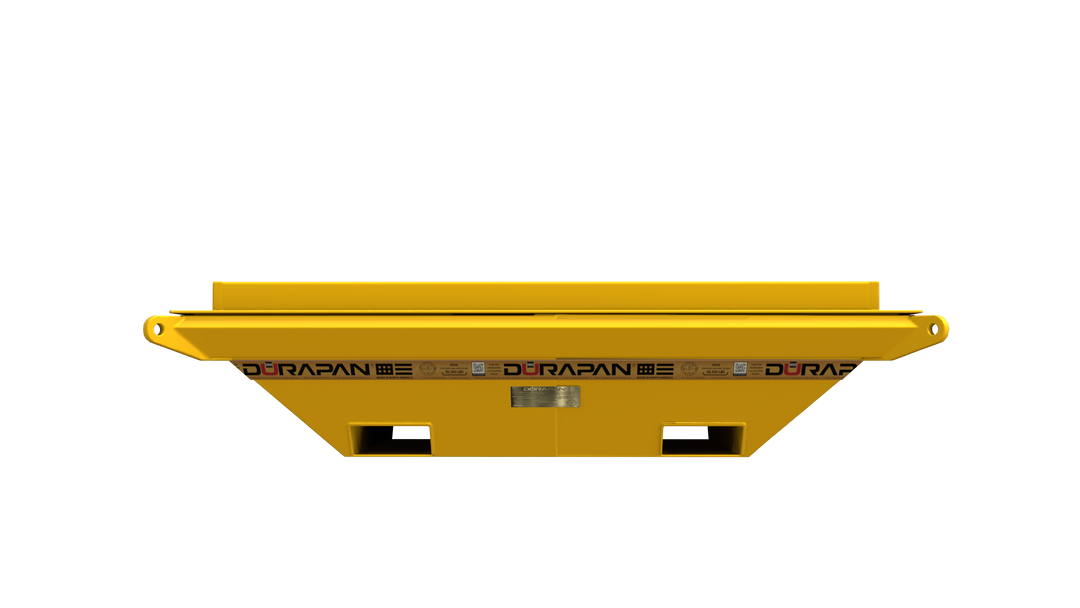

Lifting links: Pad eye hole size 1 1/8

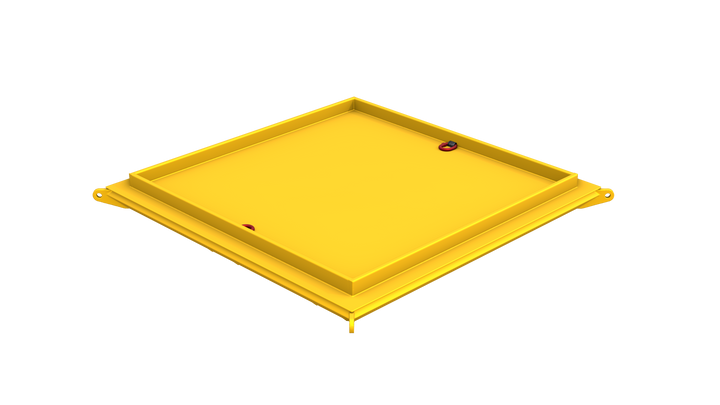

Optional watertight rain lid

The DURAPAN® 727214 154 is designed to meet the rigorous demands of the construction industry, providing exceptional strength, durability, and reliability. Choose the DURAPAN® CRANE SERIES OSHA 315 for your next project and experience the difference in quality and performance.

ULTRA-HARD 1/4” .250-GAUGE COLD-ROLLED STAINLESS STEEL

A pan made from 1/4” steel is 13.12 times stronger than one made from 12-gauge.

HIGH-STRENGTH 4” X 5.4# STEEL CHANNEL PERIMETER REINFORCEMENTS

A pan made from 5.4 channel is extremely durable and very reliable. It is 79.81 times stronger than an open channel/headrail.

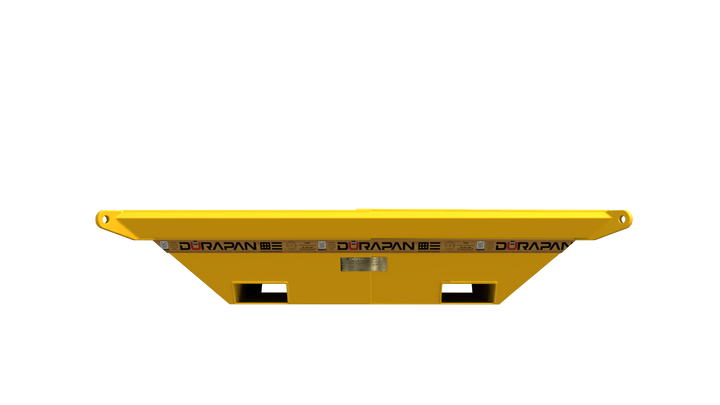

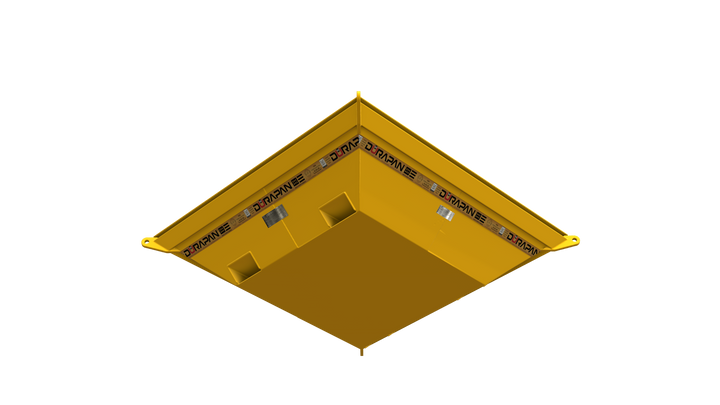

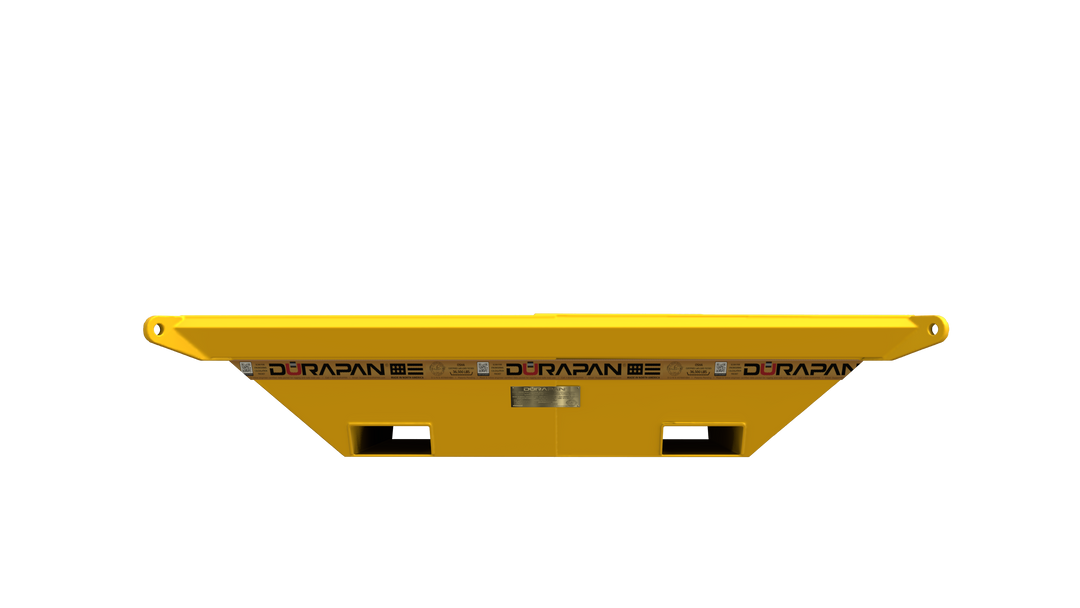

TWO-WAY XL UNIVERSAL FORKLIFT POCKETS

Our engineered two-way XL fork pockets outperform other options.  Generously sized at 8”W. x 3”H. X ¼”@ 52” OD.

ARMORED ENERGY-ABSORBING STEEL BUMPERS

Prevents punctures caused by inserting misaligned forks.  MAX pan’s are equipped with four (4) 8” x ¼” welded steel bumper pads that absorb and redirect impact force preventing punctures.

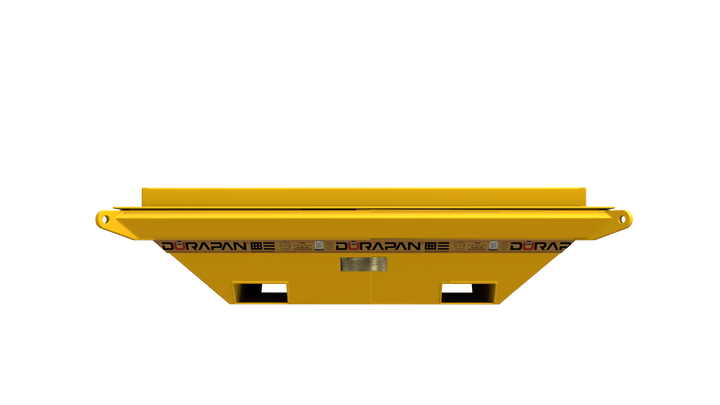

Inter-stackable Design:

Our innovative inter-stackable feature allows for easy and efficient storage, transport, and handling of multiple pans, maximizing space and convenience on the job site.

Watertight Construction:

The DURAPAN® 727214 154  is watertight, ensuring containment and prevention of leaks or spills, protecting your job site and the environment.

ENGINEER CERTIFIED LEAKPROOF STEEL CONTAINMENT

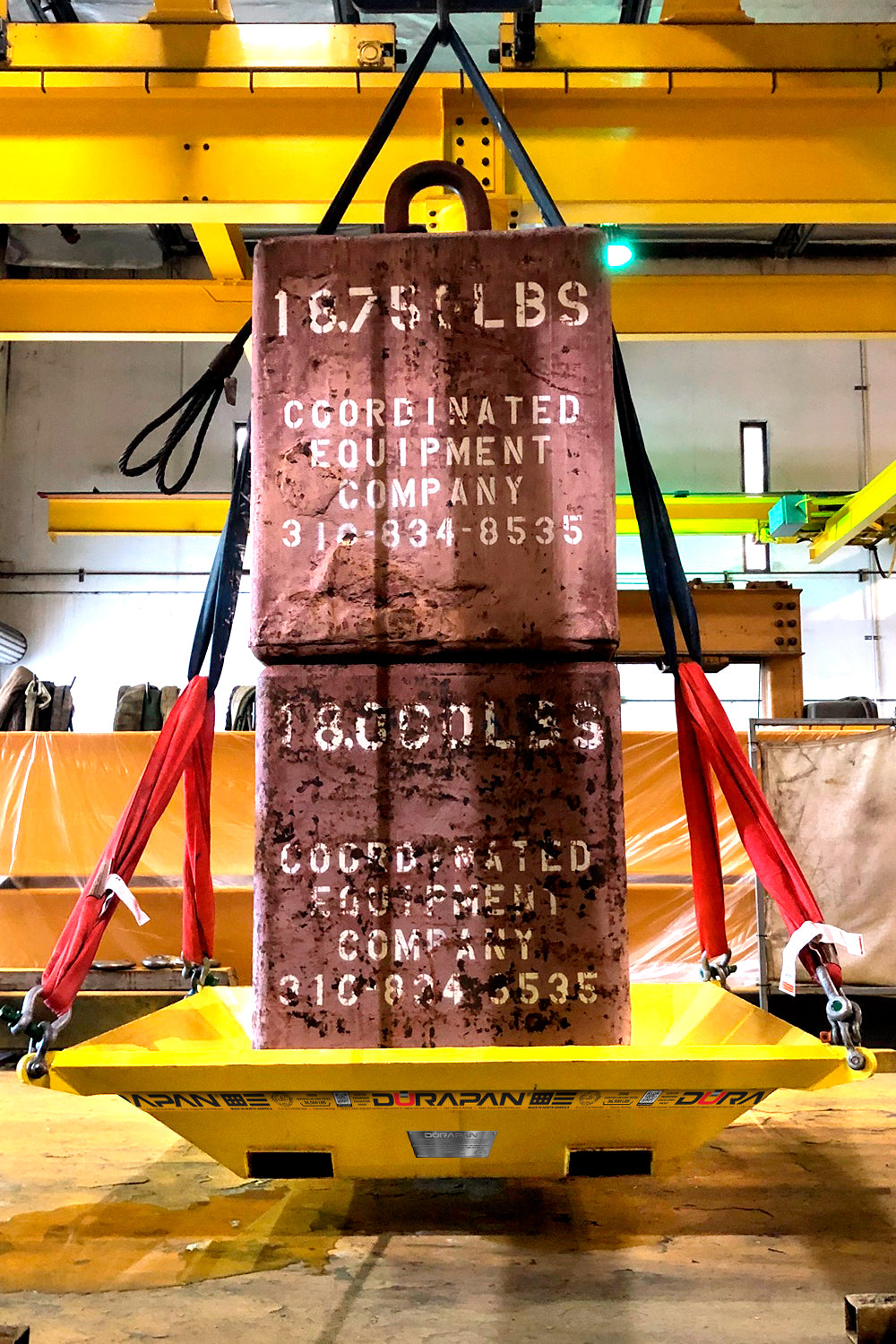

O.S.H.A Certified Lab Load Tested With 36,500 Lbs. Link to load test certificate

Engineering Calculation Packet Available upon Request Link to enter email and request

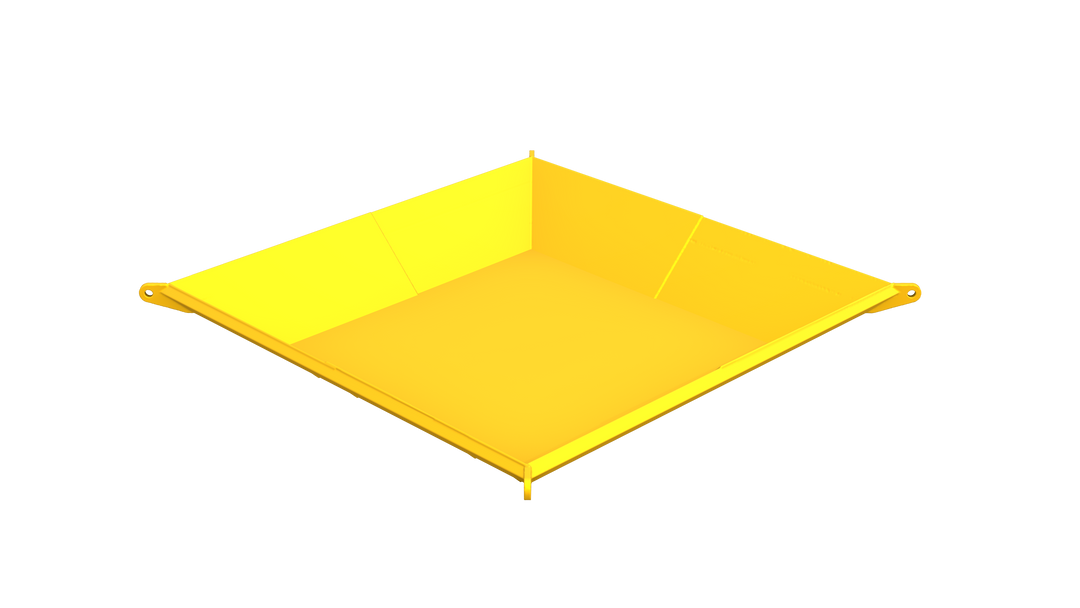

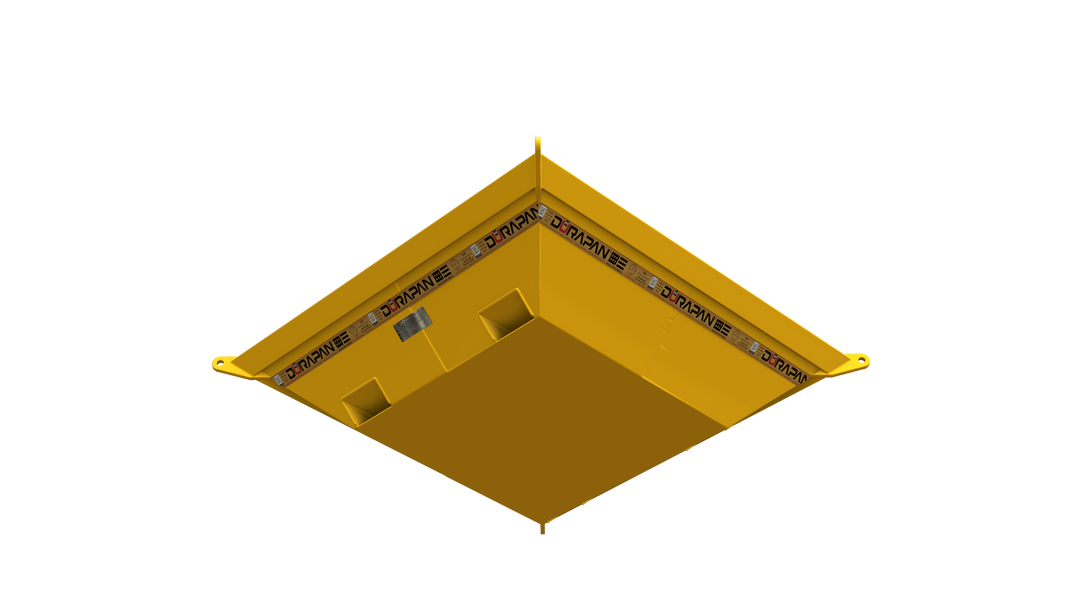

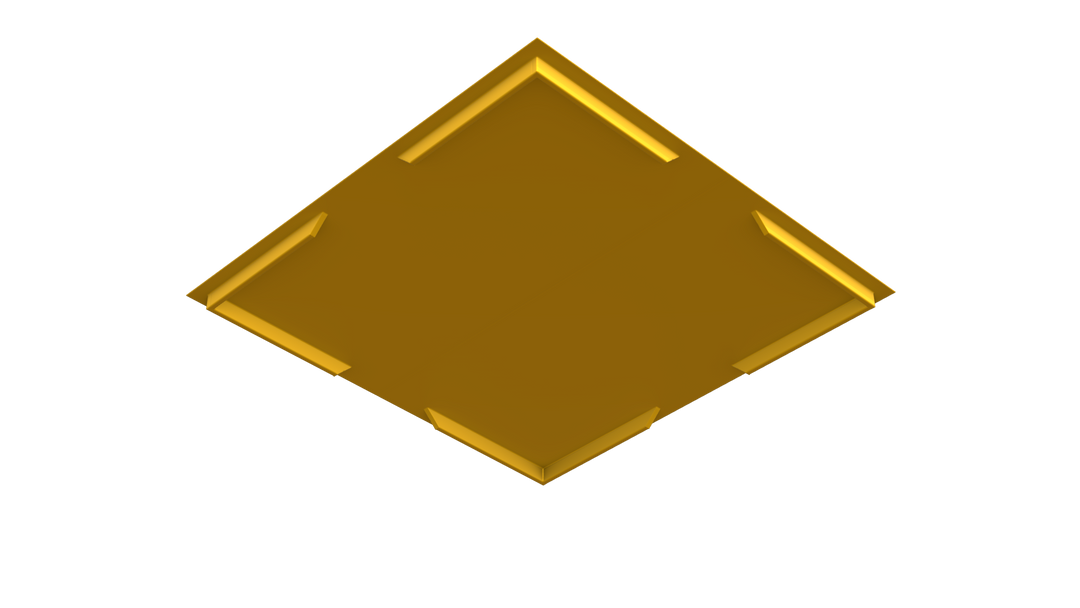

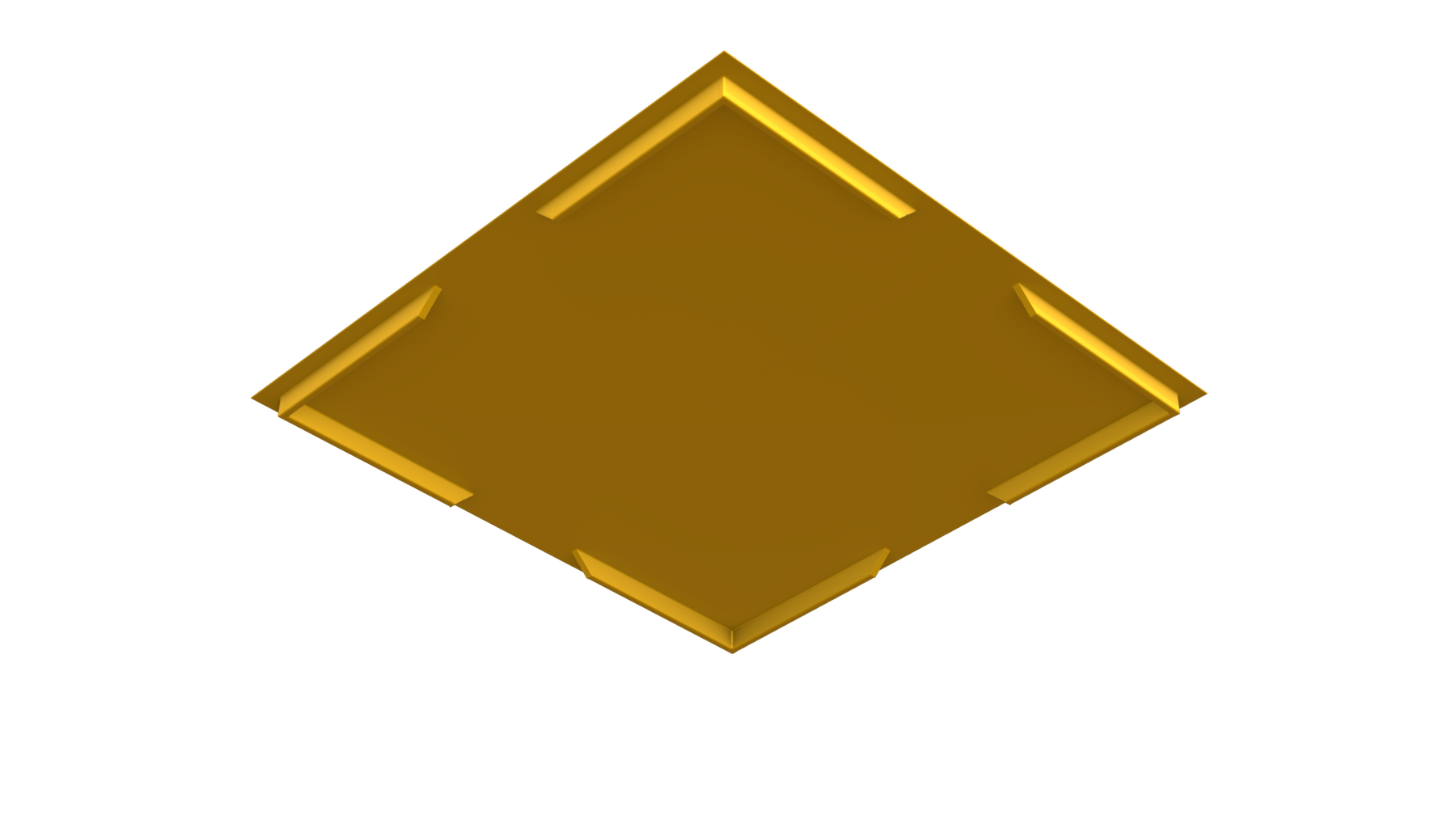

High Strength 1/4” Steel FLAT Floor

High Strength 1/4" Overlaped Steel Walls

Hand Welded Continuous Seams

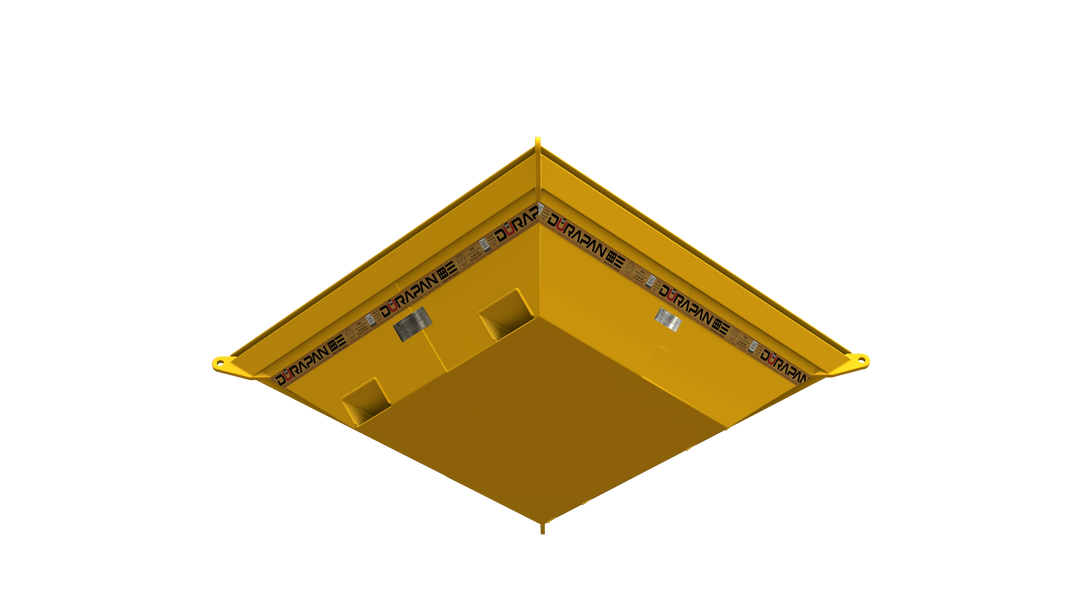

11” Wide Angled Inclosed Forklift Pockets Spaced 40” to OD

Engineered Stealth design floor & tapered interior walls prevent materials from sticking

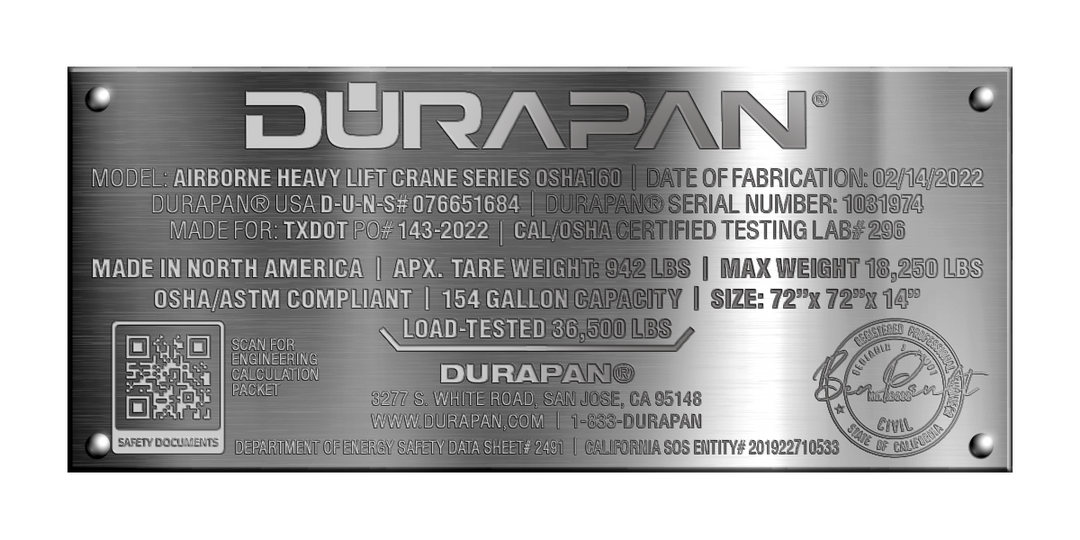

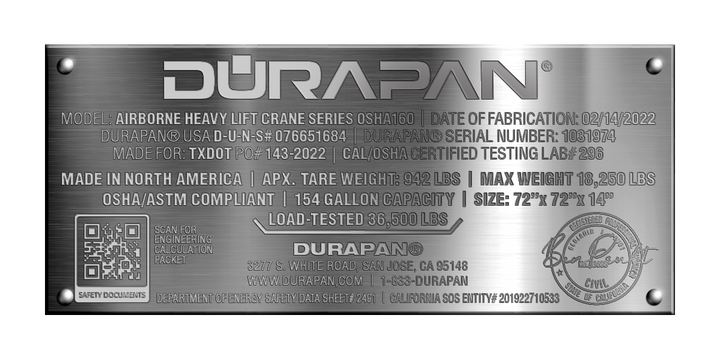

Serialized metal Equipment Identification plated riveted to front panel of each pan.

Serialized metal Equipment safety use plate attached to each pan

Painted Safety Yellow

Easy Release Nesting Spacers allow inter-stacking of multiple pans and prevent sticking.

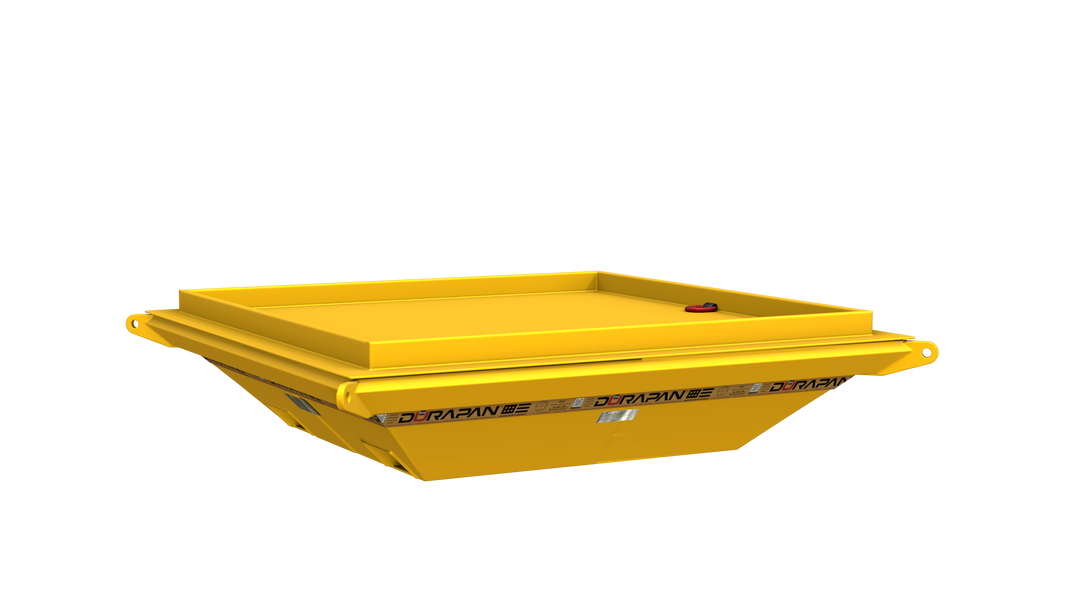

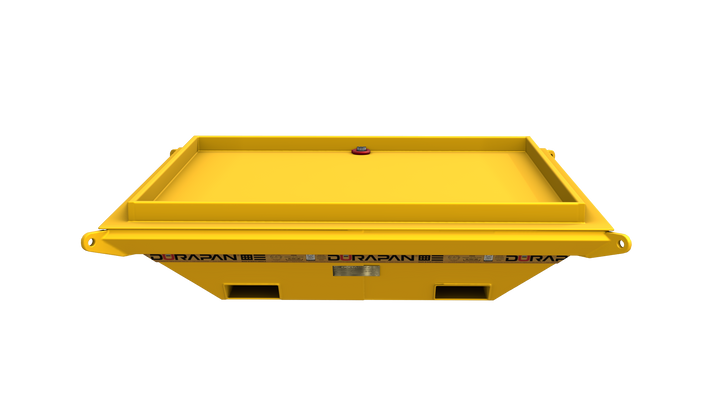

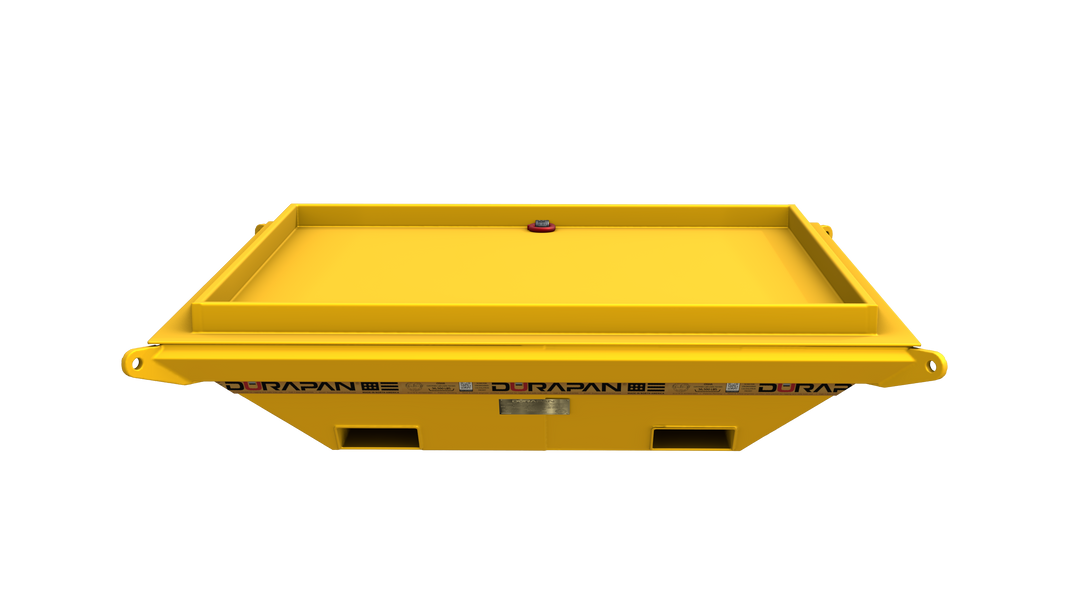

Steel Watertight Lids with Nitrile seal available.
