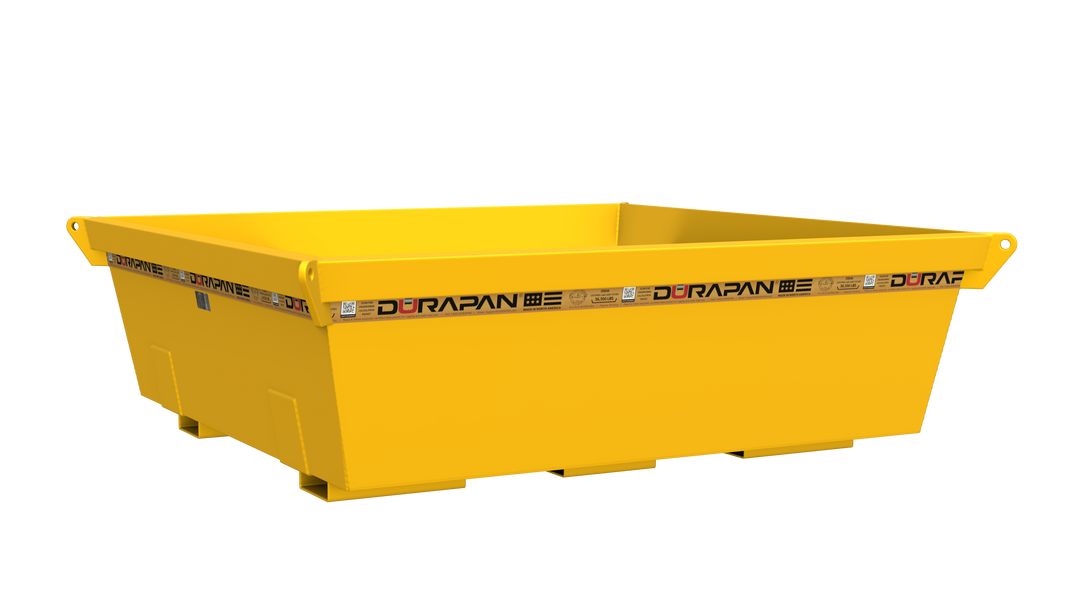

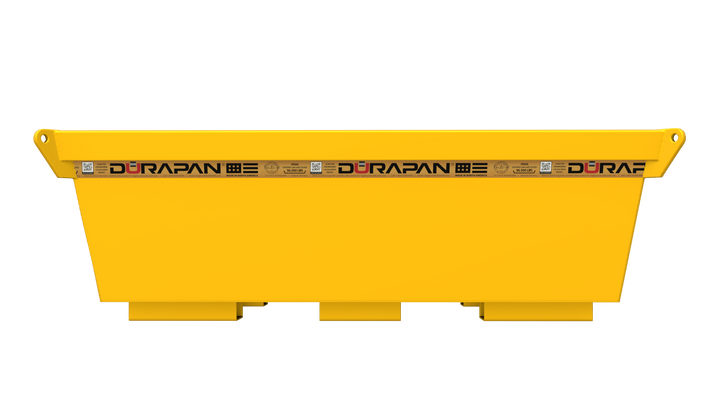

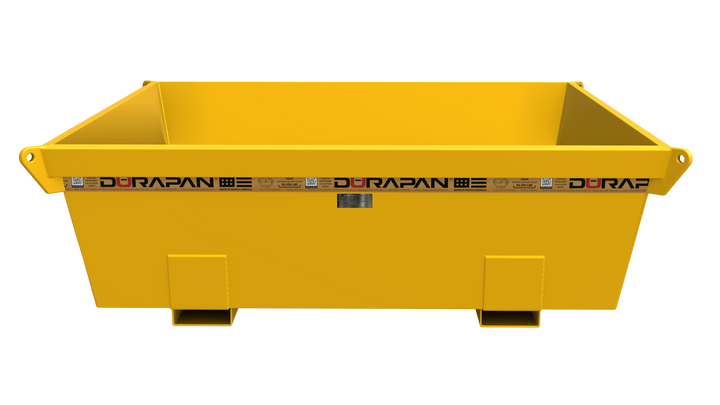

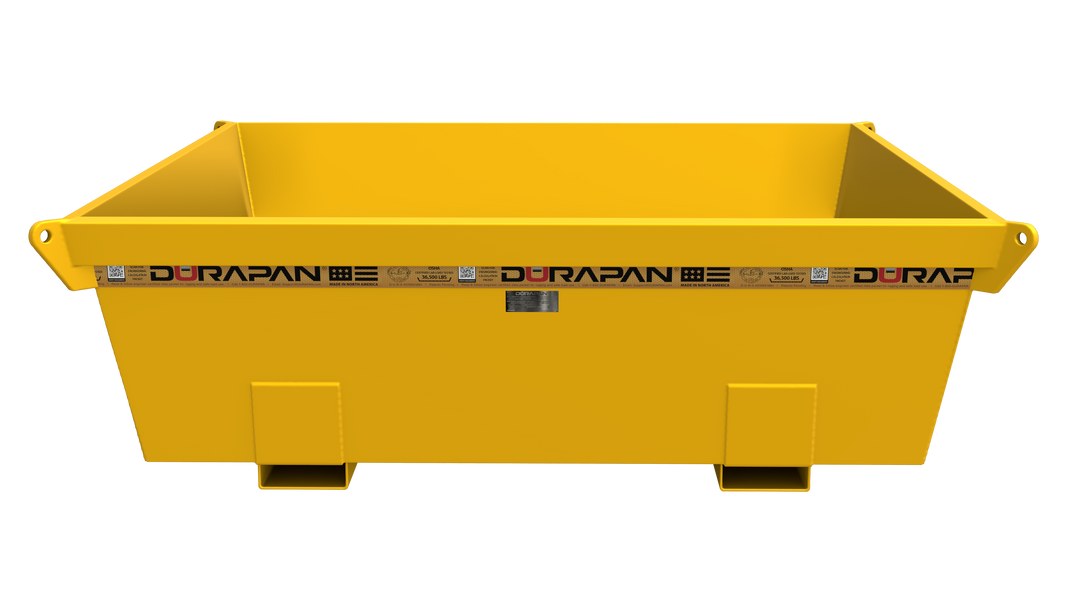

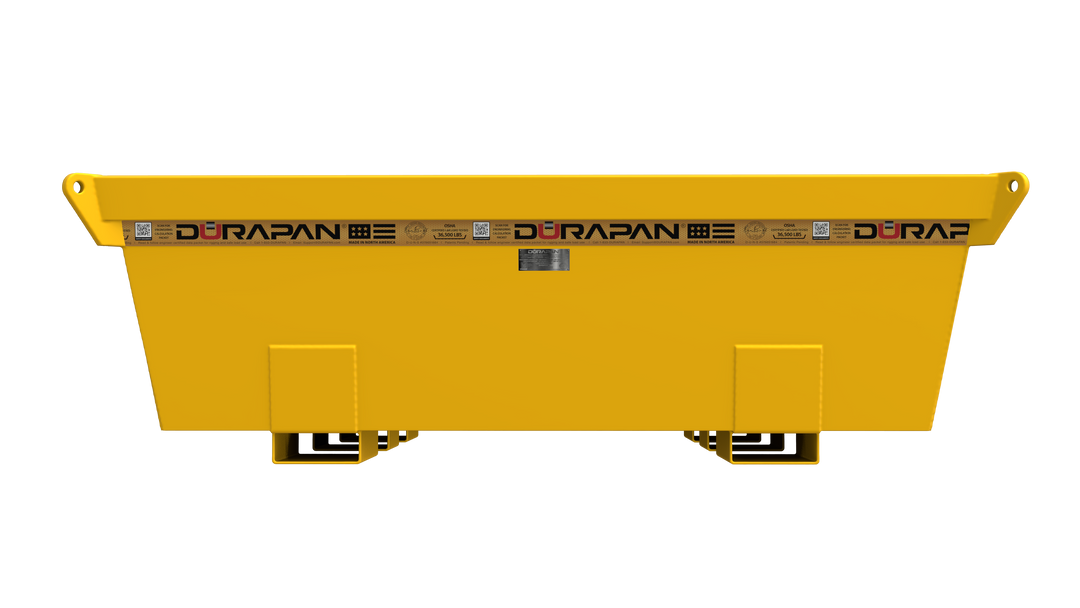

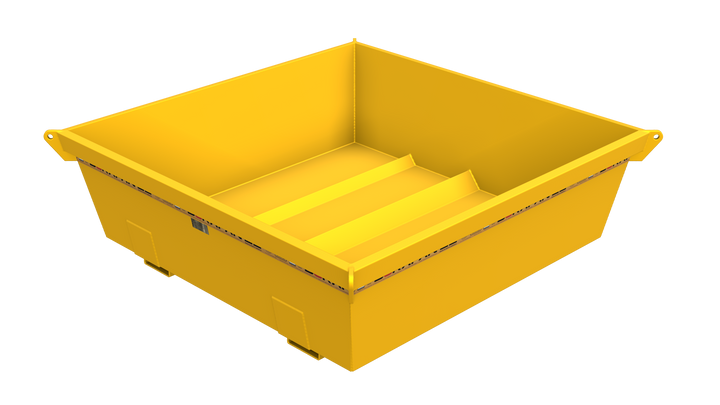

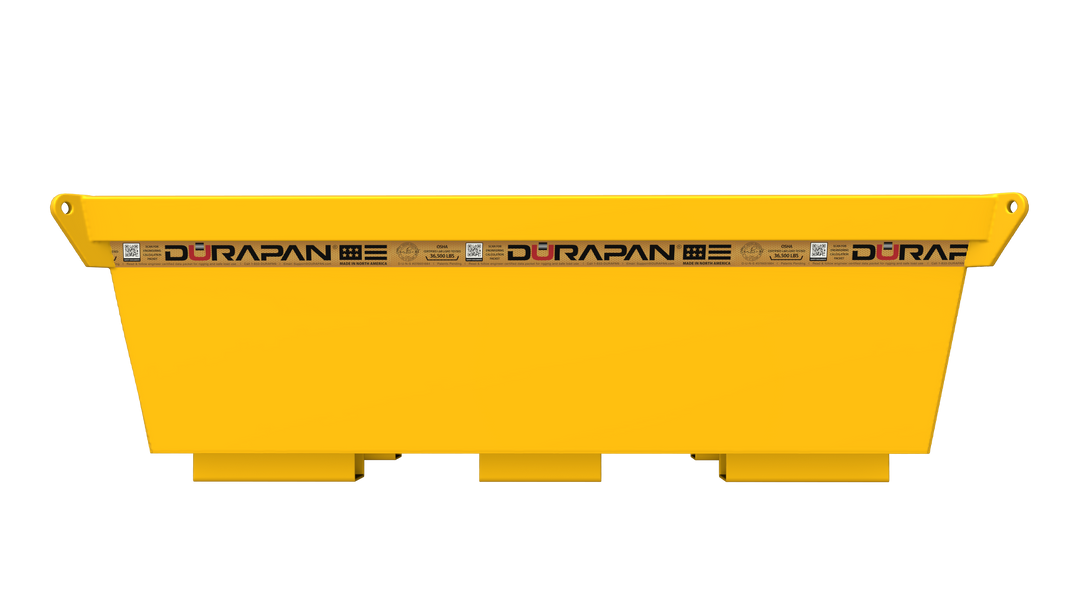

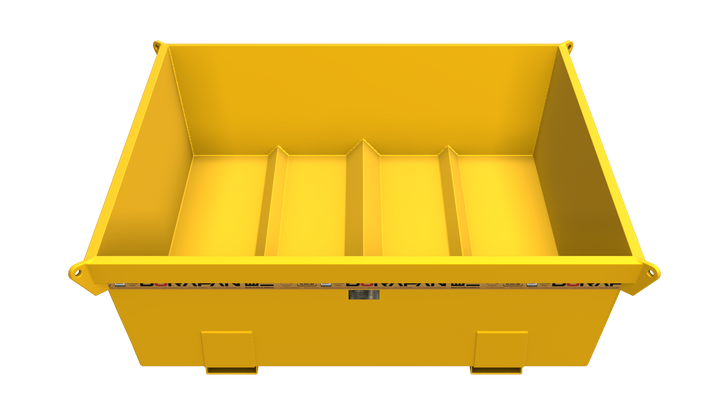

XXL Concrete Pump & Mixer Truck Washout Pan: 84"x84"x27", 587 Gal
OSHA Lift Compliant, Load Tested 36,500 lbs

XXL Concrete Pump & Mixer Truck Washout Pan: 84"x84"x27", 587 Gal - OSHA Lift Compliant, Load Tested 36,500 lbs

Regular price $2,999.00 USD
Regular price $5,200.00 USD Sale price $2,999.00 USD
Sale Sold out
Shipping calculated at checkout.

Introducing the DURAPAN® 600 – Engineered to be the Toughest and Most Reliable Solution for the Construction Industry.

UPC: 860010600078

Do you need a rain cover for SWPPP? Select HERE

Please click here to download the load test certificates and safety information

DURAPAN Safety Specs 600

Load Test Certificate



County of origin: North America

Warranty: Lifetime

Dimensions: 84 x 84 x 27"

Actual height: 27"

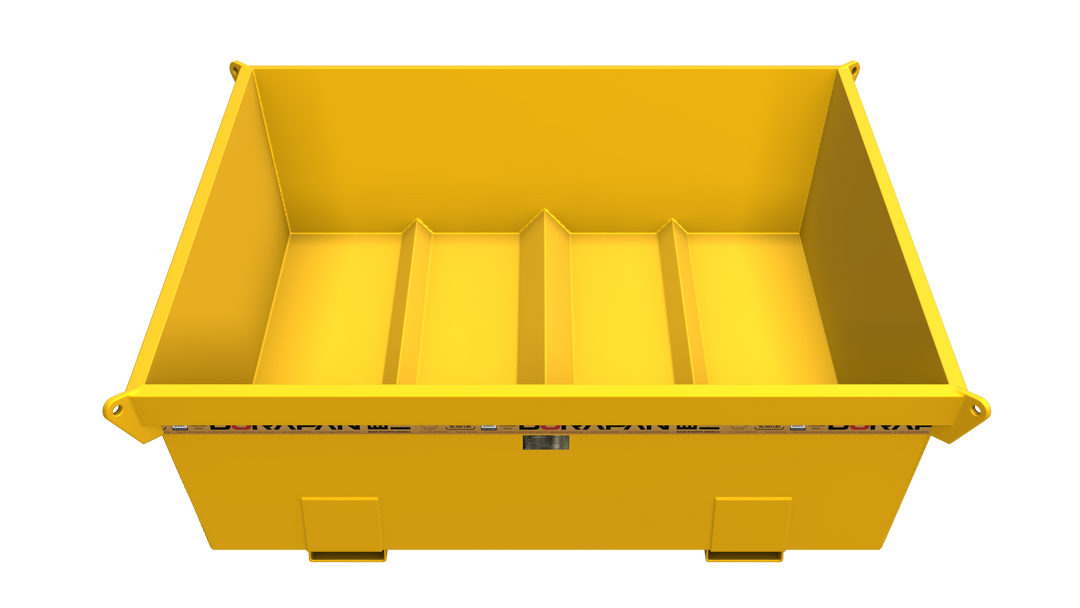

Designed for concrete mixer truck washout and concrete pump truck priming

Liquid and solid volume:

587 Gallon capacity

2,348 US liquid quart

78.5 Cubic foot

2,222 liter

Approximate tare weight 1,300 lbs

ASTM material grades:

Plate A36

Pad eye plate A572 Gr. 50

Pad eye hole size 1 1/8"

Channel: A36

Angle: A36

Weld: AWS E70XX

Lifting links: OSHA compliant Crosby and Pewag overhead rated lifting links

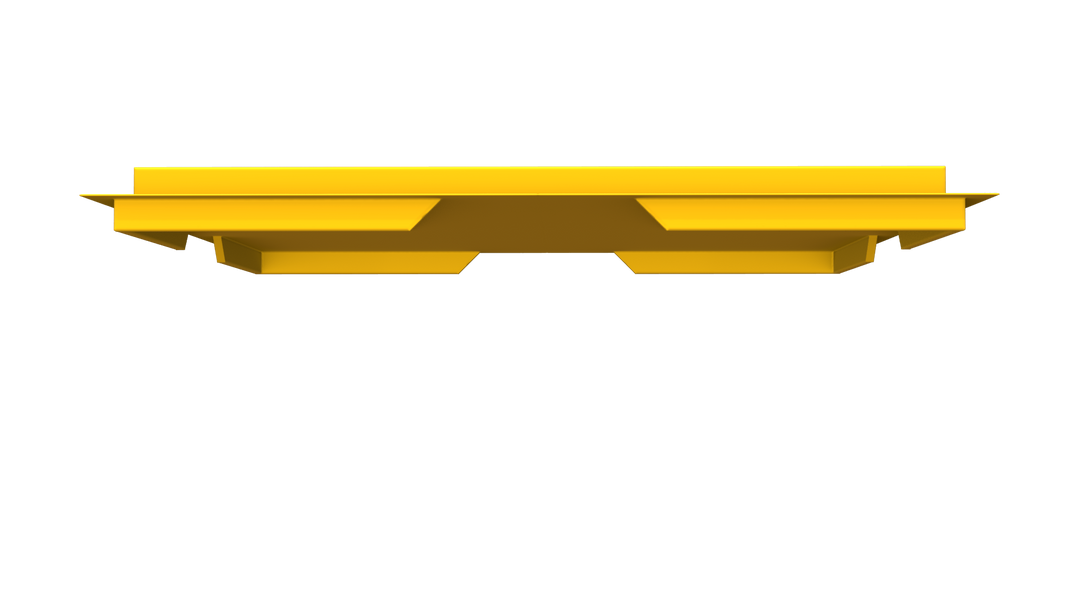

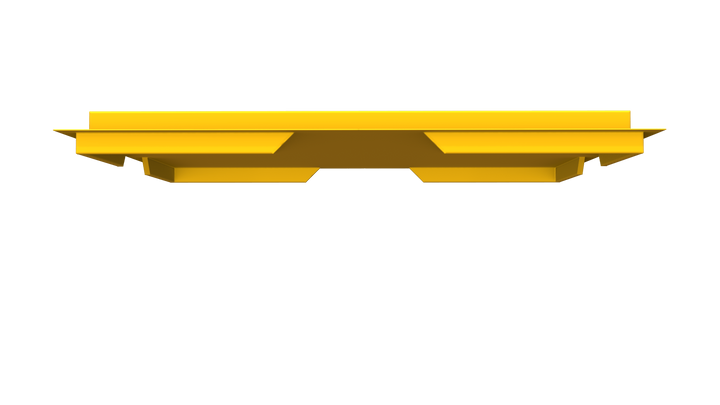

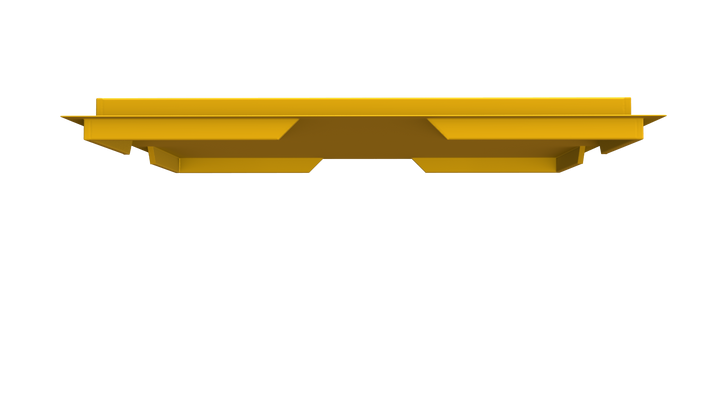

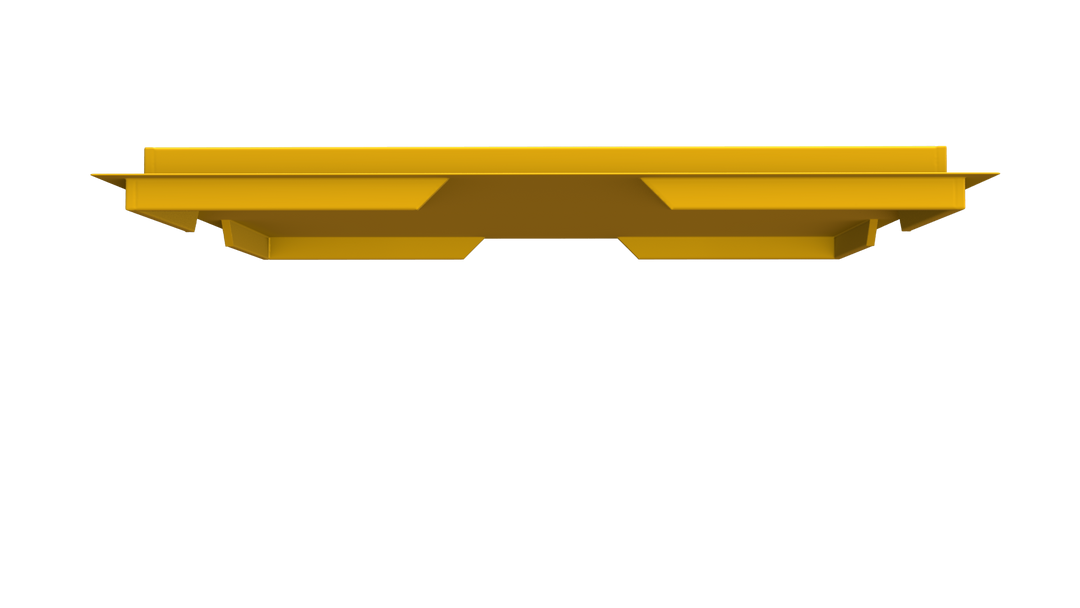

Optional watertight rain lid

The DURAPAN®600 have unparalleled strength and durability, is designed to meet the most demanding needs of construction professionals. Check out the impressive technical specifications that make our product the ultimate choice for heavy-duty construction projects.

 Inter-stackable Design:

Our innovative inter-stackable feature allows for easy and efficient storage, transport, and handling of multiple pans, maximizing space and convenience on the job site.

 Watertight Construction:

The DURAPAN® SUPER HEAVY LIFT CRANE SERIES OSHA 600 is watertight, ensuring containment and prevention of leaks or spills, protecting your job site and the environment.

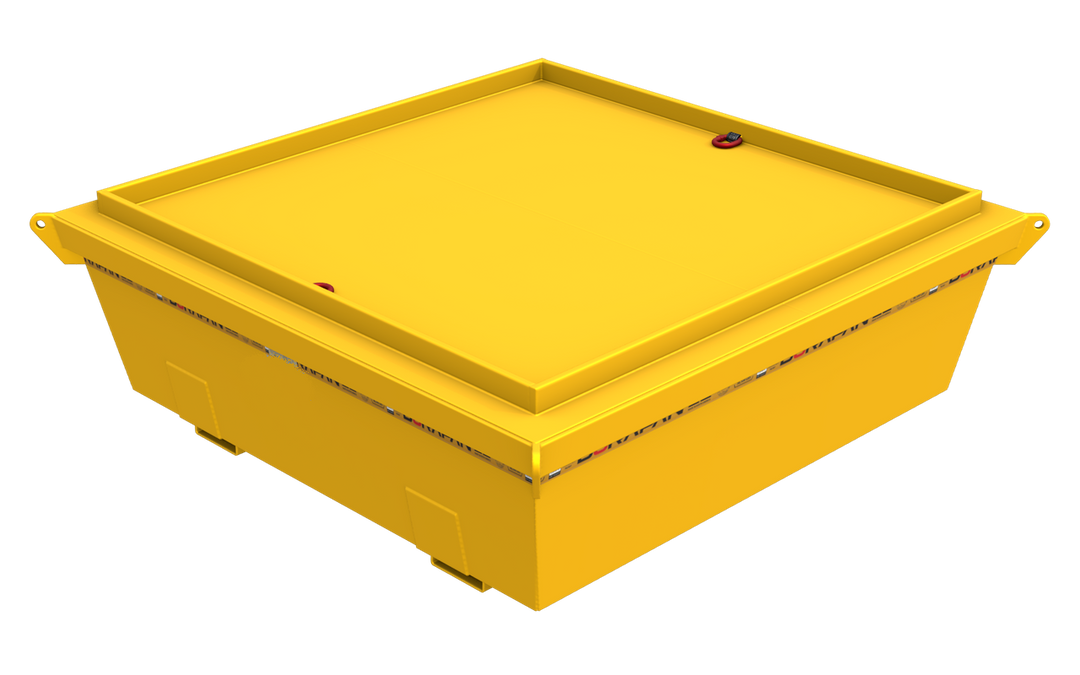

 Optional Lid Available:

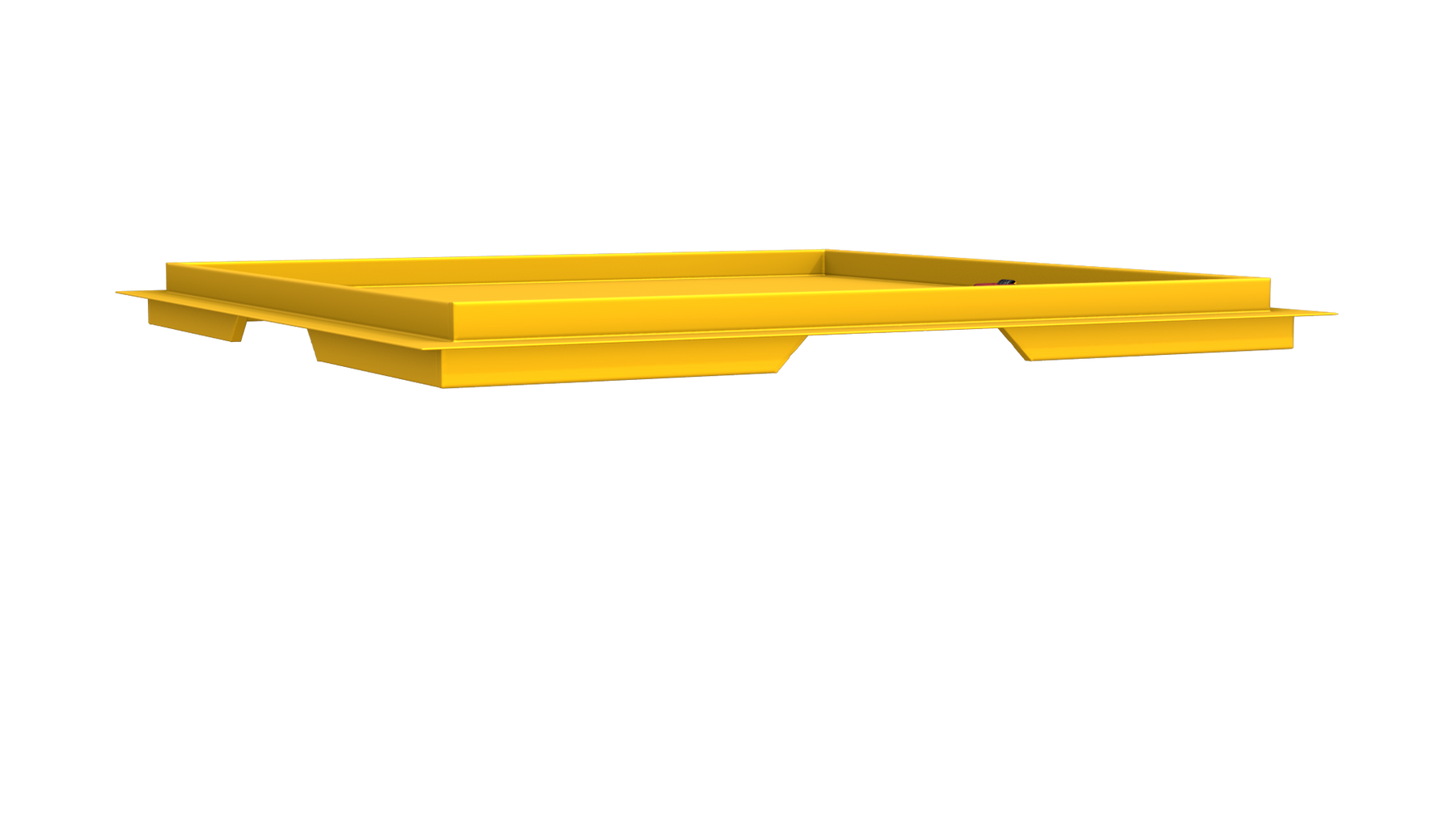

We offer an optional watertight lid with a nitrile seal to provide additional protection against overflow and to keep your project in regulatory compliance.

Our commitment to using the highest quality materials and advanced engineering techniques ensures that the DURAPAN® SUPER HEAVY LIFT CRANE SERIES OSHA 600 is built to withstand even the most challenging construction environments. Trust in our product's exceptional performance to keep your projects running smoothly and efficiently.

 PROOF TESTED TO OVER 300%

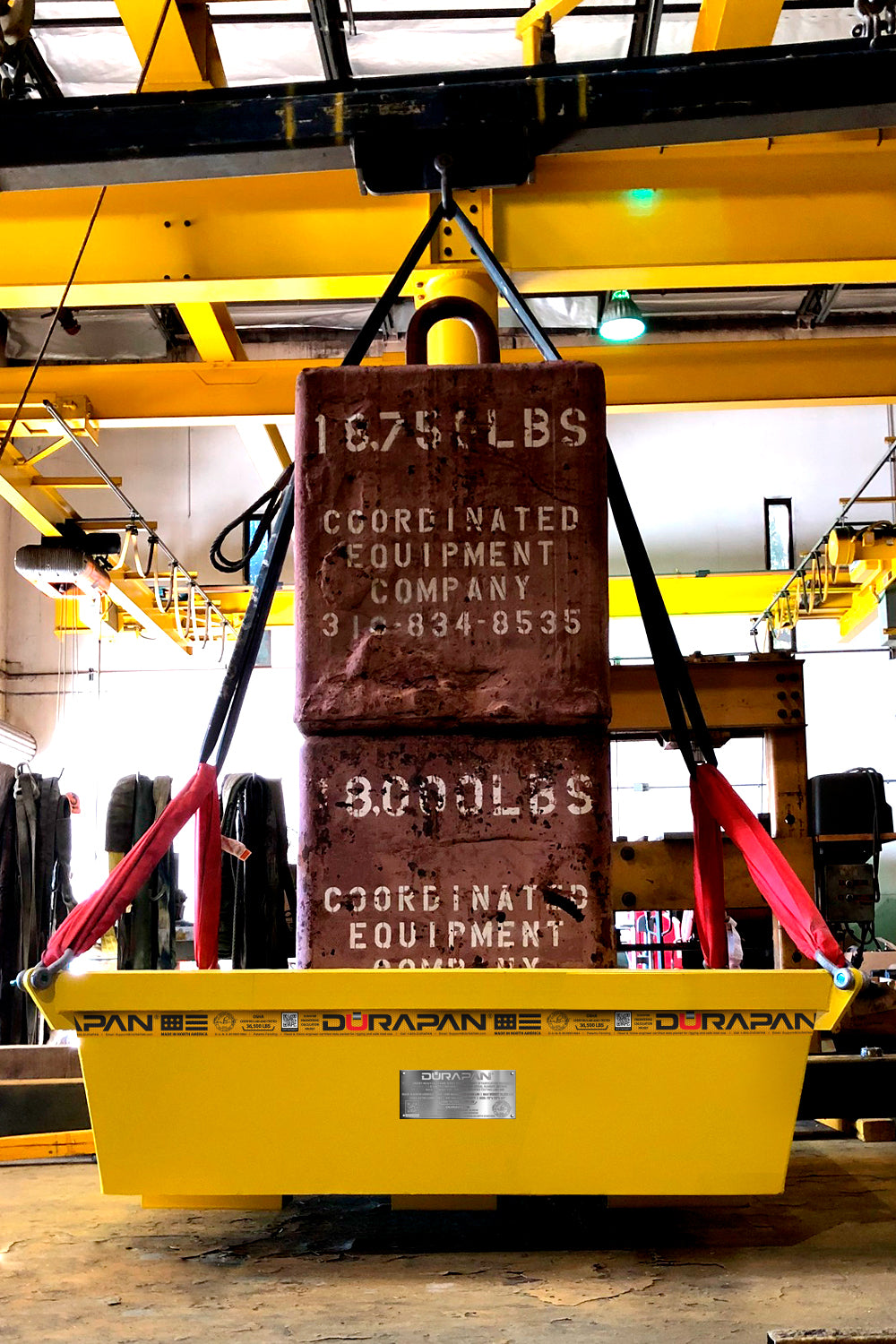

OSHA certified load test lab load Tested with 36,500 lbs by Trademark Hoist, Inc. Cal/OSHA # CA-296

 ULTRA-HARD 1/4” .250-GAUGE COLD-ROLLED STEEL

A pan made from 1/4” steel is 13.12 times stronger than one made from 12-gauge.

 HIGH-STRENGTH 4” X 5.4# STEEL CHANNEL PERIMETER REINFORCEMENTS

A pan made from 5.4 channel is extremely durable and very reliable. It is 79.81 times stronger than an open channel/headrail.

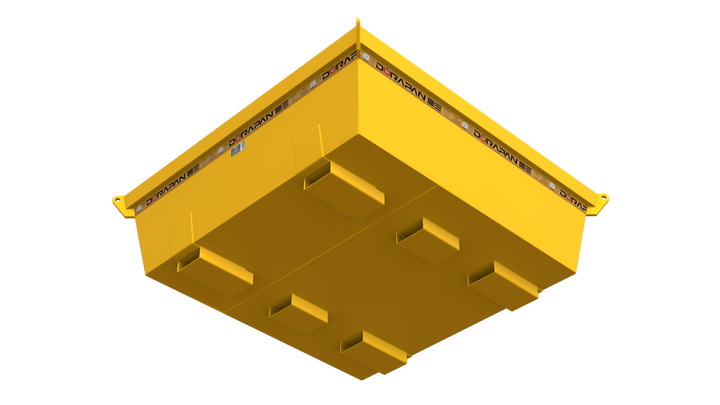

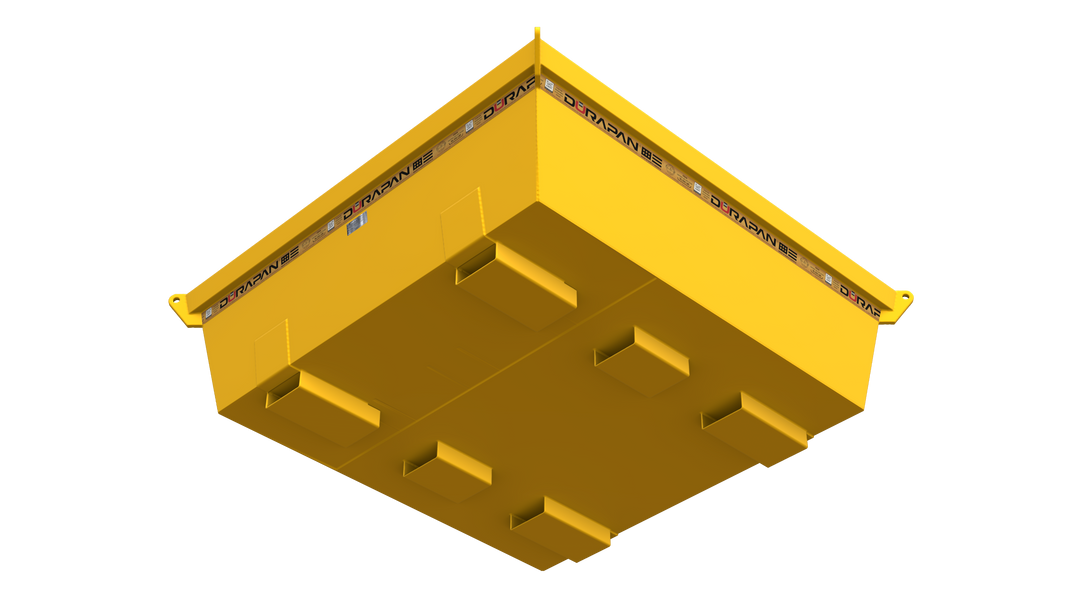

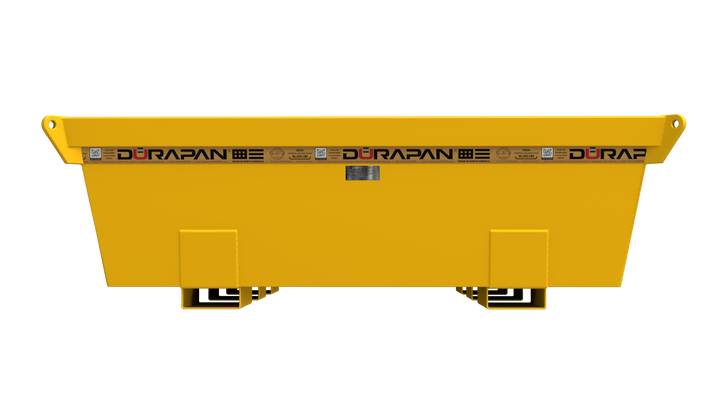

 TWO-WAY XL UNIVERSAL FORKLIFT POCKETS

Our engineered two-way XL fork pockets outperform other options. Generously sized at 8”W. x 3”H. X ¼”@ 52” OD.

 ARMORED ENERGY-ABSORBING STEEL BUMPERS

Prevents punctures caused by inserting misaligned forks. MAX pan’s are equipped with four (4) 8” x ¼” welded steel bumper pads that absorb and redirect impact force preventing punctures.

 FOUR (4) ASTM ENGINEERED LIFTING EYES

Engineered from safety, our four (4) heavy duty 4’ 3/4” A-572 GRADE 50 lifting eyes have exceeded OSHA certified load test lab’s proof testing by successfully ‘flying’ 36,500 LBS.

REGULATORY COMPLIANT 3” DOT REFLECTIVE SAFETY TAPE

Microprismatic light reflective values averaging LRV 70.75. Retroreflective performance of 5 years +. Focused retroreflective values with micro-engineered 3 point prisms on the surface.

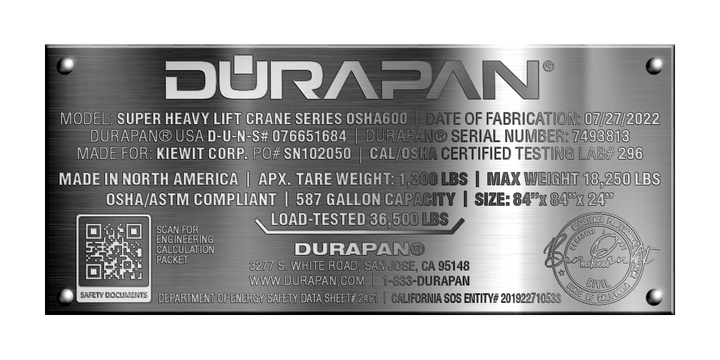

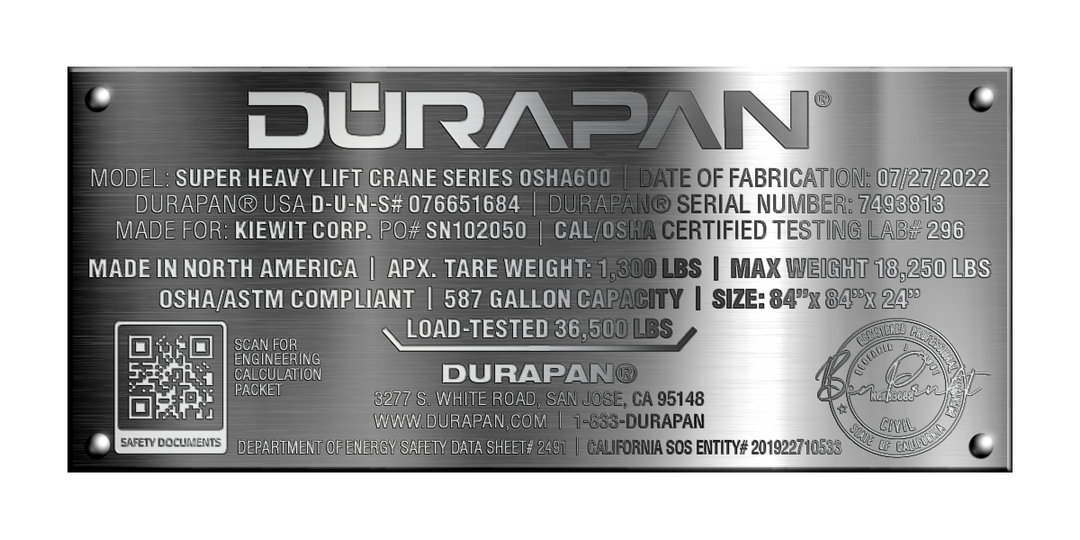

REGULATORY COMPLIANT STAINLESS STEEL DATA EQUIPMENT PLATES

Lifesaving data that protects people. China fakes of our authentic products are a real problem. We communicate 24/7 with job sites and inspectors authenticating equipment and providing required safety data.

O.S.H.A Certified Lab Load Tested With 36,500 Lbs. Link to load test certificate

Engineering Calculation Packet Available upon Request Link to enter email and request

High Strength 1/4” Gauge Steel Floors

High Strength 1/4” Gauge Steel Walls

Hand Welded Continuous Seams

11” Wide Angled Inclosed Forklift Pockets Spaced 40” to OD

Engineered Stealth design floor & tapered interior walls prevent materials from sticking

Serialized metal Equipment Identification plated riveted to front panel of each pan.

Serialized metal Equipment safety use plate attached to each pan

 Painted Safety Yellow

 Easy Release Nesting Spacers allow inter-stacking of multiple pans and prevent sticking.

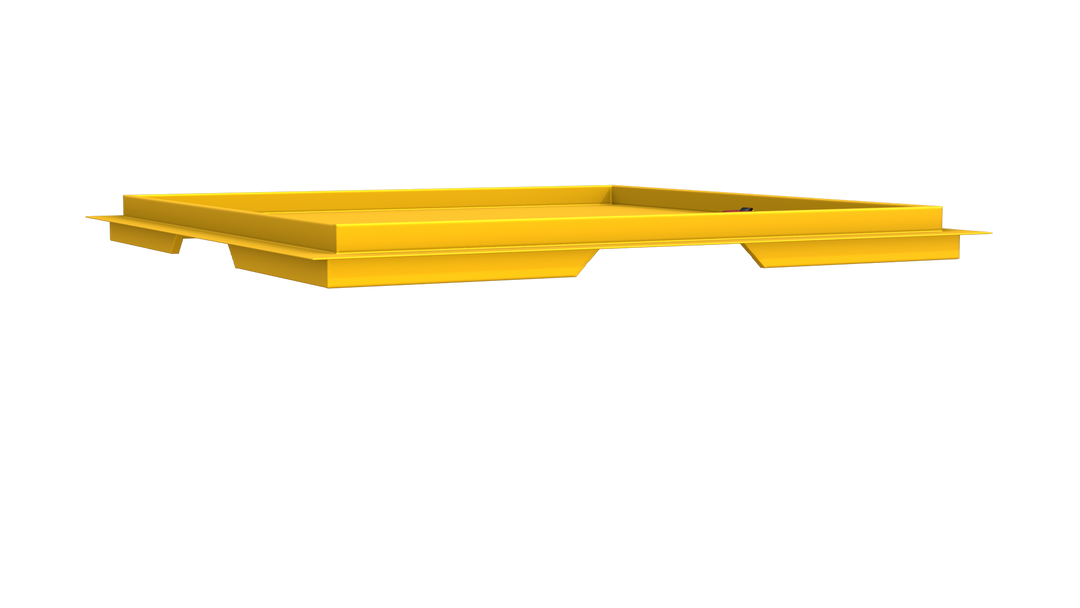

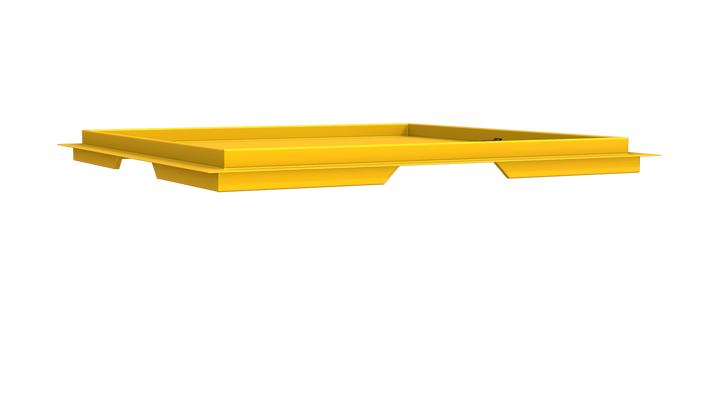

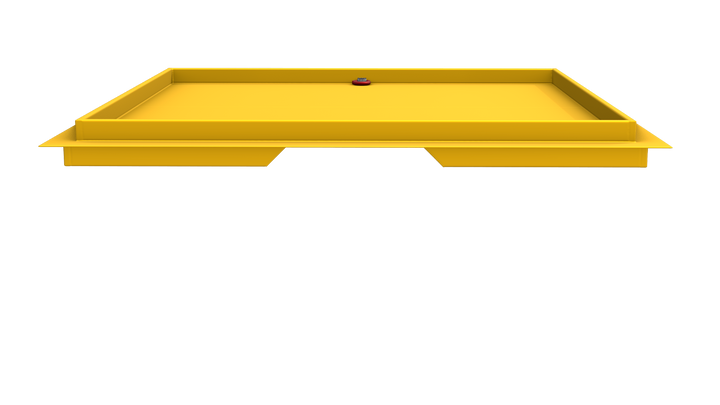

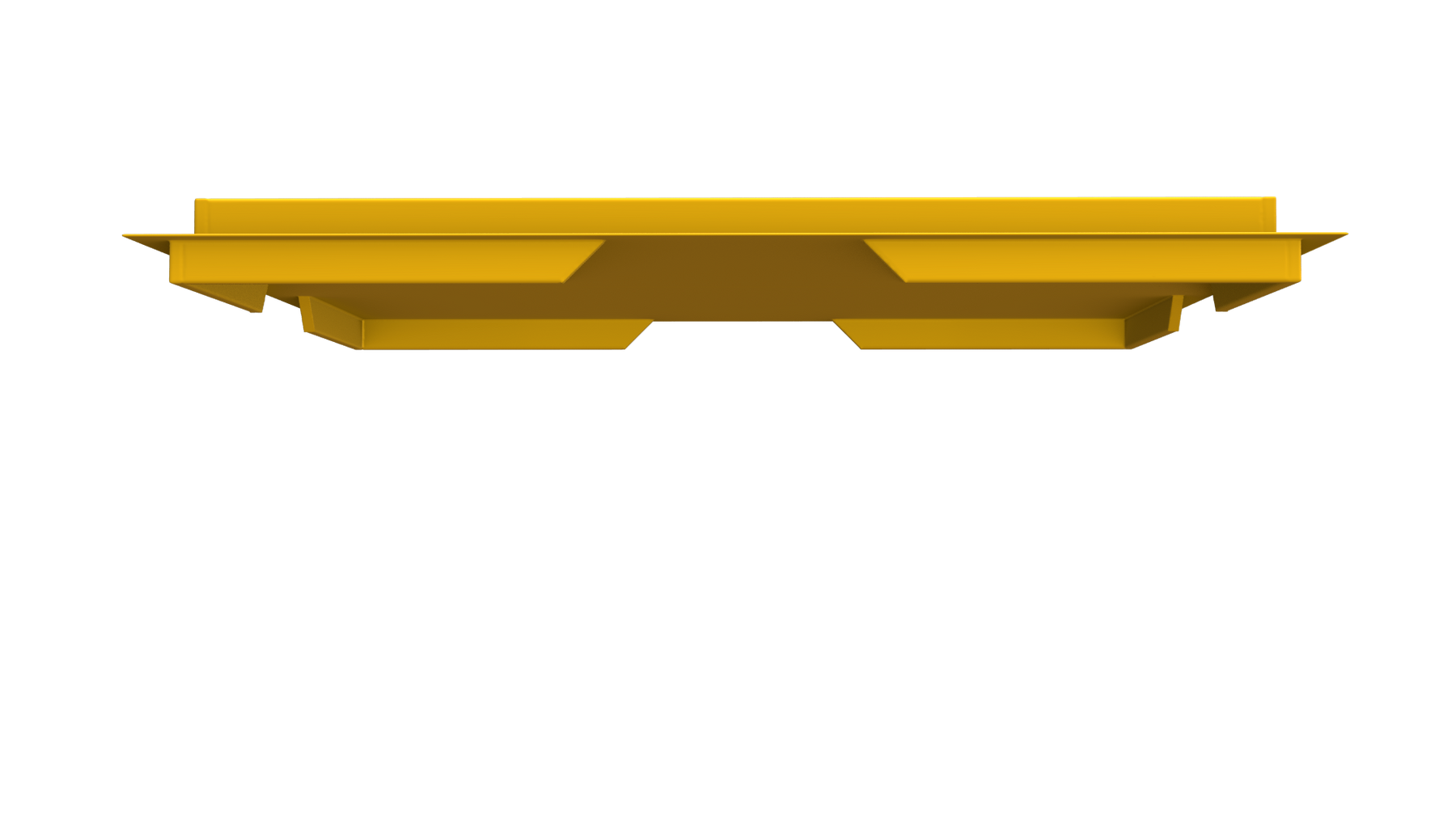

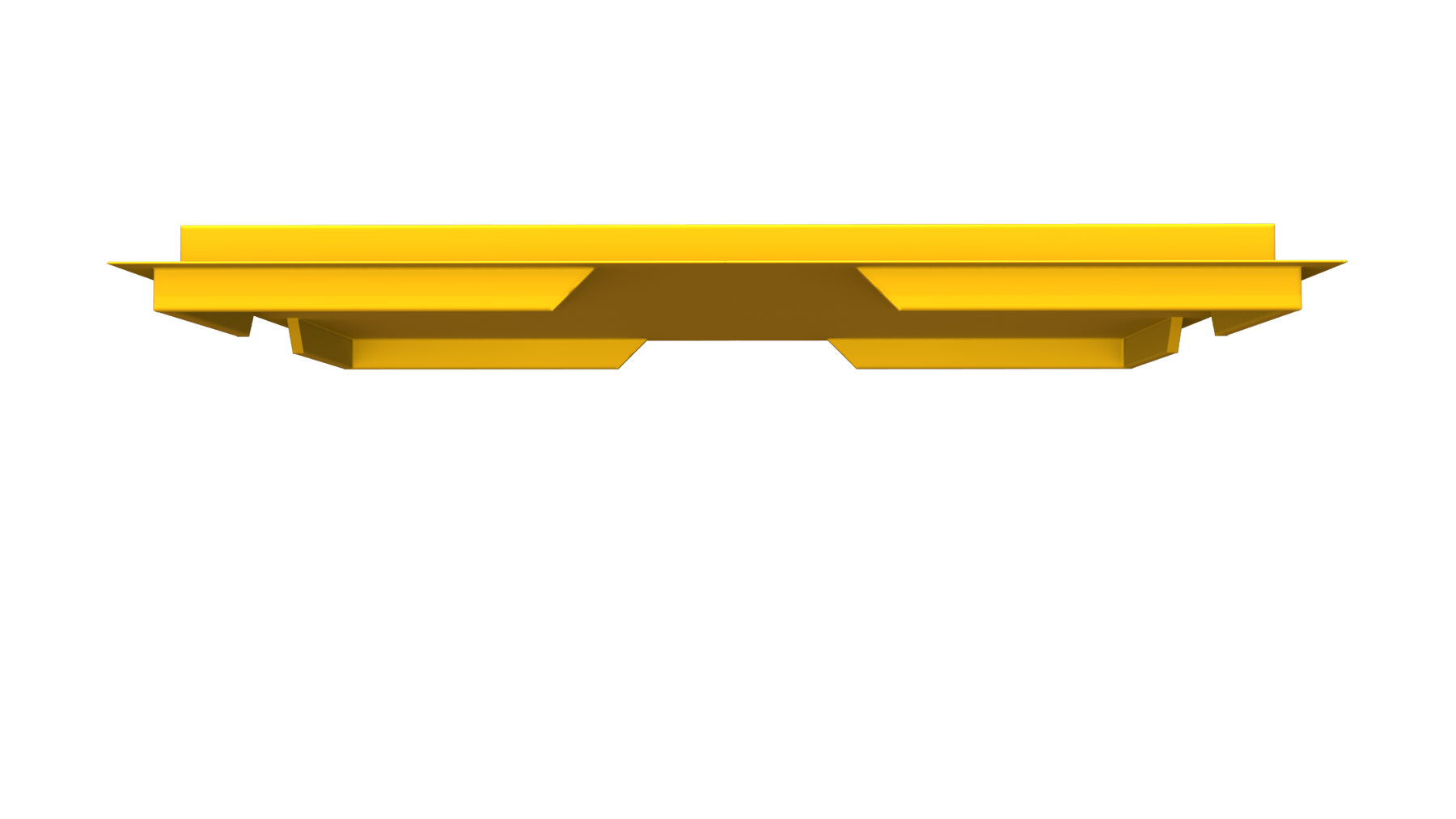

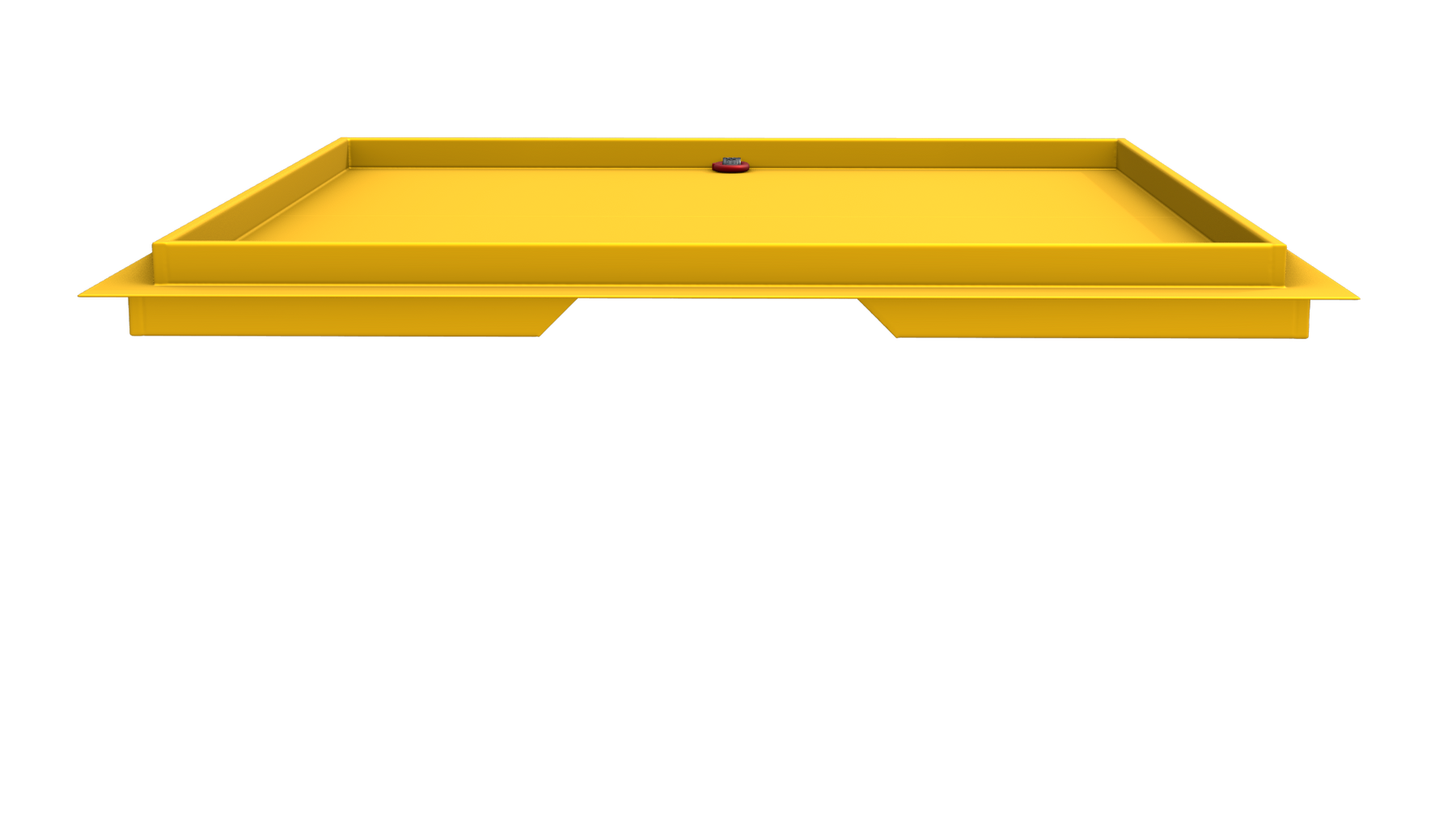

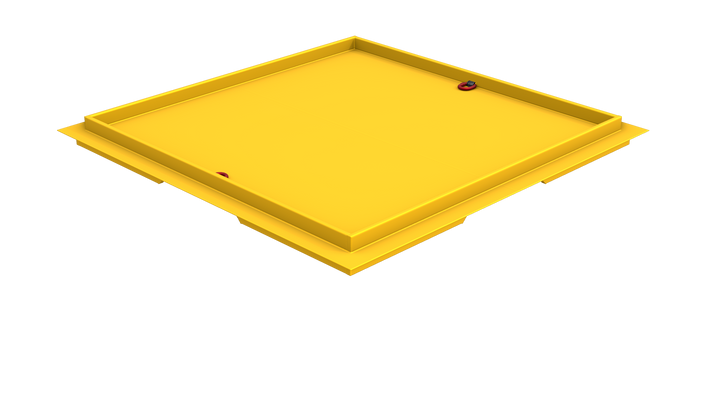

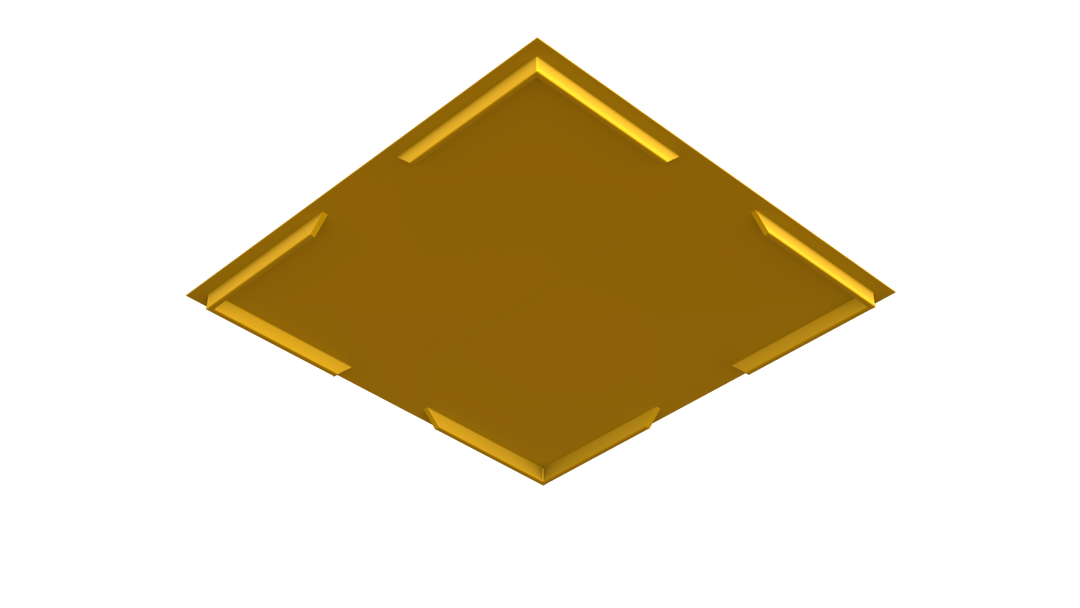

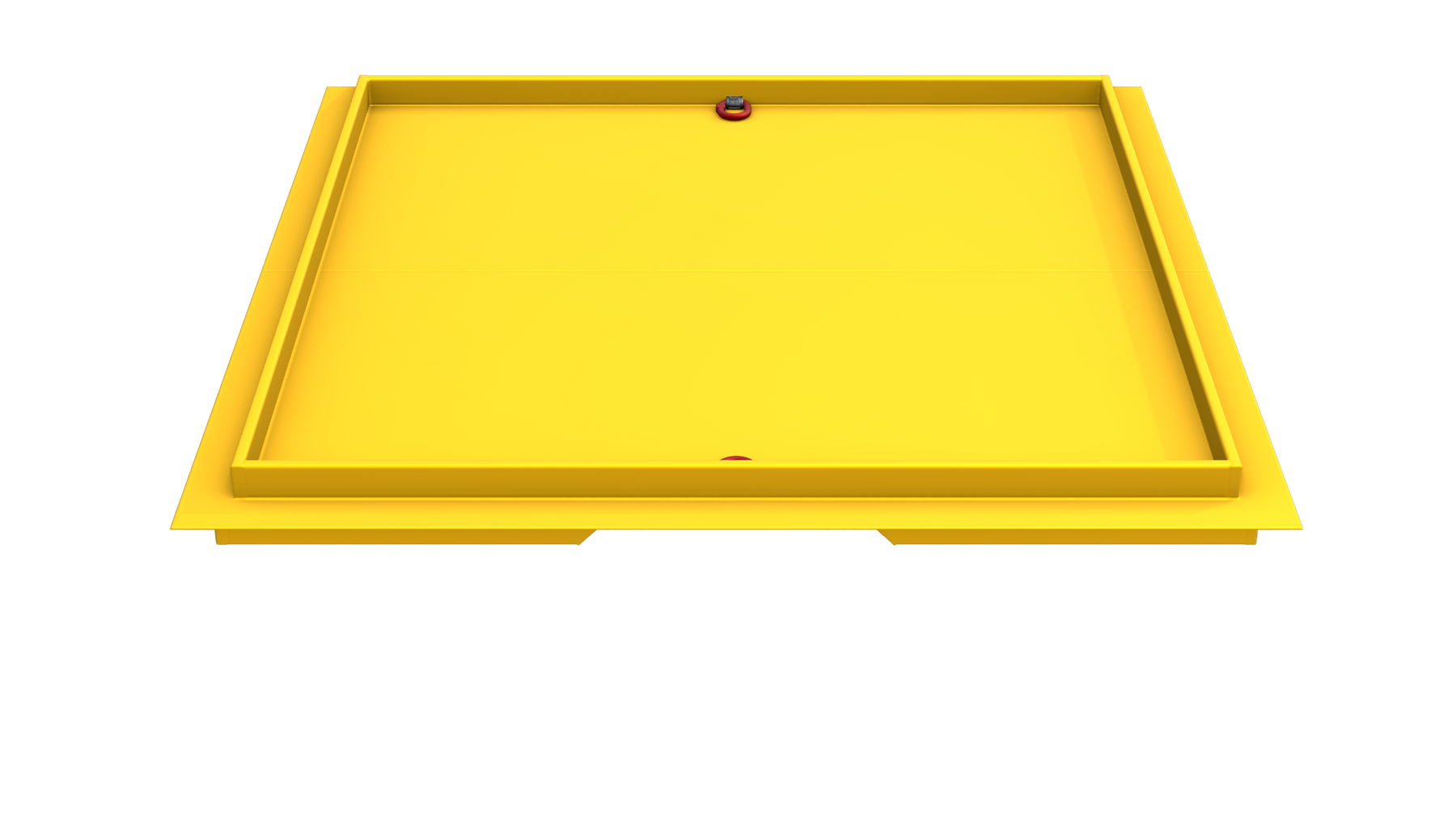

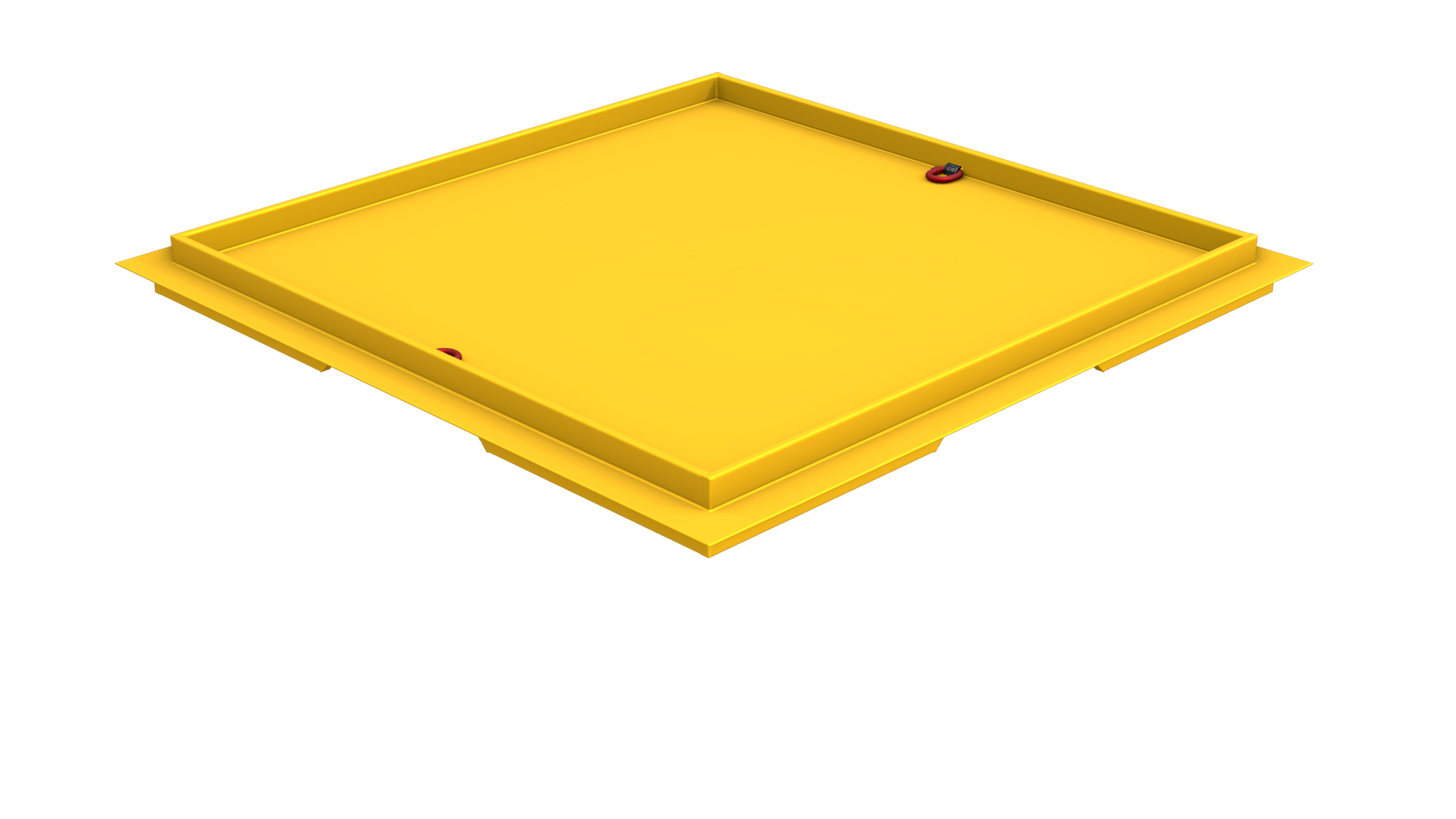

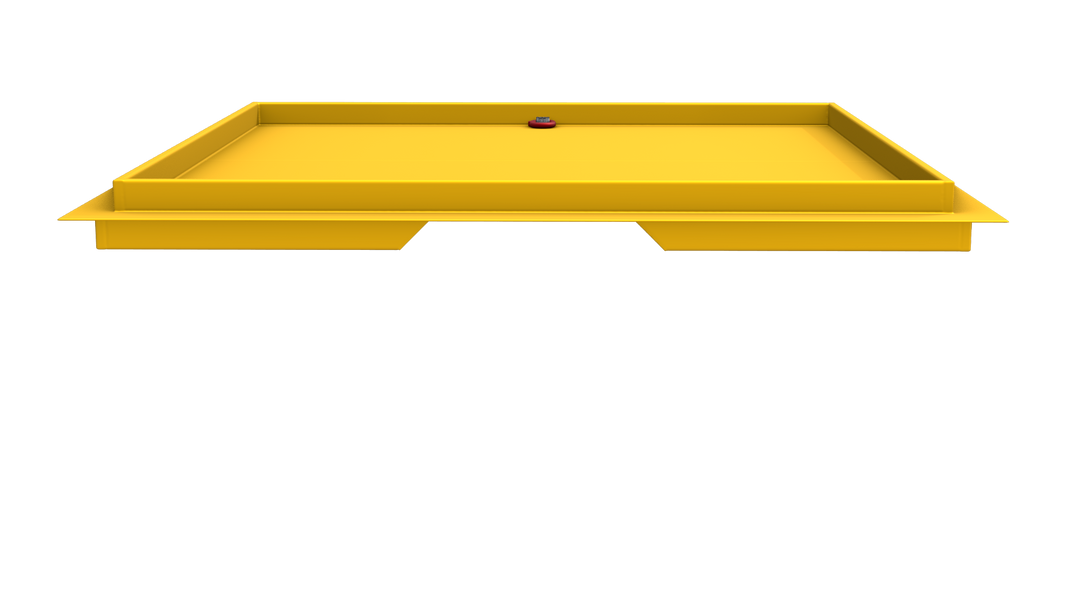

 Steel Watertight Lids with Nitrile seal available.
