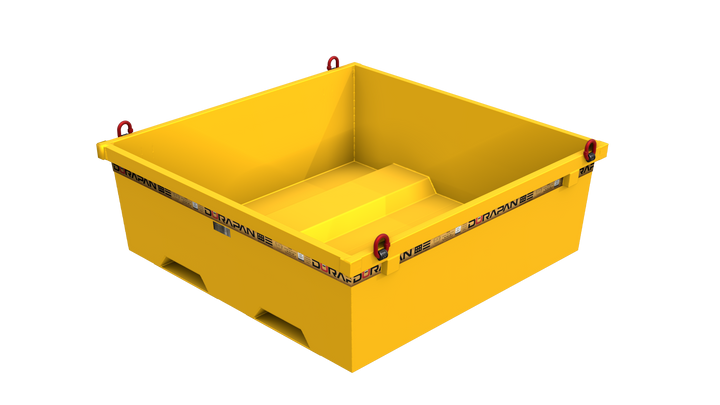

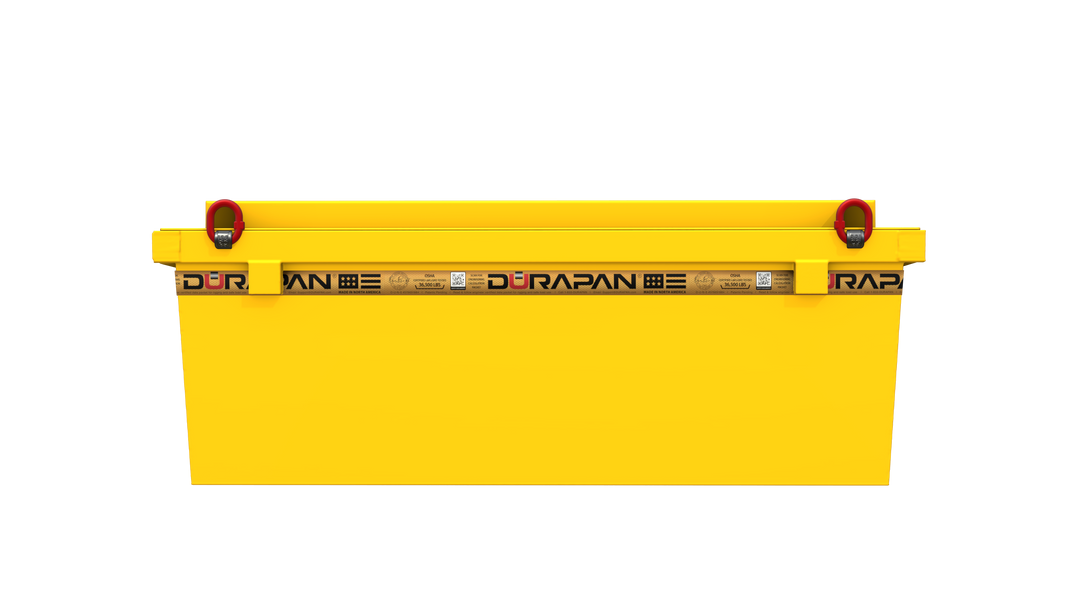

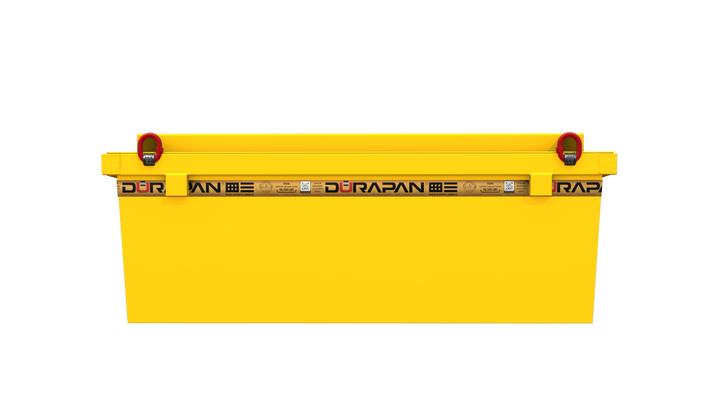

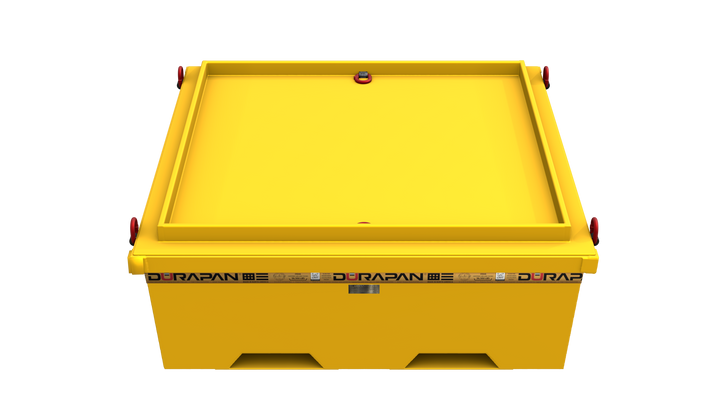

441 Gallon

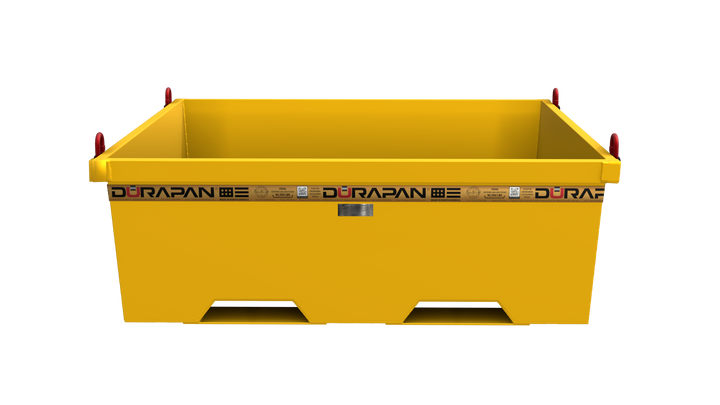

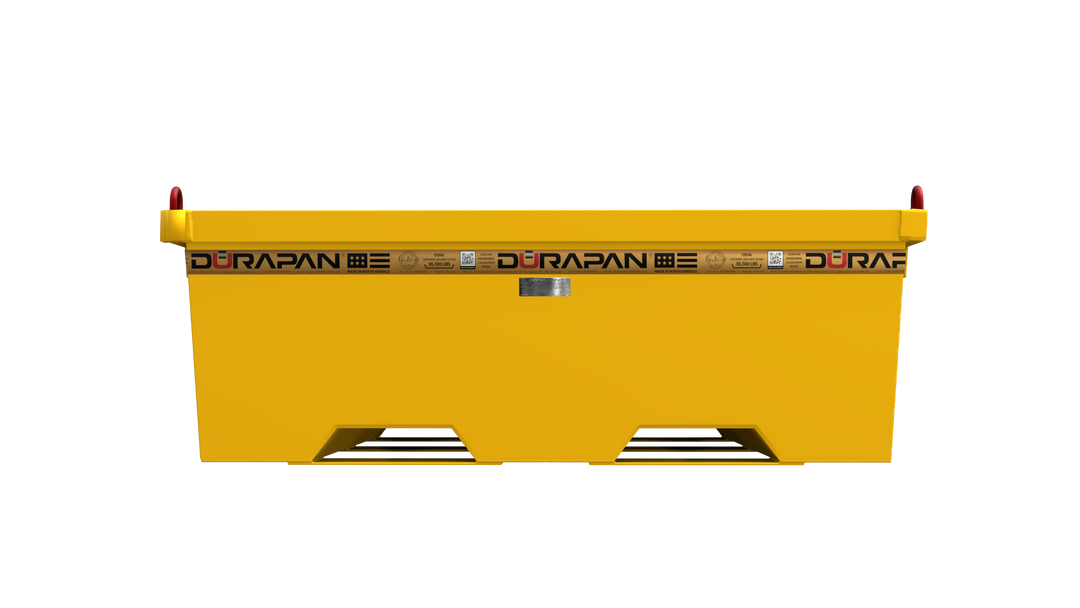

72”W x 72”L x 24”D Concrete Truck Washout Pan. OSHA Certified & EPA SWPPP BMP Compliant

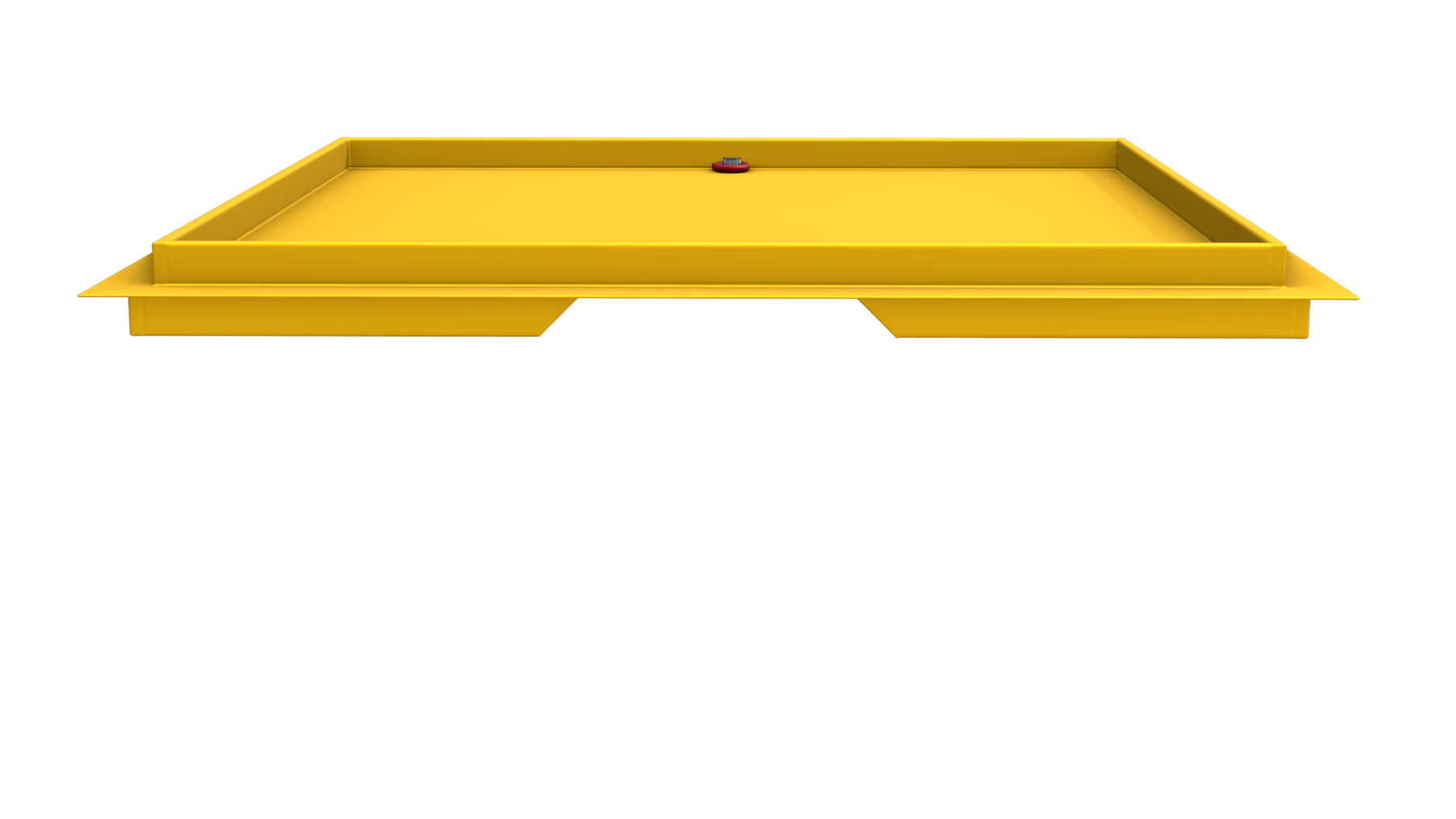

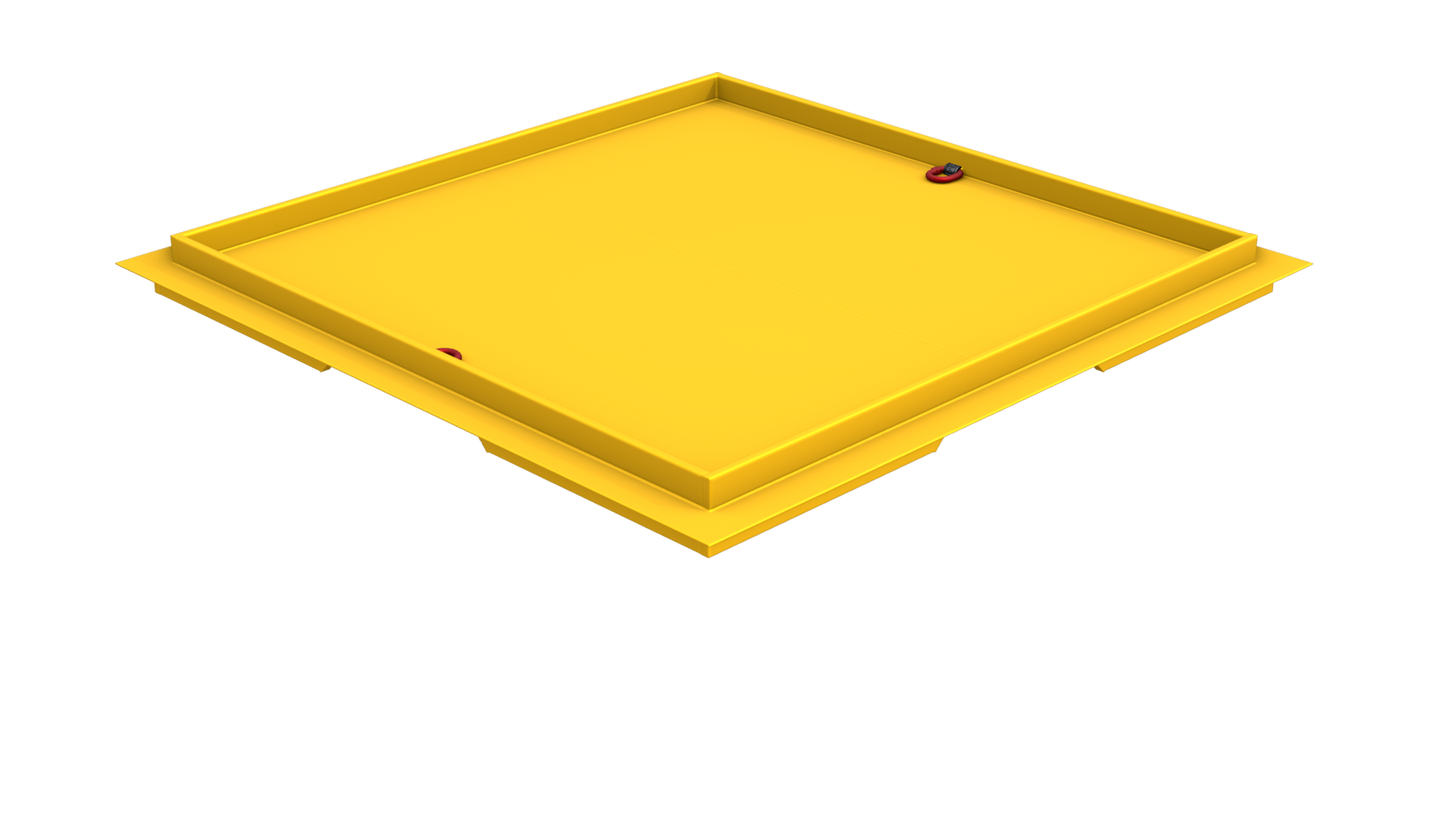

Introducing the DURAPAN® 450 – a robust and versatile containment solution designed specifically for concrete mixer washout and pump-priming.

• Steel Rain Lid only $599

• UPC: 860010600054

• Dimensions 72"W x 72"L  x 24"D

• Empty weight 850 lbs

• Liquid and solid volume:

441 Gallon capacity

1,764 US Liquid quart

59 Cubic foot

1,670 Liter

• Made in North America

• ASTM material grades: Plate A36, Channel: A36, Angle: A36, Weld: AWS E70XX

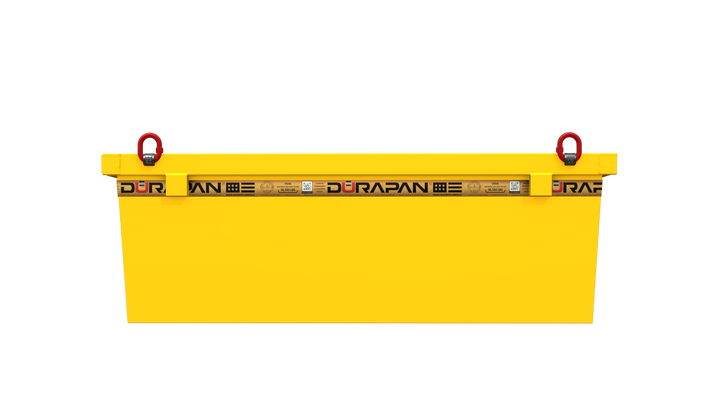

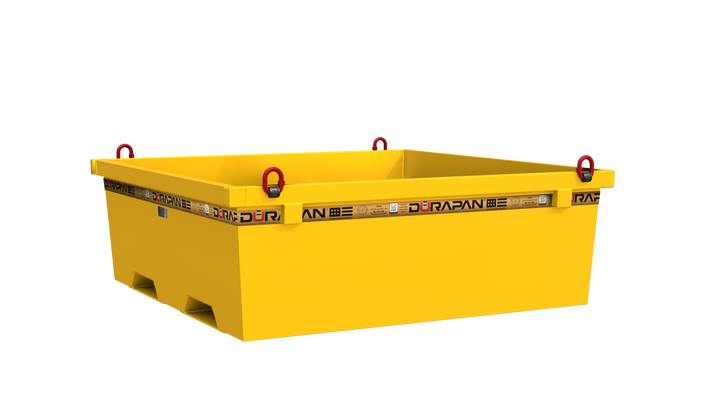

• Lifting links: OSHA compliant Crosby or Pewag rated for overhead rigging

• EPA SWPP BMP Compliant

Do you need a rain cover for SWPPP? Select HERE

 ASTM material grades:

Plate A36

Channel: A36

Angle: A36

Weld: AWS E70XX

Lifting links: OSHA compliant Crosby and Pewag overhead rated lifting links

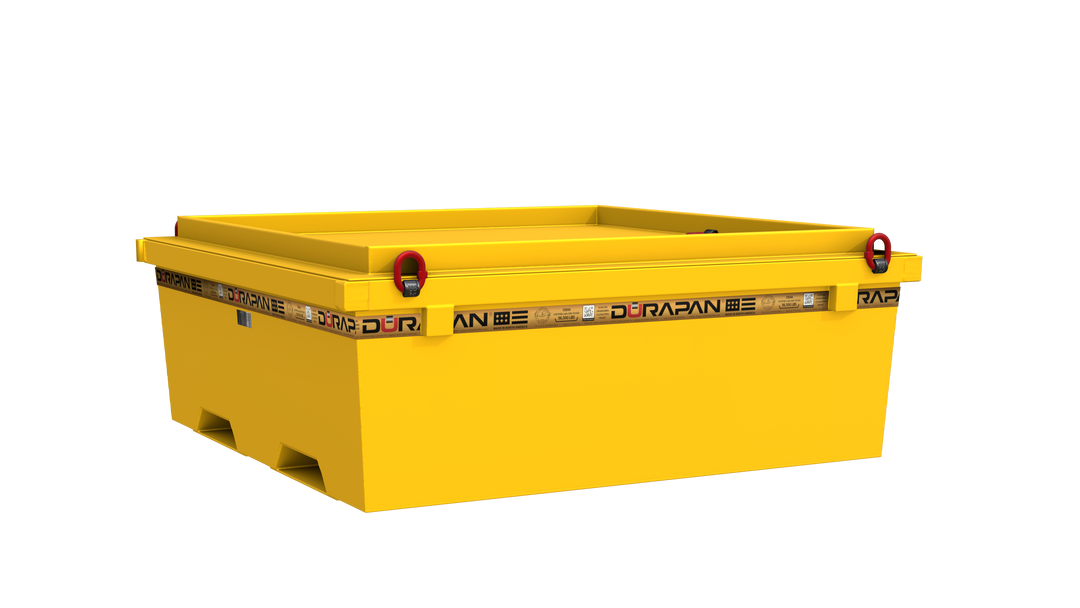

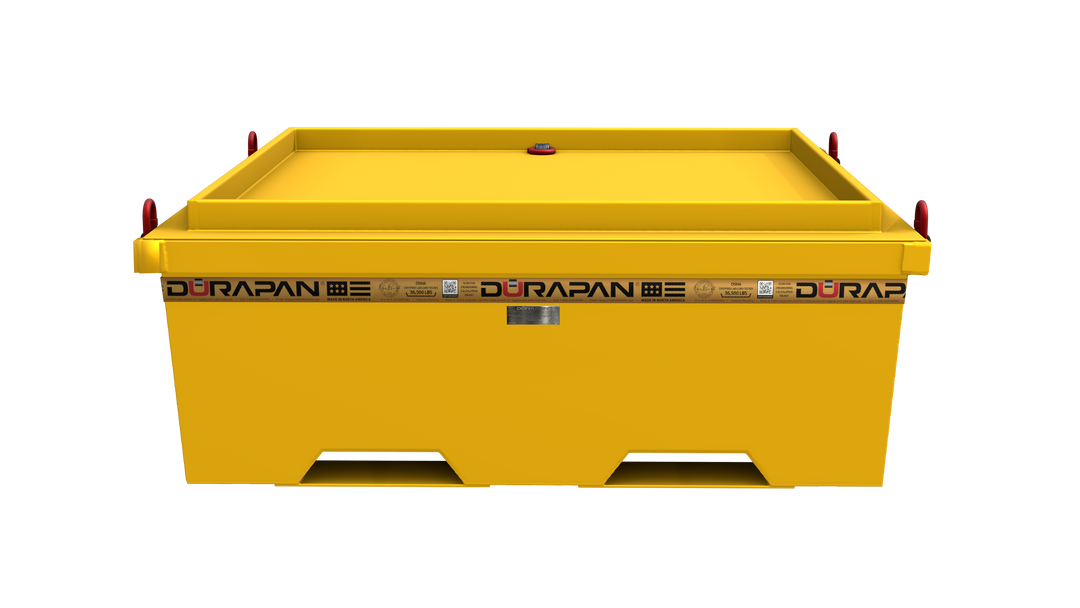

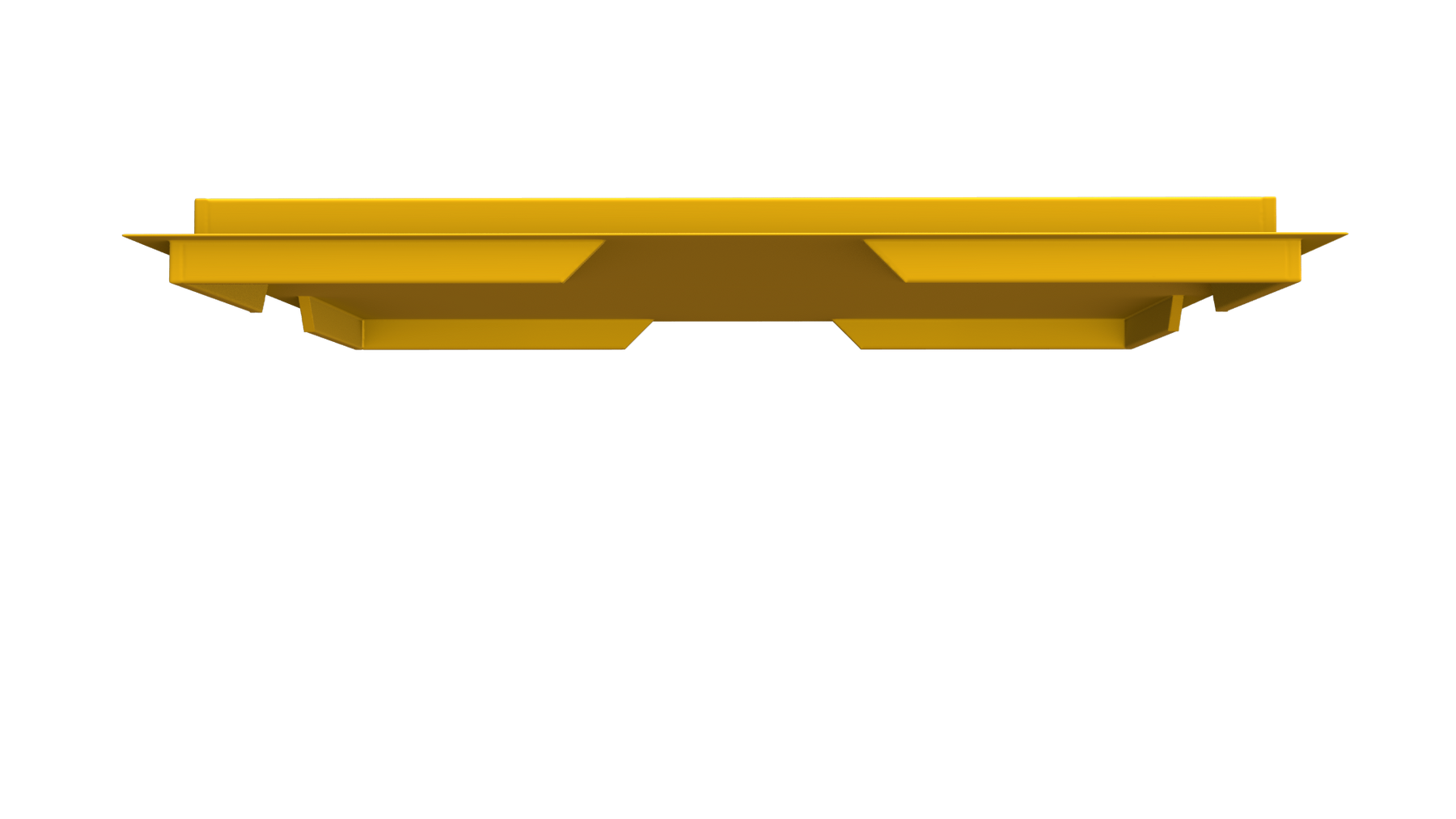

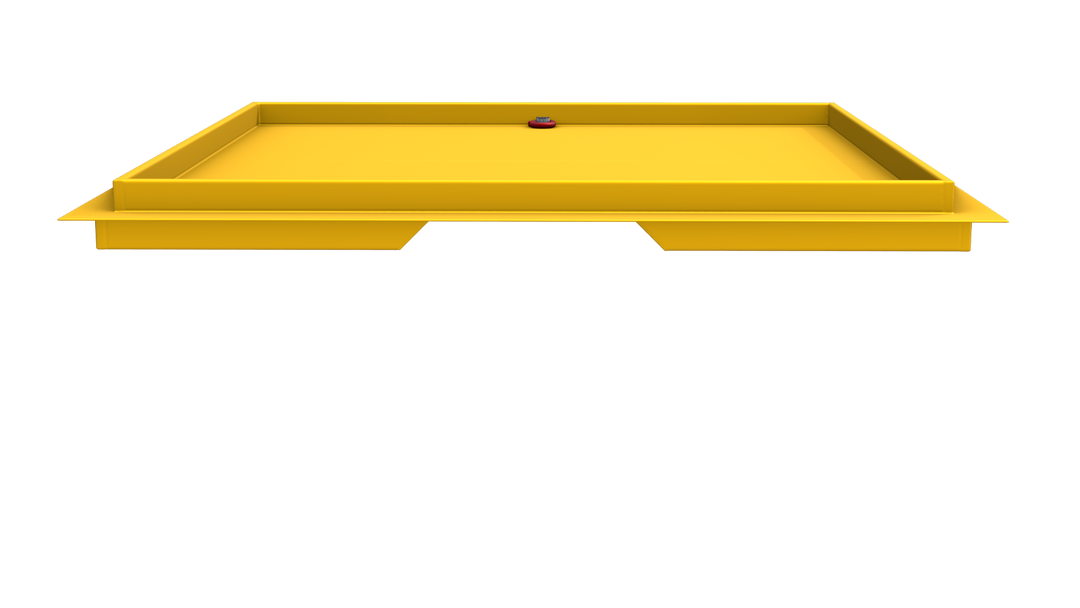

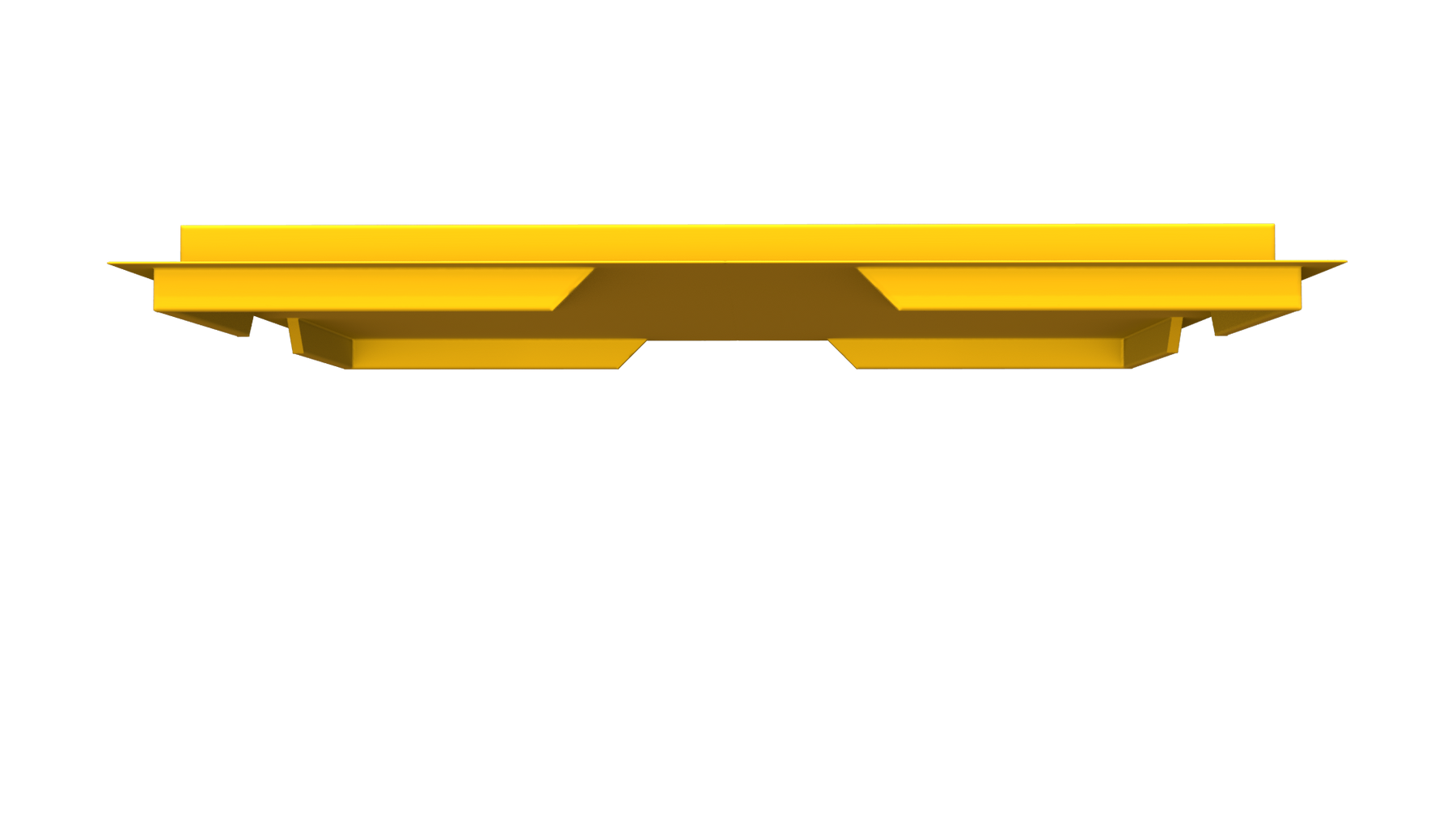

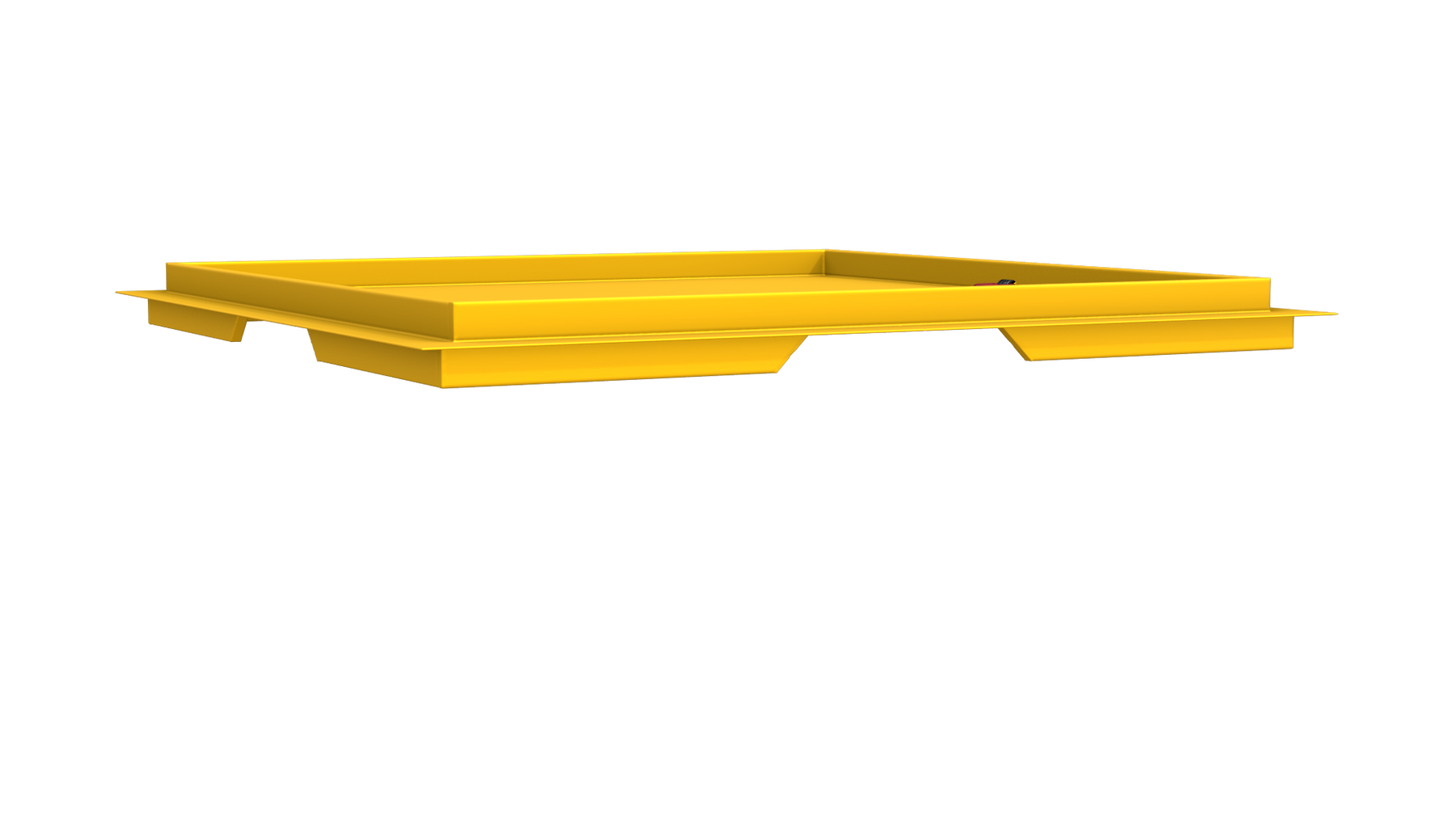

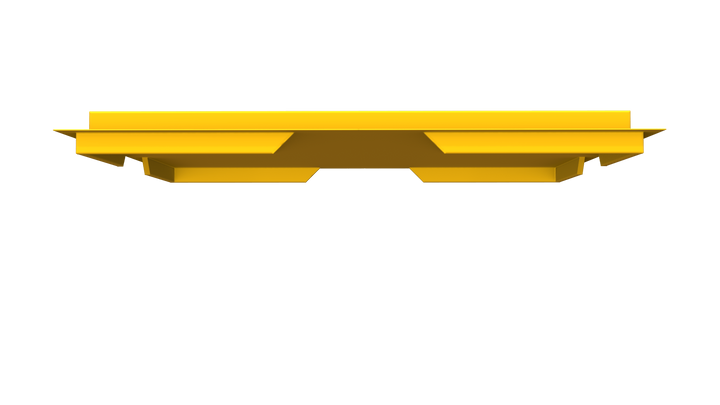

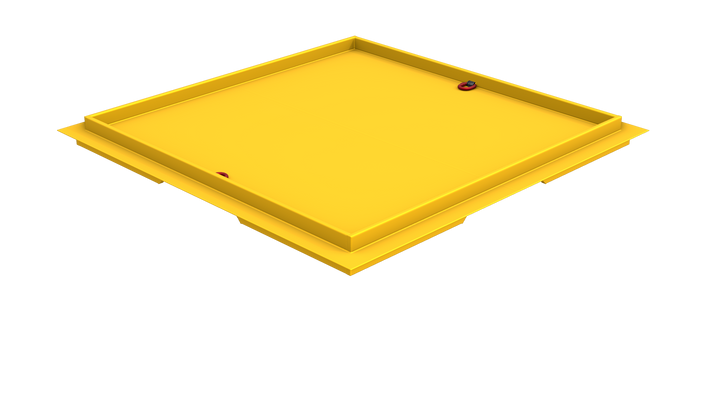

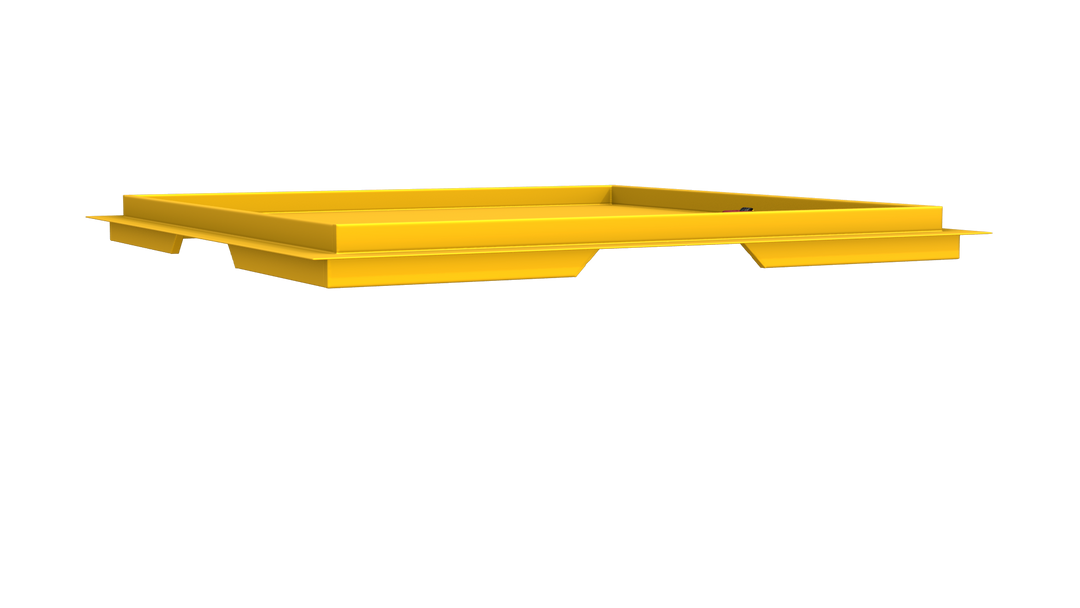

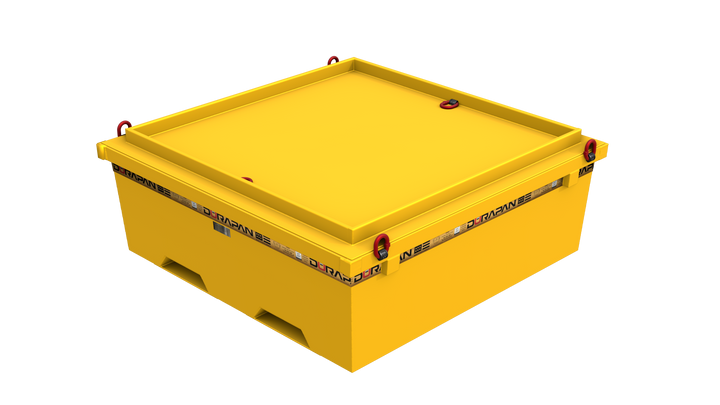

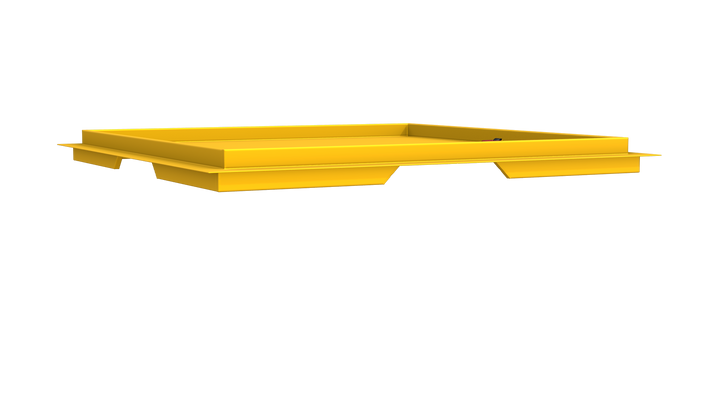

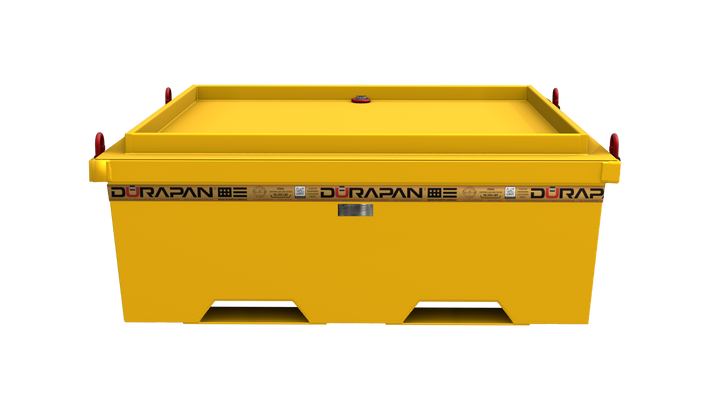

Optional watertight rain lid

The DURAPAN® 450 is designed to meet the rigorous demands of the construction industry, providing exceptional strength, durability, and reliability. Choose the DURAPAN® CROSBY HEAVY LIFT CRANE SERIES OSHA 450 for your next project and experience the difference in quality and performance.

ULTRA-HARD 1/4” .250-GAUGE COLD-ROLLED STAINLESS STEEL

A pan made from 1/4” steel is 13.12 times stronger than one made from 12-gauge.

HIGH-STRENGTH 4” X 5.4# STEEL CHANNEL PERIMETER REINFORCEMENTS

A pan made from 5.4 channel is extremely durable and very reliable. It is 79.81 times stronger than an open channel/headrail.

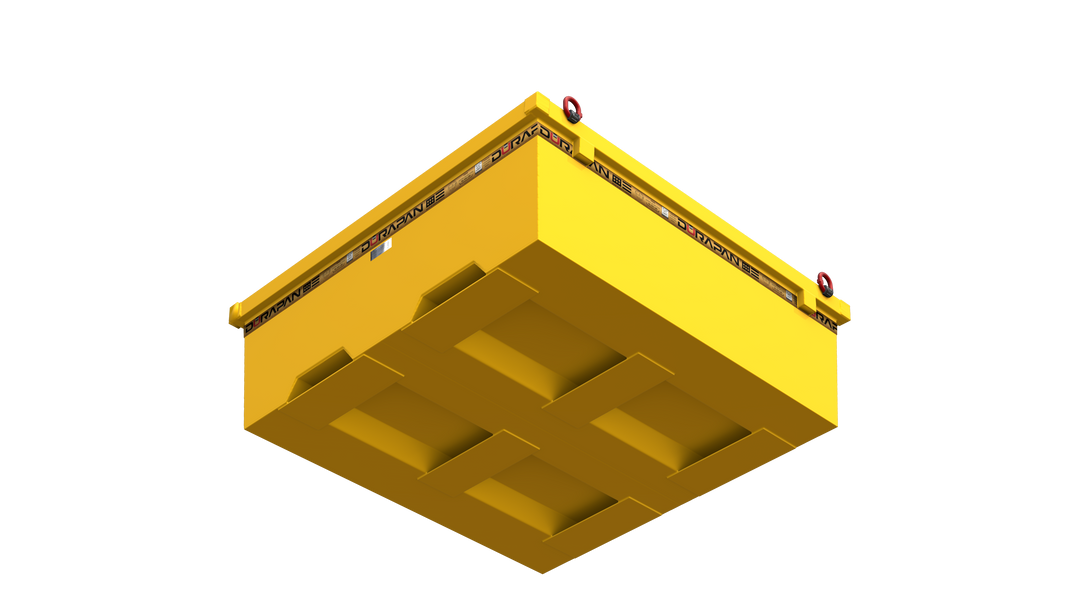

TWO-WAY XL UNIVERSAL FORKLIFT POCKETS

Our engineered two-way XL fork pockets outperform other options.  Generously sized at 8”W. x 3”H. X ¼”@ 52” OD.

ARMORED ENERGY-ABSORBING STEEL BUMPERS

Prevents punctures caused by inserting misaligned forks.  MAX pan’s are equipped with four (4) 8” x ¼” welded steel bumper pads that absorb and redirect impact force preventing punctures.

Inter-stackable Design:

Our innovative inter-stackable feature allows for easy and efficient storage, transport, and handling of multiple pans, maximizing space and convenience on the job site.

Watertight Construction:

The DURAPAN® SUPER HEAVY LIFT CRANE SERIES OSHA 600 is watertight, ensuring containment and prevention of leaks or spills, protecting your job site and the environment.

ENGINEER CERTIFIED LEAKPROOF STEEL CONTAINMENT

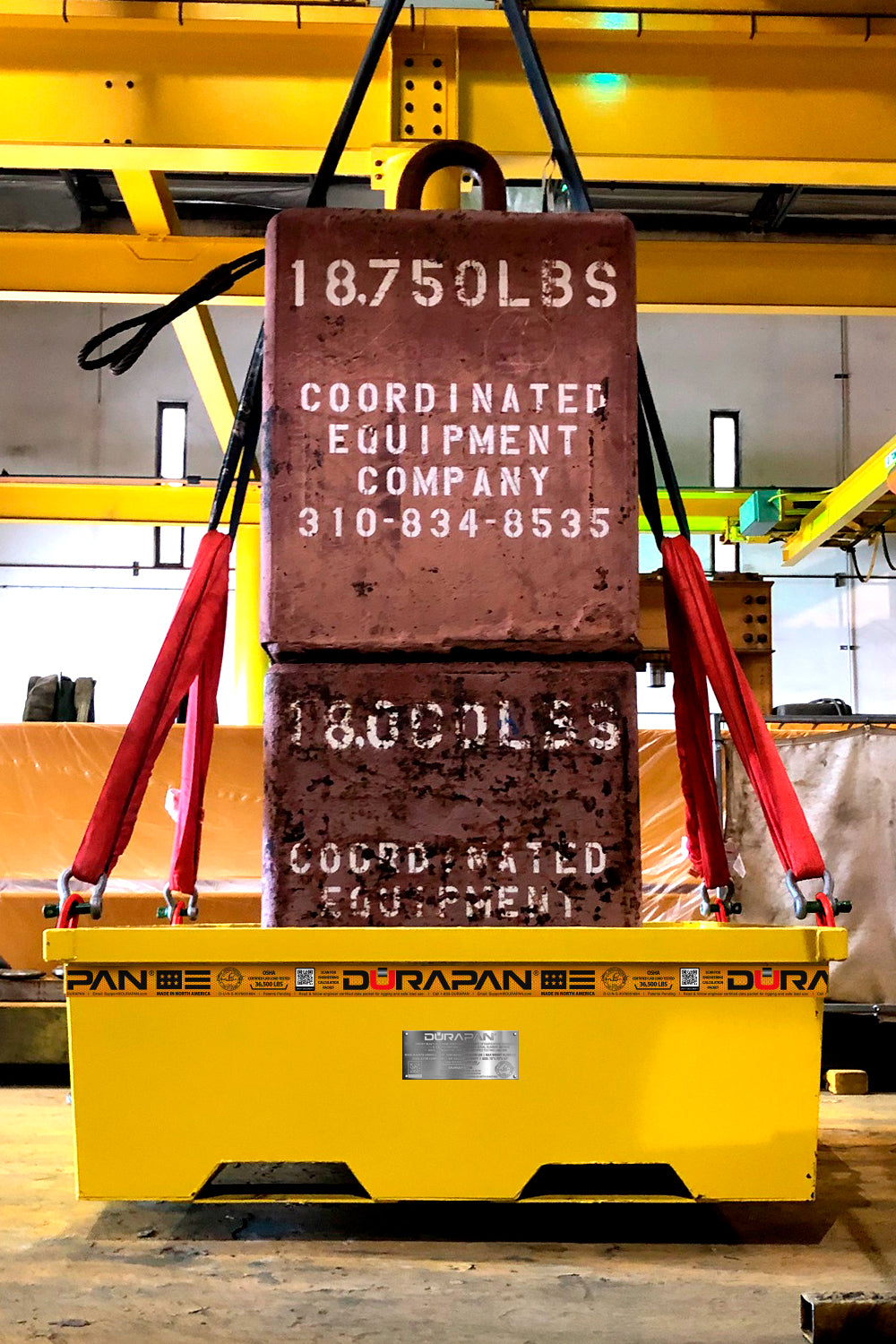

 O.S.H.A Certified Lab Load Tested With 36,500 Lbs. Link to load test certificate

 Engineering Calculation Packet Available upon Request Link to enter email and request

 High Strength 1/4” Steel Floors

 High Strength 7 Gauge Steel Walls

 Hand Welded Continuous Seams

 11” Wide Angled Inclosed Forklift Pockets Spaced 40” to OD

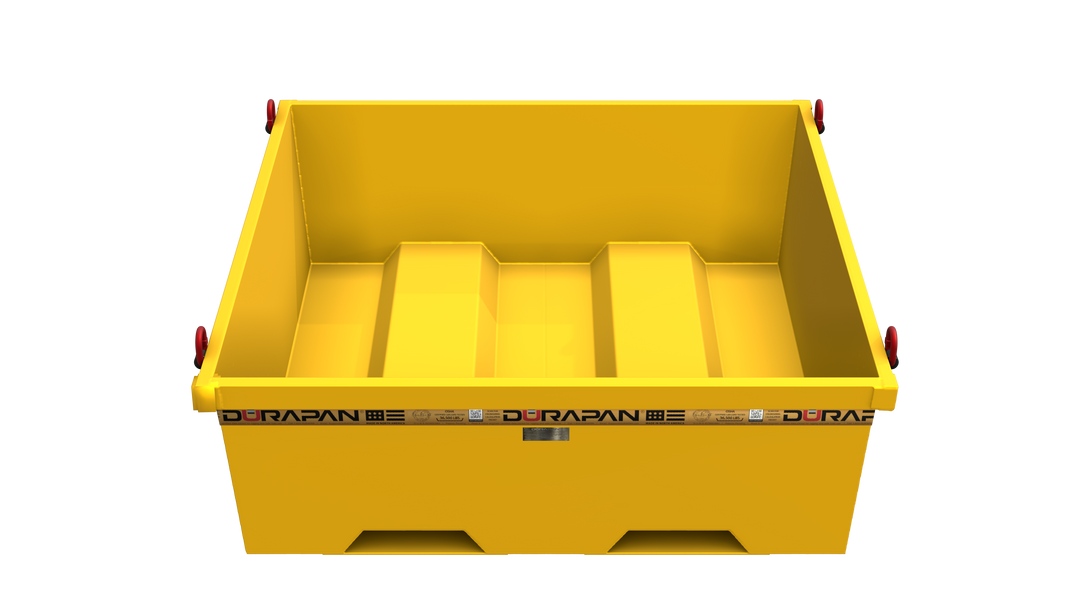

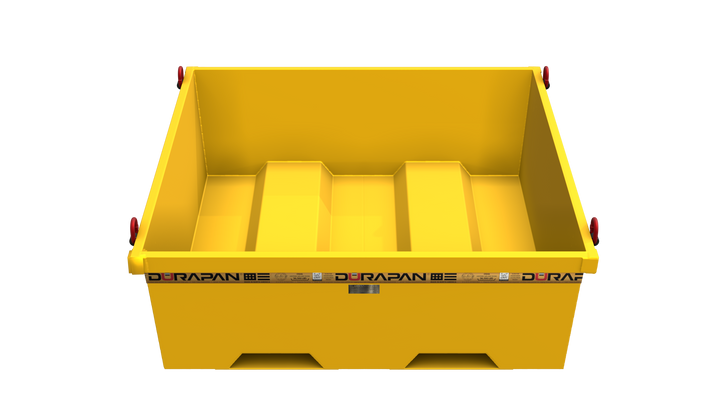

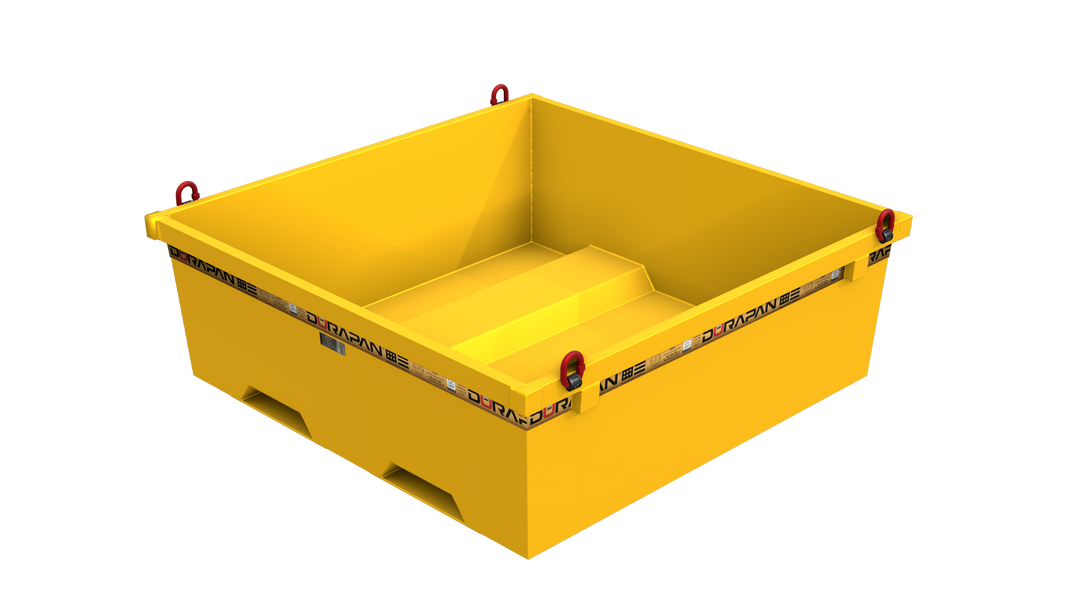

 Engineered Stealth design floor & tapered interior walls prevent materials from sticking

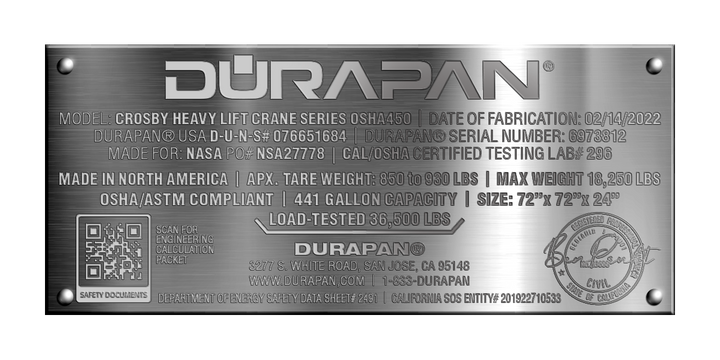

 Serialized metal Equipment Identification plated riveted to front panel of each pan.

 Serialized metal Equipment safety use plate attached to each pan

 Painted Safety Yellow

 Easy Release Nesting Spacers allow inter-stacking of multiple pans and prevent sticking.

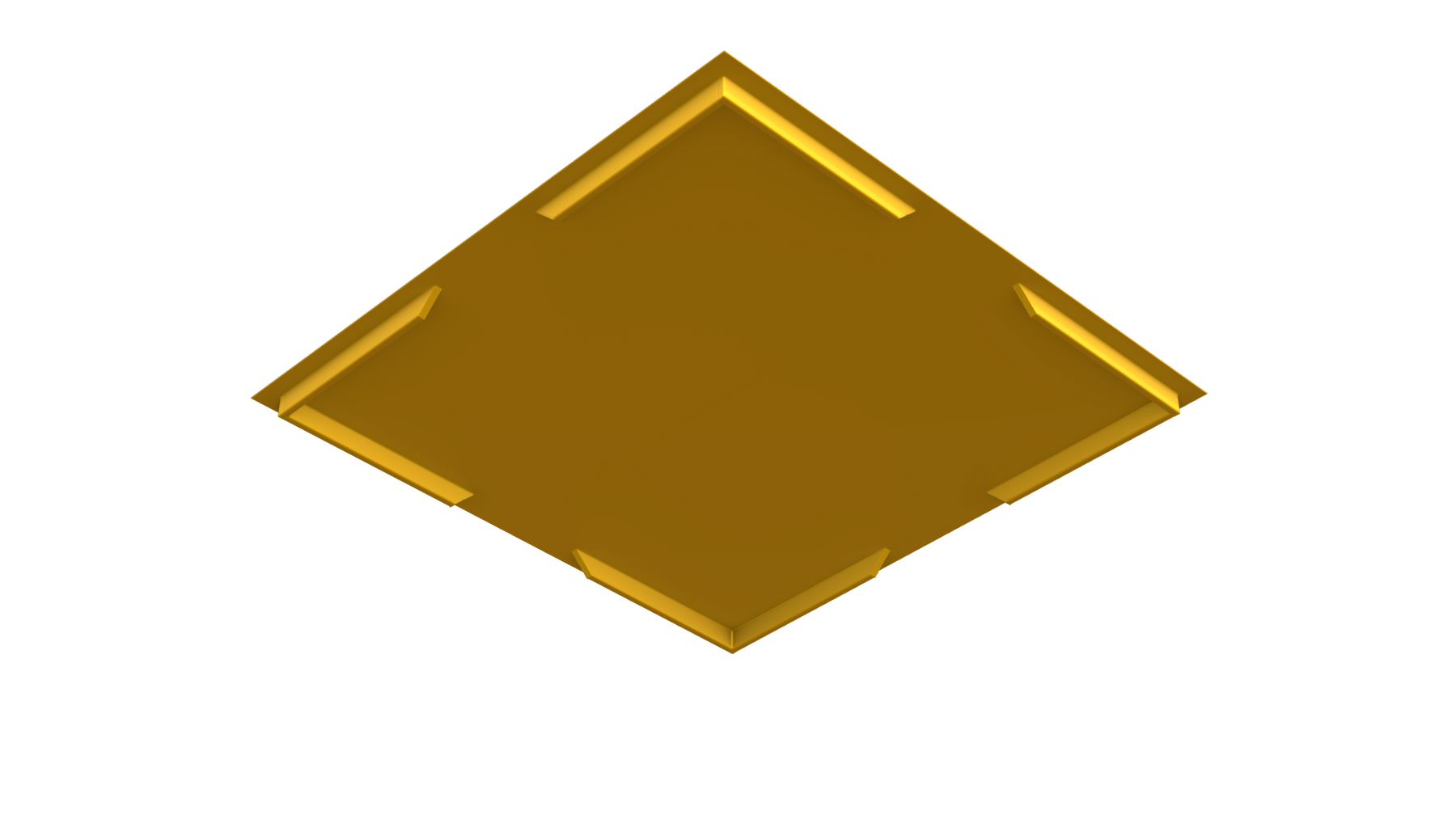

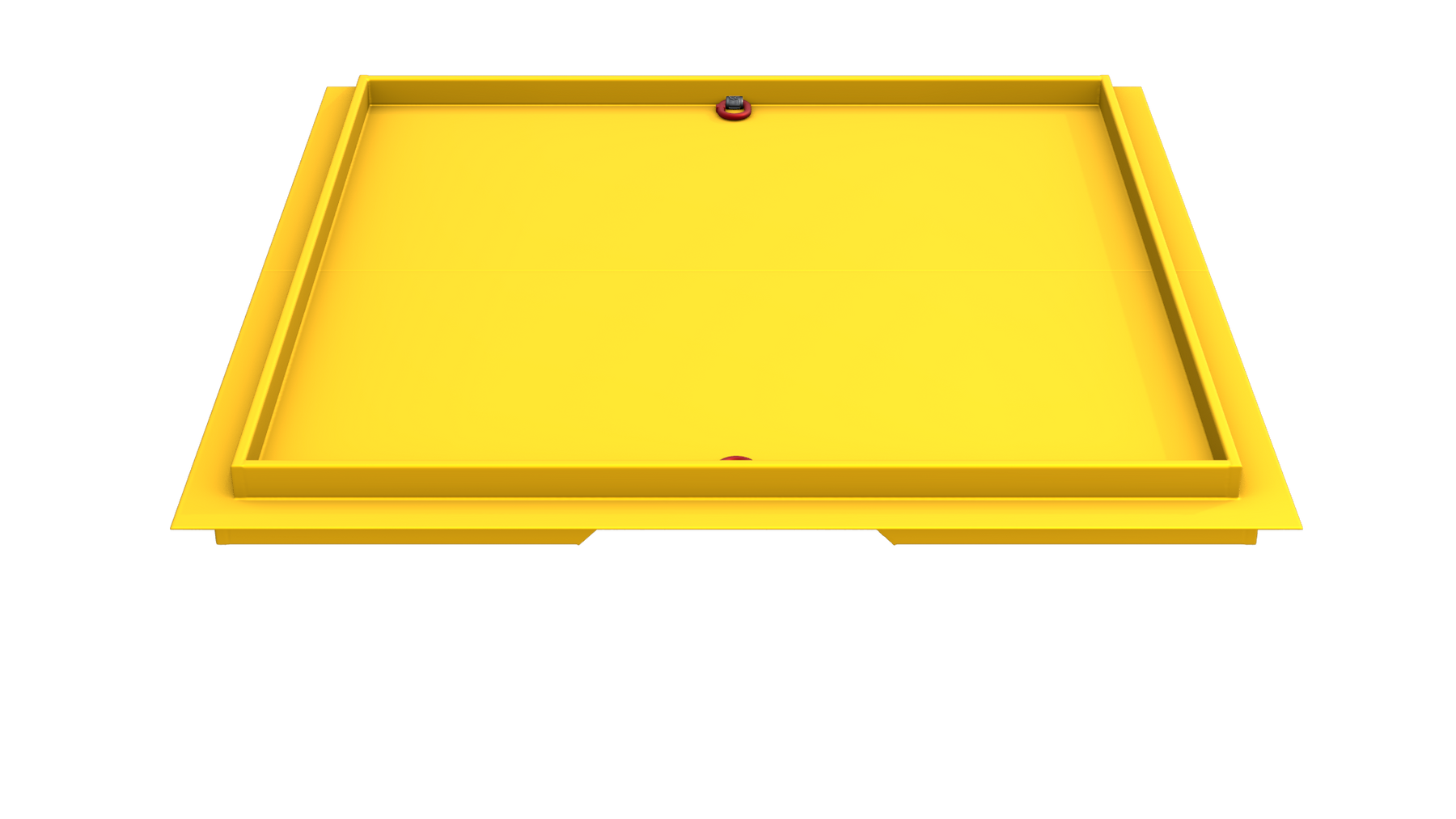

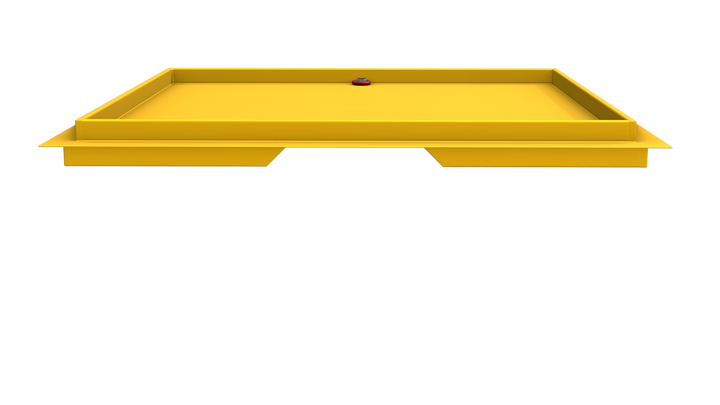

Steel Watertight Lids with Nitrile seal available.
